Jacobsen AR-522 Maintenance Manual

63
> Change from previous revision
2
2
3
5
5
6
7
8
9
10
12
11
11
13
4
4
4
4
4
4
4
4
4
4
4
1
10
AR-522
Item Part No. Qty. Description Serial Numbers/Notes
1
339985 2 Fitting, 8-10 Straight
2 339989 3 Fitting, 10-10 Straight
3 340009 1 Fitting, 10-10 Straight
4 340070 11 Fitting, 10-10 90°
5 340030 2 Fitting, 8-10 45°
6 4129015 2 Hose, Gear Pump to Deck Valve
7 4137588 1 Hose, LH Front Motor to Deck Valve
8 4137382 1 Hose, Front Motor to Front Motor
9 4137589 1 Hose, RH Front Motor to Deck Valve
10 4129595 2 Hose, Rear Motor to Deck Valve
11 4137383 2 Hose, Center Motor to Rear Motor
12 4129597 1 Hose, Deck Valve to Return Tube
13 REF 1 Return Tube See 18.1

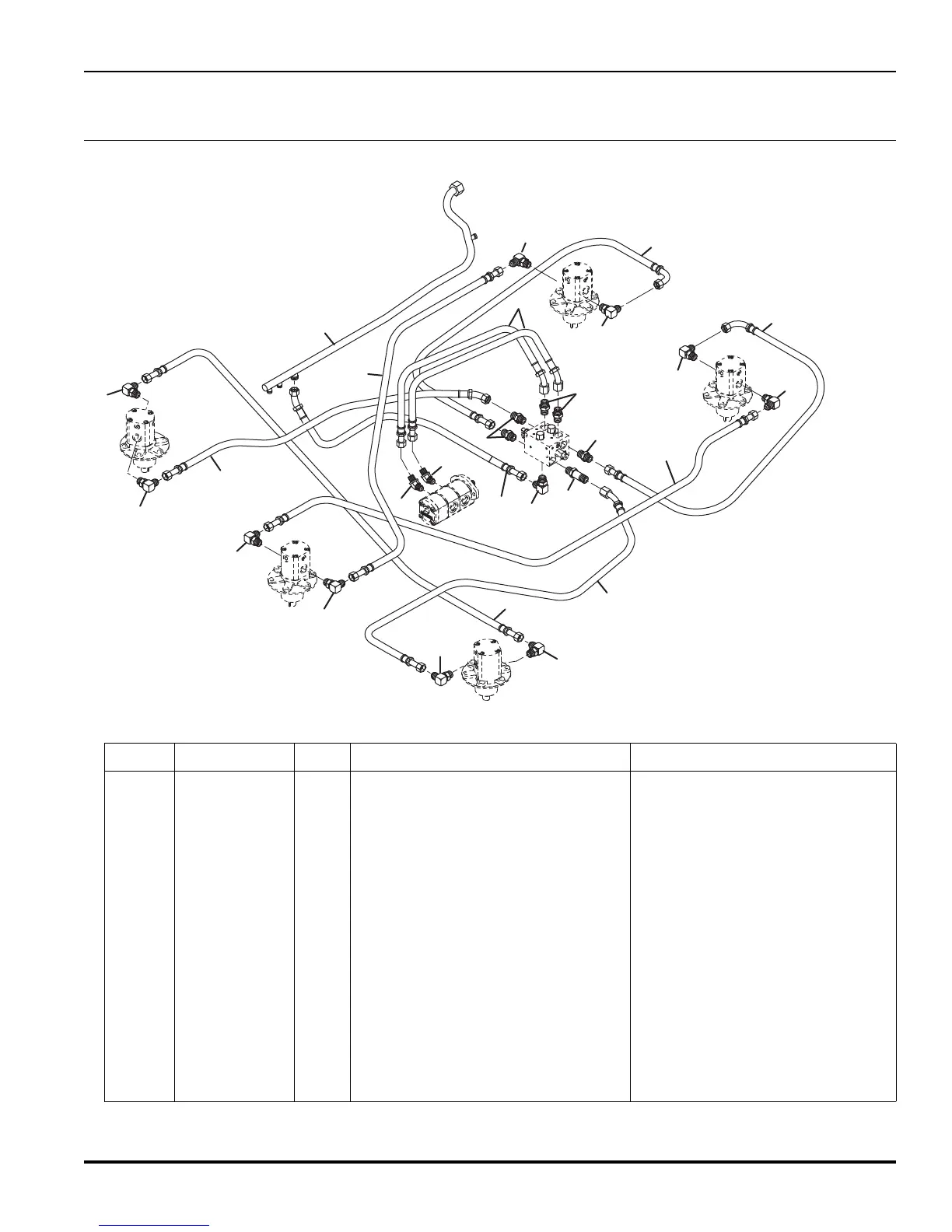

20.1 Deck Hydraulics
Serial No. All
