Jacobsen AR331 - 5.2.H.23 INPUT;OUTPUT DIAGNOSTICS (I;O DIAGNOSTICS)

en-36
5 CONTROLS

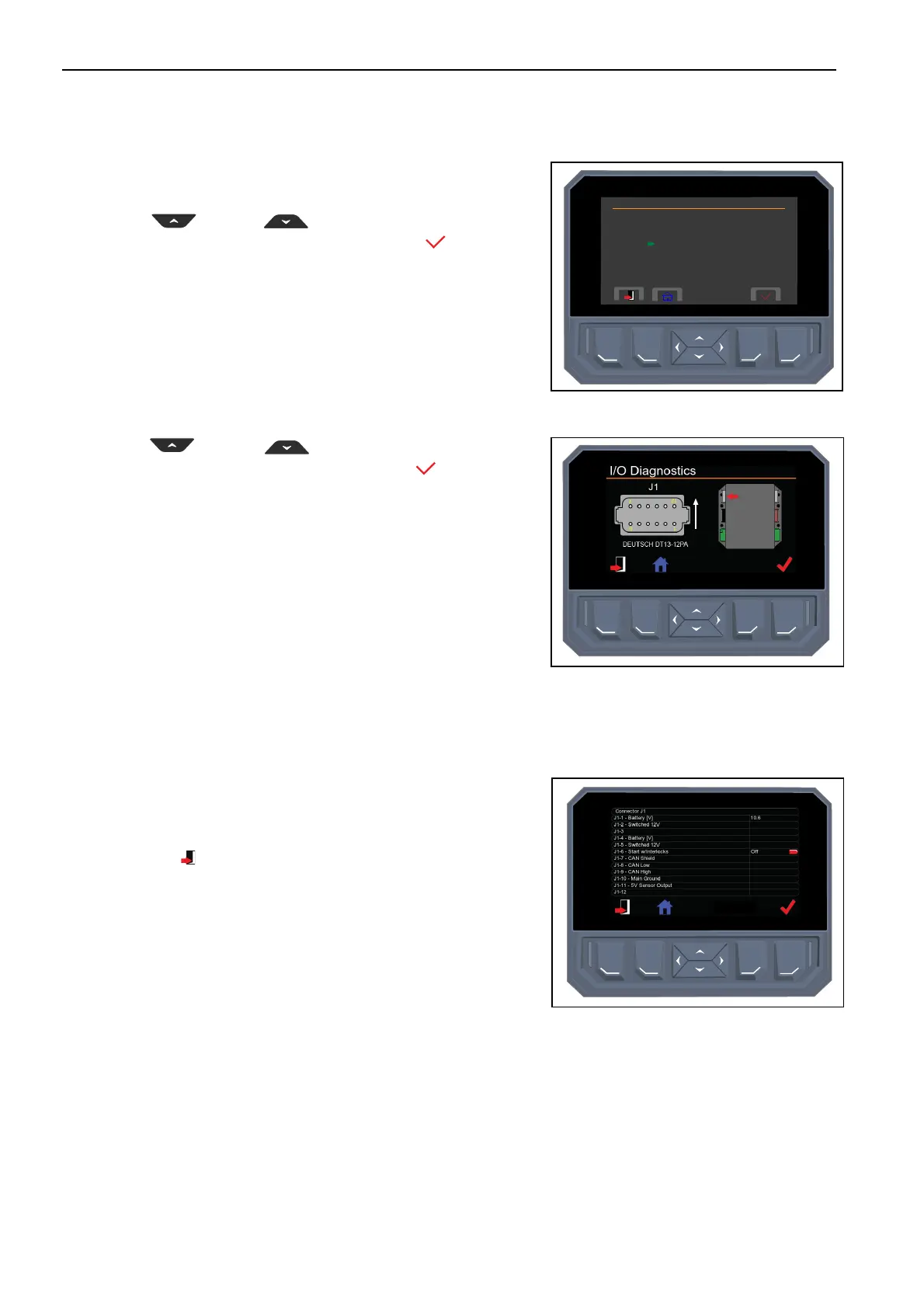

5.2.H.23 INPUT/OUTPUT DIAGNOSTICS (I/O DIAGNOSTICS) _______________________
Turn the key switch to the “Run” position, navigate to the service
menu.
Use the up or down arrow keys until the green arrow
is next to I/O Diagnostics. Press the select button to select I/O
Diagnostics.
Use the up or down arrow keys until the red arrow is
next to the connector. Press the select button to select the
required connector.
5.2.H.24 CONNECTOR J1 ____________________________________________________
Turn the key switch to the “Run” position, navigate to the service
menu.
Information shown for illustration purposes only.
Press the button to return to I/O Diagnostic Menu.
Service Menu
Fault Log
Time Until Service
Vehicle Status
I/O Diagnostics
I/O Diagnostics
J1
J2
J3
J4
J5
J6
1
6
7
12
DEUTSCH PN
DT13-12PA
Connector J1
J1-1 Battery Voltage
12.7 V
J1-2 Key Switch IGN
J1-3
J1-4 Battery
J1-5
J1-6 Start With Interlocks
J1-7 CAN Shield
J1-8 CAN Low
J1-9 CAN High
J1-10 Main Ground
J1-11 5V Sensor Output
J1-12
O
12.7 V
