Jacobsen AR331 - Page 137

en-37
5 CONTROLS

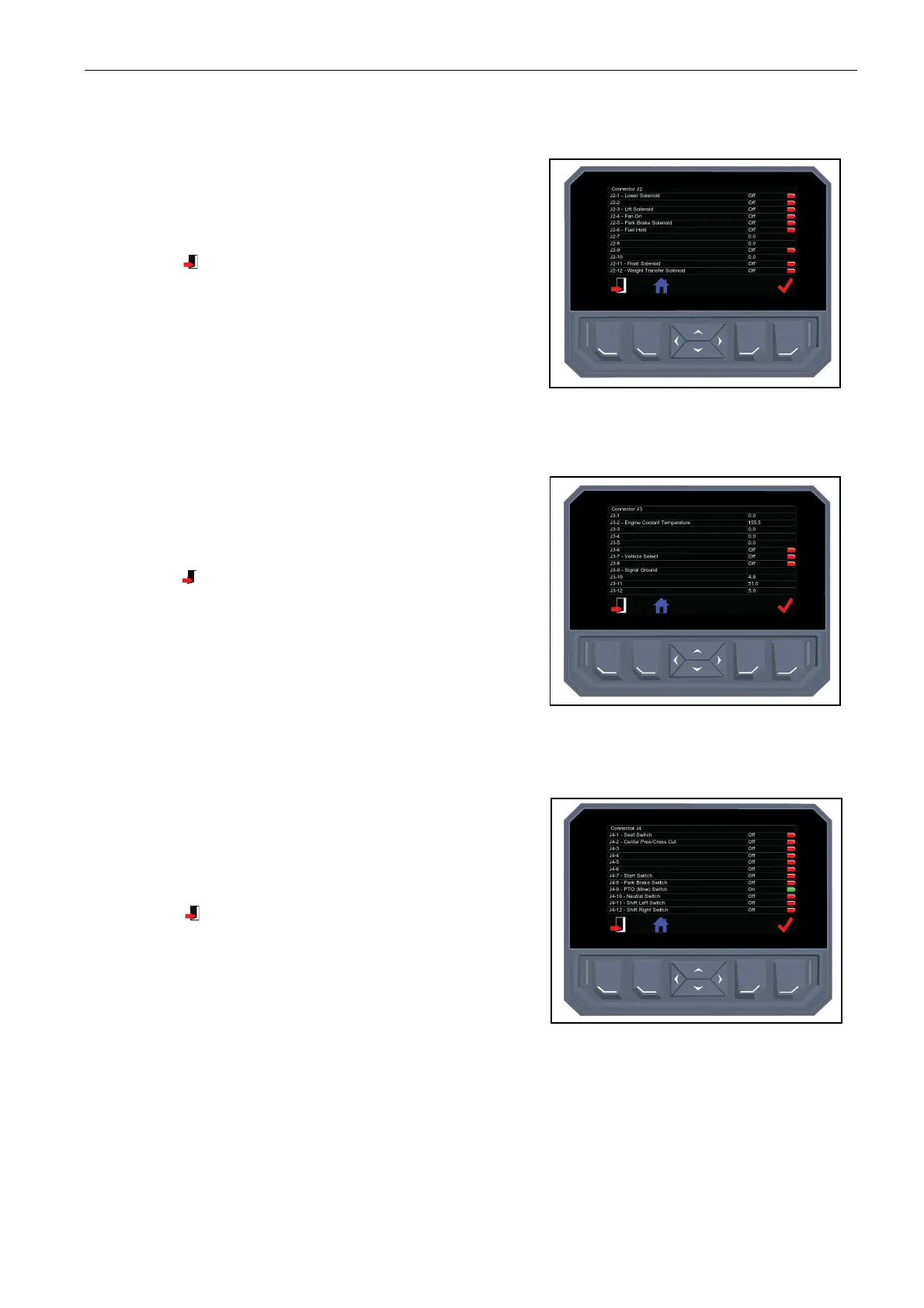

5.2.H.25 CONNECTOR J2 ____________________________________________________
Turn the key switch to the “Run” position, navigate to the service
menu.
Information shown for illustration purposes only.
Press the button to return to I/O Diagnostic Menu.
5.2.H.26 CONNECTOR J3 ____________________________________________________
Turn the key switch to the “Run” position, navigate to the service
menu.
Information shown for illustration purposes only.
Press the button to return to I/O Diagnostic Menu.
5.2.H.27 CONNECTOR J4 ____________________________________________________
Turn the key switch to the “Run” position, navigate to the service
menu.
Information shown for illustration purposes only.
Press the button to return to I/O Diagnostic Menu.
Connector J2
J2-1 Lower Sol
J2-2 Not Used
J2-3 Lift Sol
J2-4 Fan Relay
J2-5 Park Brake Sol
J2-6 Fuel Hold
J2-7 Not Used
J2-8 Not Used
J2-9 Not Used
J2-10 Not Used
J2-11 Float Sol
J2-12 Weight Transfer Sol
ON
ON
ON
O
ON
O
O
Connector J3
J3-1 Not Used
J3-2 Engine Temp
J3-3 Not Used
J3-4 Not Used
J3-5 Not Used
J3-6 Not Used
J3-7 Program Select
J3-8 Not Used
J3-9 GND
J3-10 Not Used
J3-11 Not Used
J3-12 Not Used
O
ON
Connector J4
J4-1 Seat Switch
J4-2 Crosscut Switch
J4-3 Not Used
J4-4 Not Used
J4-5 Not Used
J4-6 Not Used
J4-7 Start Signal Input
J4-8 Not Used
J4-9 Mow Switch
J4-10 Neutral Switch
J4-11 Sideshift Left
J4-12 Sideshift Righ
O
ON
ON
O
O
O
ON
