en-38
5 CONTROLS

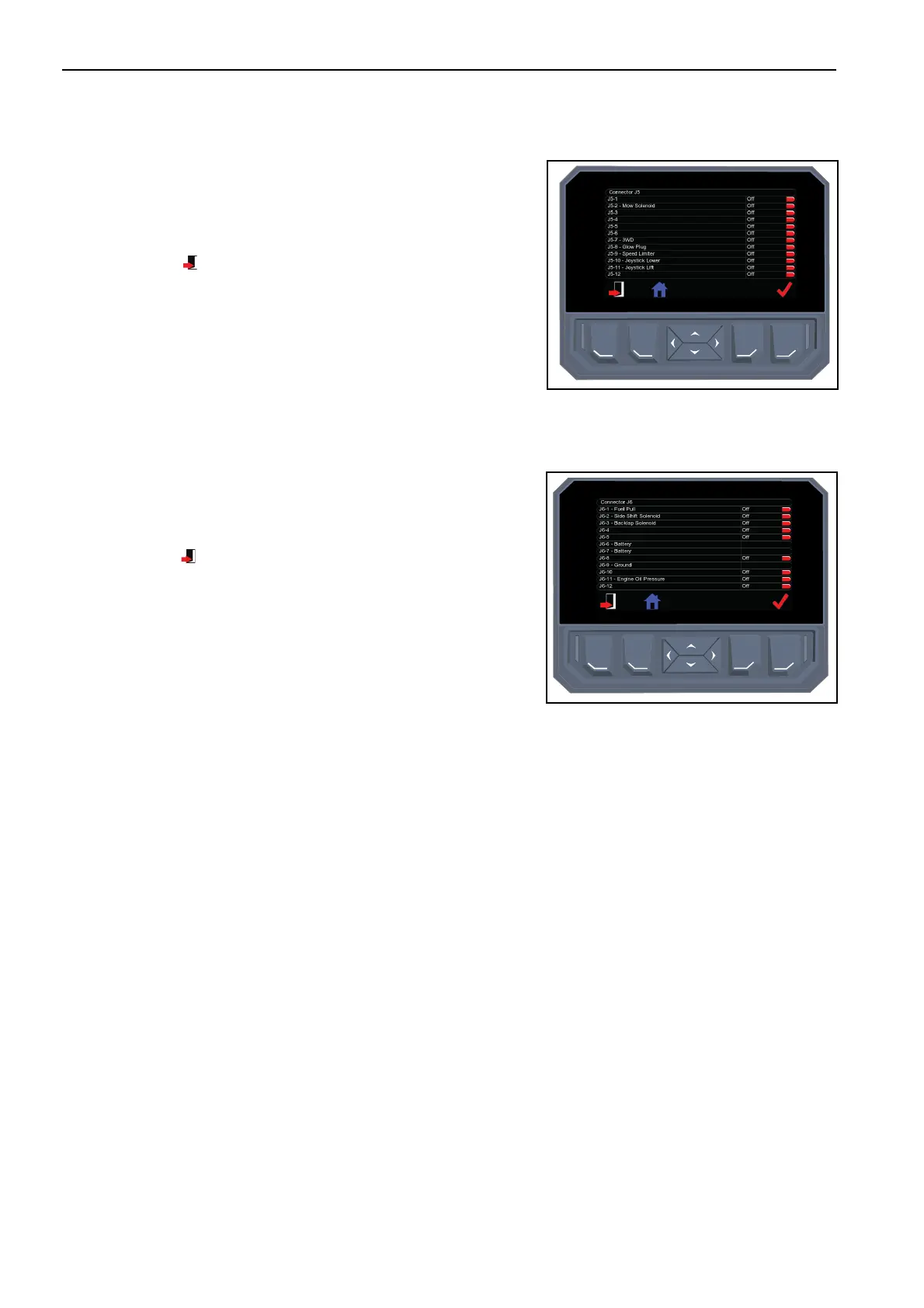

5.2.H.28 CONNECTOR J5 ____________________________________________________
Turn the key switch to the “Run” position, navigate to the Service
Menu.
Information shown for illustration purposes only.
Press the button to return to I/O Diagnostic Menu.
5.2.H.29 CONNECTOR J6 ____________________________________________________
Turn the key switch to the “Run” position, navigate to the Service
Menu.
Information shown for illustration purposes only.
Press the button to return to I/O Diagnostic Menu.
Connector J5
J5-1 Not Used
J5-2 Mow Sol
J5-3 Not Used
J5-4 Not Used
J5-5 Not Used
J5-6 Not Used
J5-7 Not Used
J5-8 Glow Plug
J5-9 Not Used
J5-10 Joystick Lower
J5-11 Joystick Lift
J5-12 Not Used
O
O
O
ON
Connector J6
J6-1 Fuel Pull
J6-2 Sideshift Sol
J6-3 Backlap Sol
J6-4 Not Used
J6-5 Not Used
J6-6 Fused B+ Input
J6-7 Fused B+ Input
J6-8 Not Used
J6-9 GND
J6-10 Not Used
J6-11 Engine Oil Pressure
J6-12 Not Used
ON
O
O
O
