GENERAL NOTE: FRONT, REAR, RIGHT HAND AND LEFT HAND REFERENCES BELOW
ARE WITH RESPECT TO AN OPERATOR AT THE CONTROLS.

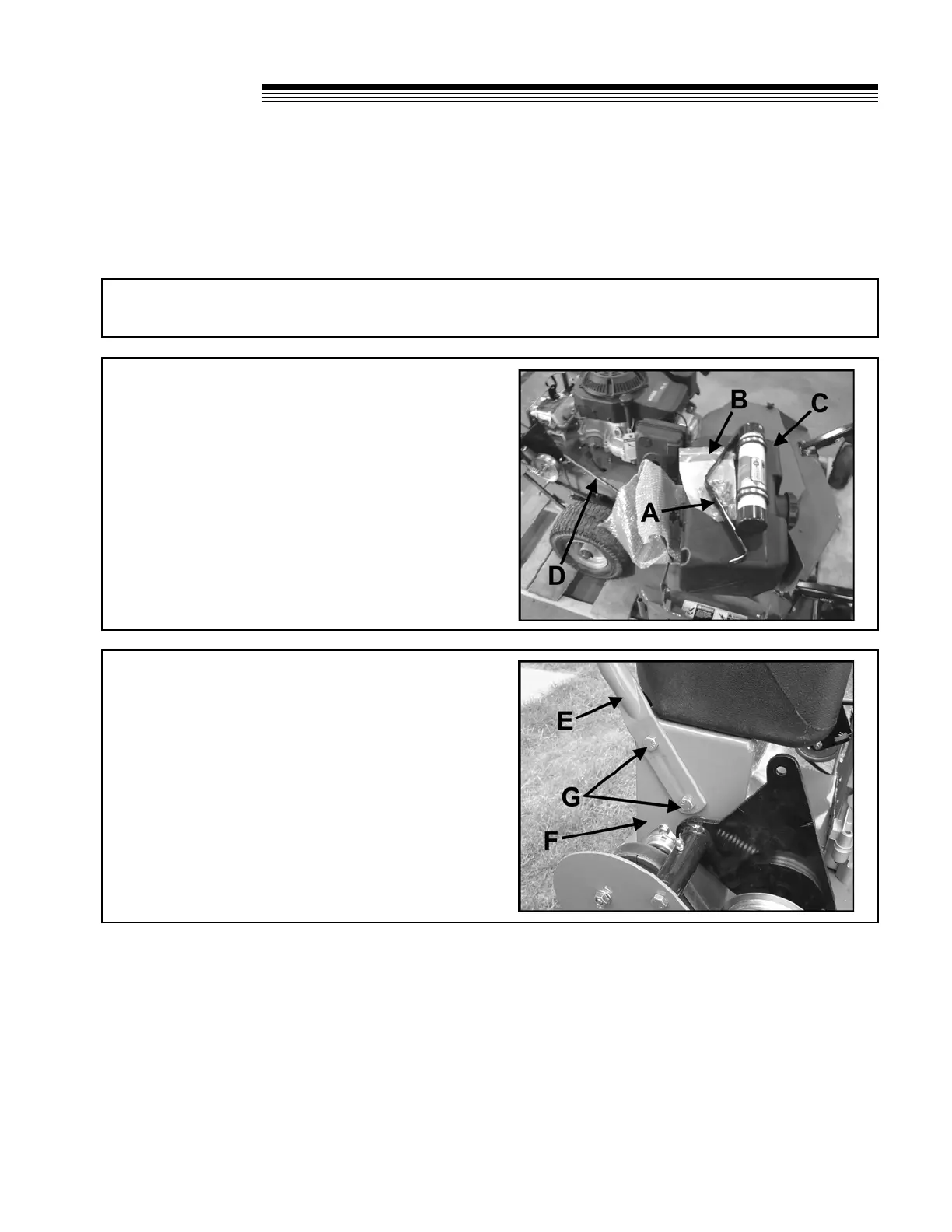

ASSEMBLY/SET-UP INSTRUCTIONS
3. Bolt the upper handle E to the lower handle F
using (4) 3/8-16X1 bolts and (4) 3/8-16 whizlock
nuts at location G on both sides as shown.
1. UNCRATE - Discard the sides and top of the crate. Remove the loose parts from the crate. Discard the
rest of the packing material.
2. Remove all tie wraps and banding. Remove
traction control rods D, gear shift lever A and
parts bag B. Set aside for later use. Remove
fuel tank C from the cutterdeck.
To Next Page
