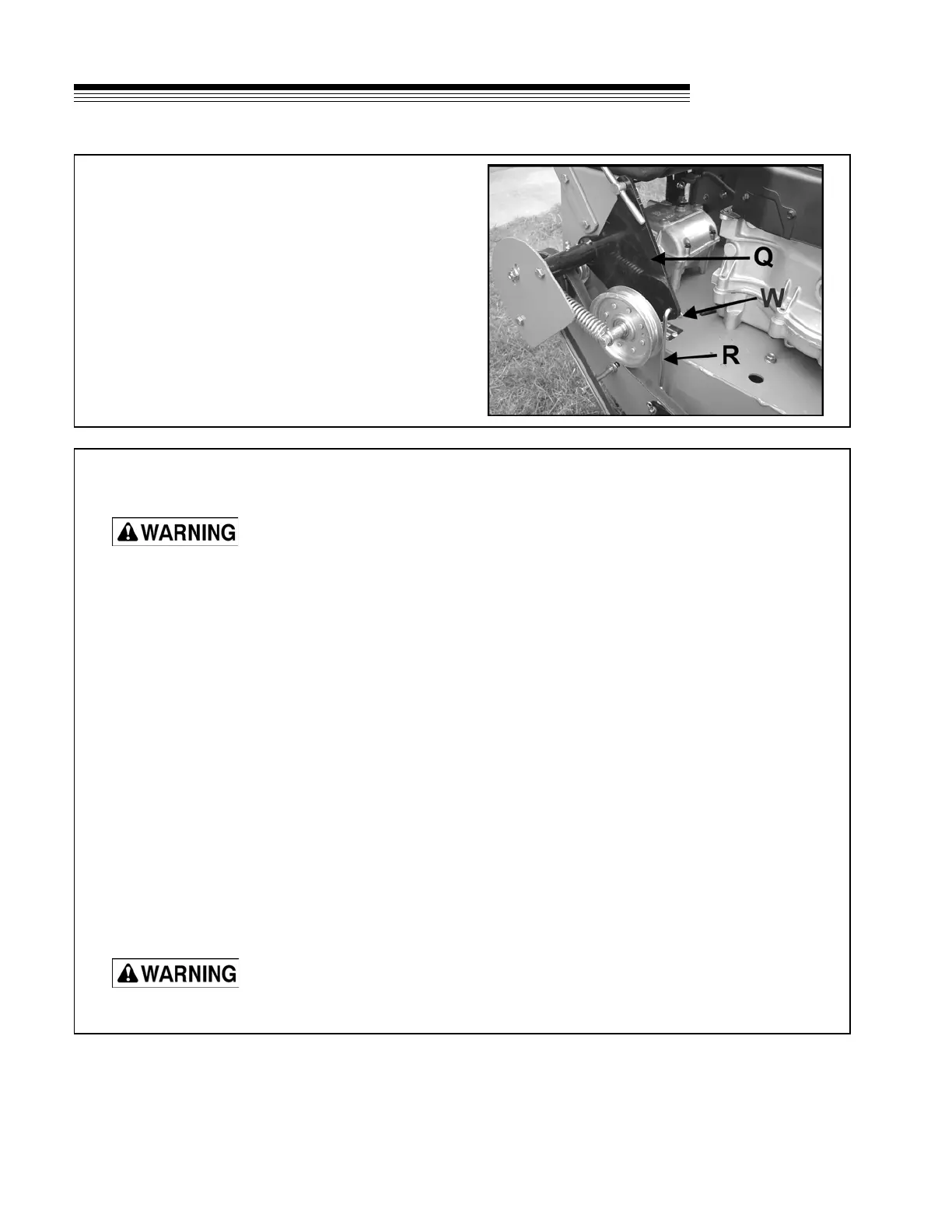

10. To adjust the brakes, remove the brake rod R
from the bottom of bellcrank Q and set the
traction control lever in the neutral position.
Adjust the brake rod by turning it in or out of the
swivel T in the brake arm until it just goes into
the hole on the bellcrank. Secure with hairpin.
NOTE: The machine should not move with the
traction control levers in the parking brake
position. If machine moves in the parking brake
position, readjust brake rod length. Verify that
machine can be moved easily when the traction
control levers are placed in the neutral position.
11. Fill engine with oil. (See engine manual for specifications.)
12. Fill fuel tank with with clean, fresh unleaded fuel.
GASOLINE IS HIGHLY FLAMMABLE!
• Fill fuel tank with good quality, clean, regular unleaded gasoline.
• Do not use hi-test fuel.
• Do not smoke.
• Do not spill fuel.
• Fill outdoors.
• Do not overfill. Fill to 1" below bottom of filler neck to allow room for expansion.
• USE A FUNNEL TO FILL GAS TANK.
13. Adjust tire pressure in drive wheels and casters to 14 psi (96 kPa).
14. Before attempting to start the mower, read and understand all sections of the Operation & Safety
manual.
NOTICE: Special setup instructions.
• Before engaging the cutterdeck, run the engine for five minutes at full RPM. This is recommended for new
engine installation to permit complete engine lubrication prior to load.
• Do not engage the cutterdeck at full throttle. Set the throttle half way between the highest and lowest
engine speed, engage the PTO switch and increase the engine speed to full before cutting.
•
Do not use this machine without an approved grasscatcher, grass discharge chute or mulching plate(s)
correctly fitted.
