ASSEMBLY/SET-UP INSTRUCTIONS

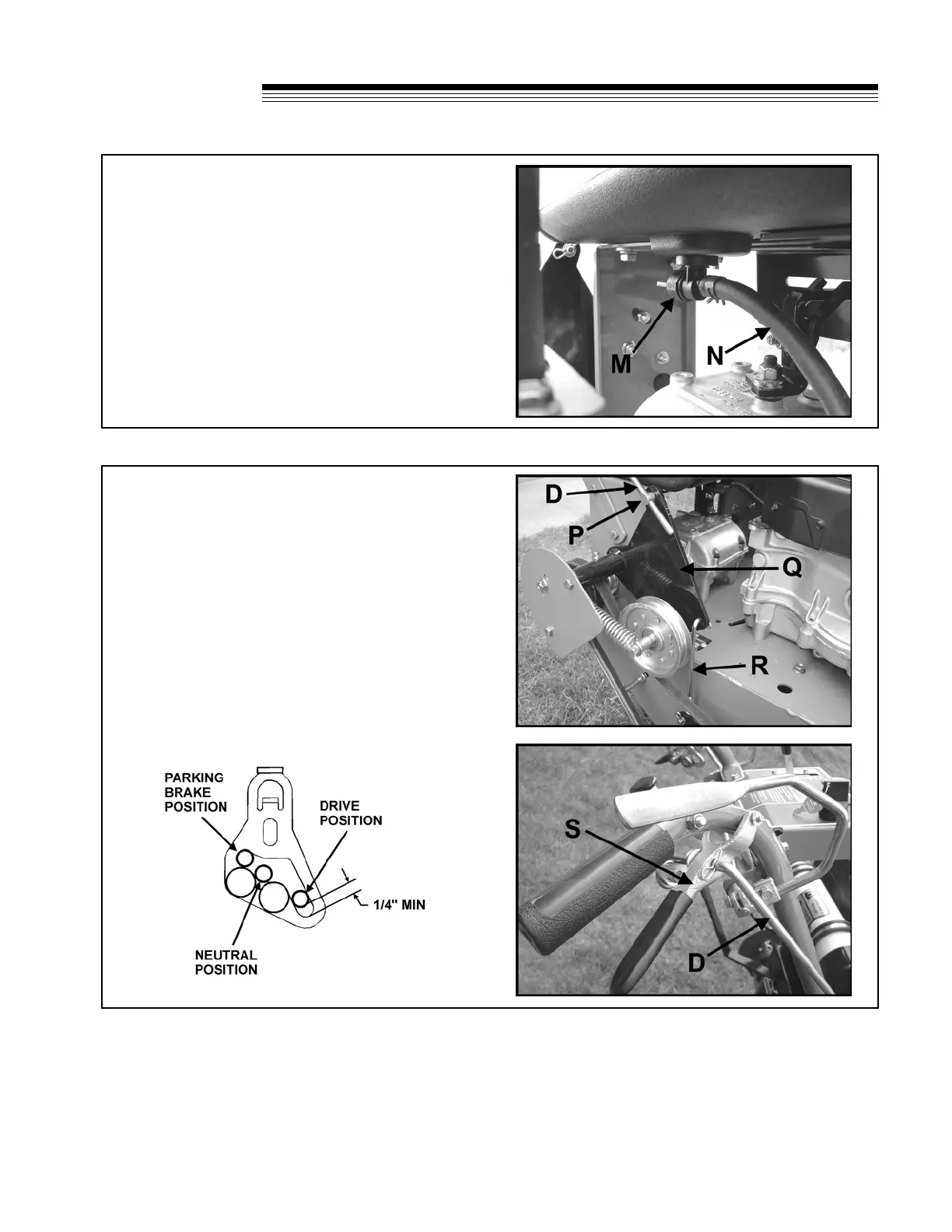

7. Remove the plug from the end of the fuel line N
and connect fuel line to the fuel tank valve M
and secure with the supplied hose clamp as
shown.
8. Attach traction control rods D by inserting the
swivel P through the upper hole in the bellcranks
Q and the other end of the traction control rods
through the traction control lever S on the
handlebar. Secure with washers and hairpins.
9. To adjust traction control rods, remove the
traction control rod swivel P and the brake rod R
from the bellcrank Q and adjust swivel up or
down the control rod so that once reinstalled
there is a 1/4" (6.35mm) gap between the
bottom of the rod and the bottom of the traction
lock with the traction lock pushed down.
