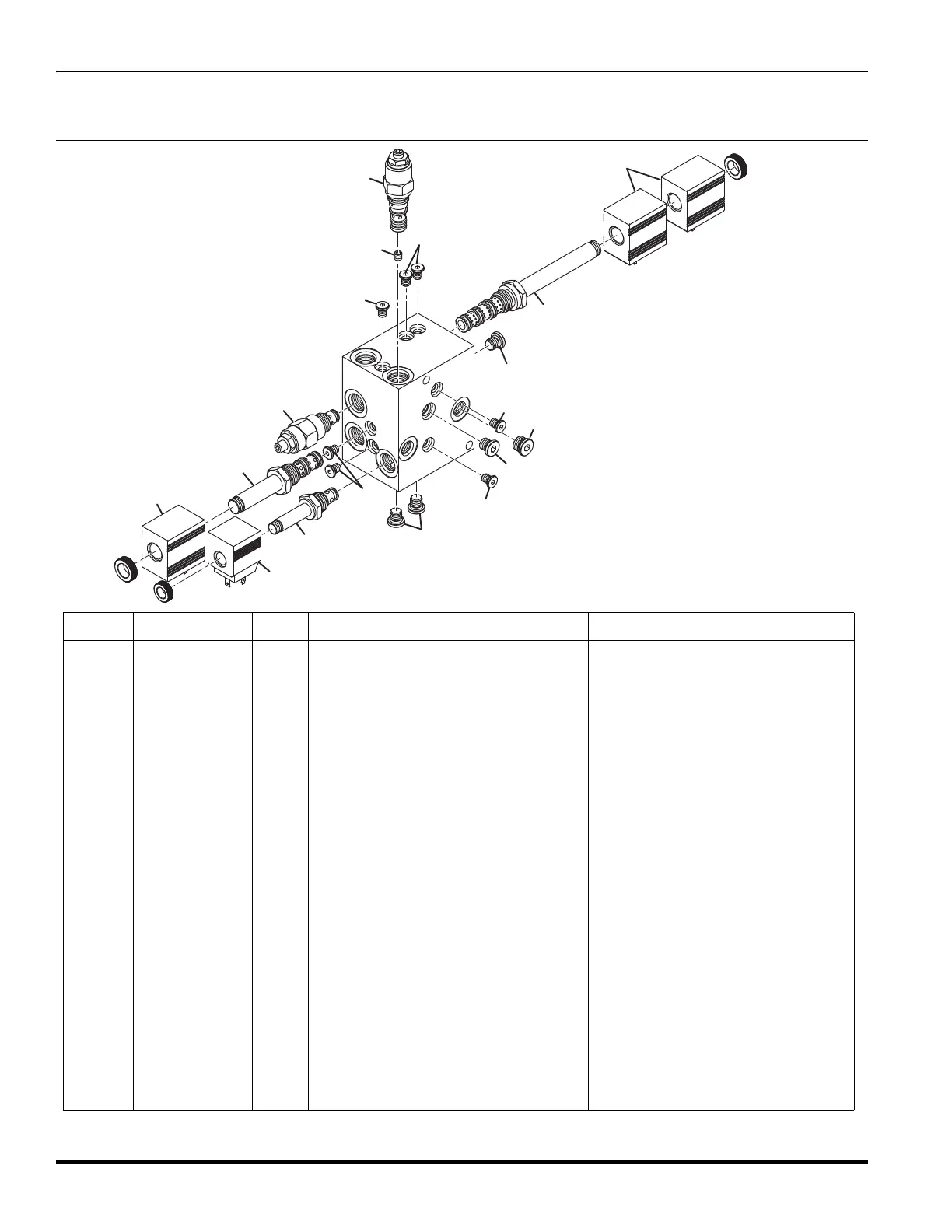

37.1 Lift-Weight Transfer Valve
Part Number 4169021
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
4171460 1 Solenoid Valve (CT1)
Includes Coil Nut
Torque to 20 Nm (14.7 ft. lb)
4171365 1 • Seal Kit
2 4171461 1 Solenoid Valve (CT6)
Includes Coil Nut
Torque to 30 Nm (22 ft. lb)
4171462 1 • Seal Kit
3 4171463 1 Relief Valve (CT3) Torque to 45 Nm (33 ft. lb)
4171464 1 • Seal Kit
4 4171465 1 Over Center Valve (CT4) Torque to 45 Nm (33 ft. lb)
4171466 1 • Seal Kit
5 4171467 1 Solenoid Valve (CT5)
Includes Coil Nut
Torque to 30 Nm (22 ft. lb)
4171468 1 • Seal Kit
6 4171444 1 Coil, 12VDC
7 4171769 3 Coil, 12VDC
8 4171770 1 Plug, 1.3 mm Orifice Torque to 2.5 Nm (1.8 ft. lb)
9 4171445 7 Plug, -2 ORB Torque to 4.5 Nm (3.3 ft. lb)
459290 1 • O-Ring, -2 ORB
10 4171446 4 Plug, -4 ORB Torque to 12.5 Nm (9.2 ft. lb)
339896 1 • O-Ring, -4 ORB
11 4171447 1 Plug, -6 ORB Torque to 20 Nm (14.7 ft. lb)
339897 1 • O-Ring, -6 ORB
1
2
3
4
5
6
7
7
8
9
9
9
9
9
10
10
10
11
To r que Coil Nuts to 3.4 Nm (2.5 ft.lb)
