95
> Change from previous revision
TR330

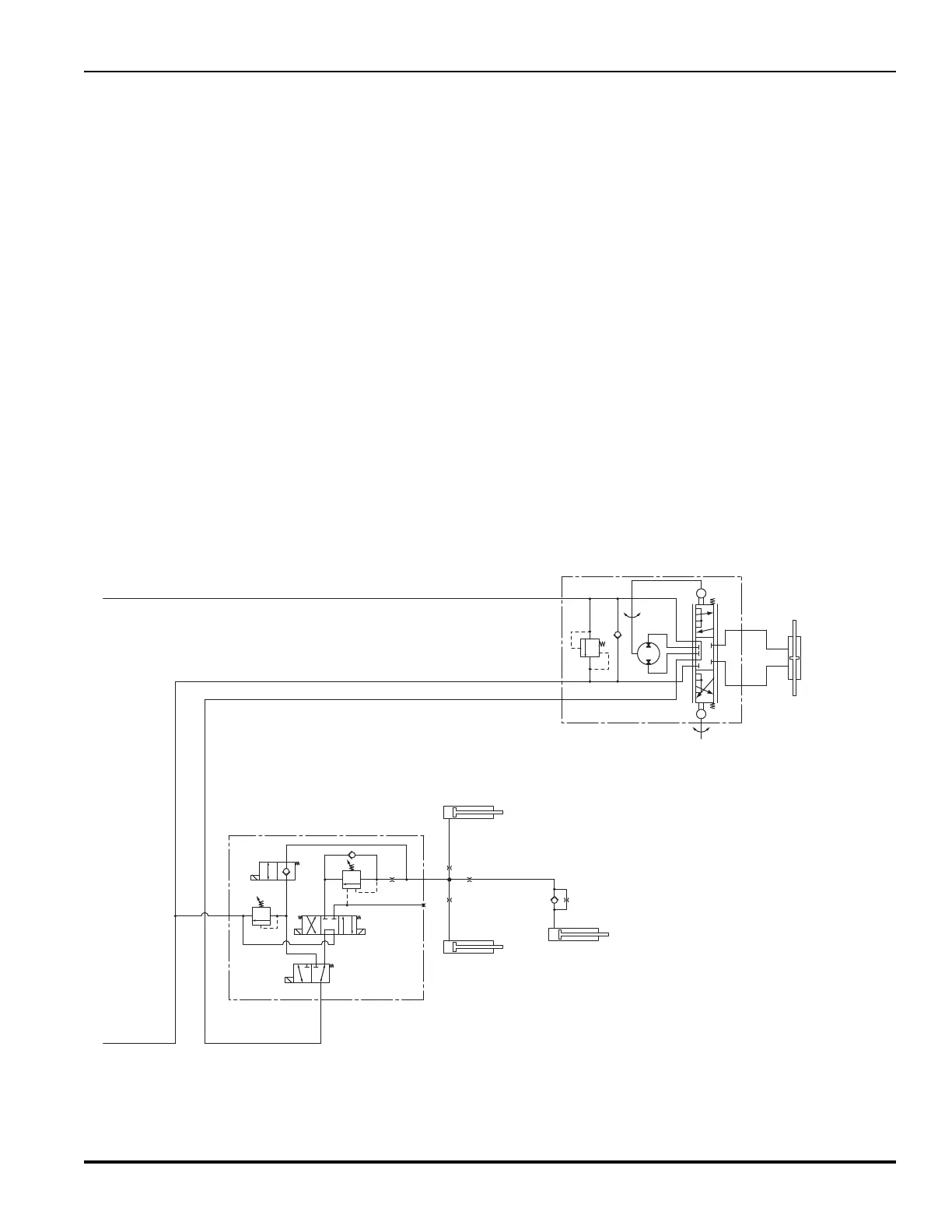

47.1 Hydraulic Schematic
3WD Option Schematic (Continued)
Serial No. All
Steering Valve
LT
L
R
P
T
E
RT
2030 psi
Left Front
Cylinder
Center
Cylinder
Right Front
Cylinder
363 psi
3045 psi
.051
SP
T
L
CR
.070
.029
.029
.029
One Way
Orifice
