en-32
5 CONTROLS
5.2.Z.21 DIAGNOSTICS __________________________________________________
Water Temp [deg C] = 60.5
Fuel Level [pct] = 100
Sys Voltage [V] = 11.8
Cutter [h] = 0.0
Software version
SW Vers - DP250: 70055160_S0181_P0131
Press the button to return to previous menu.

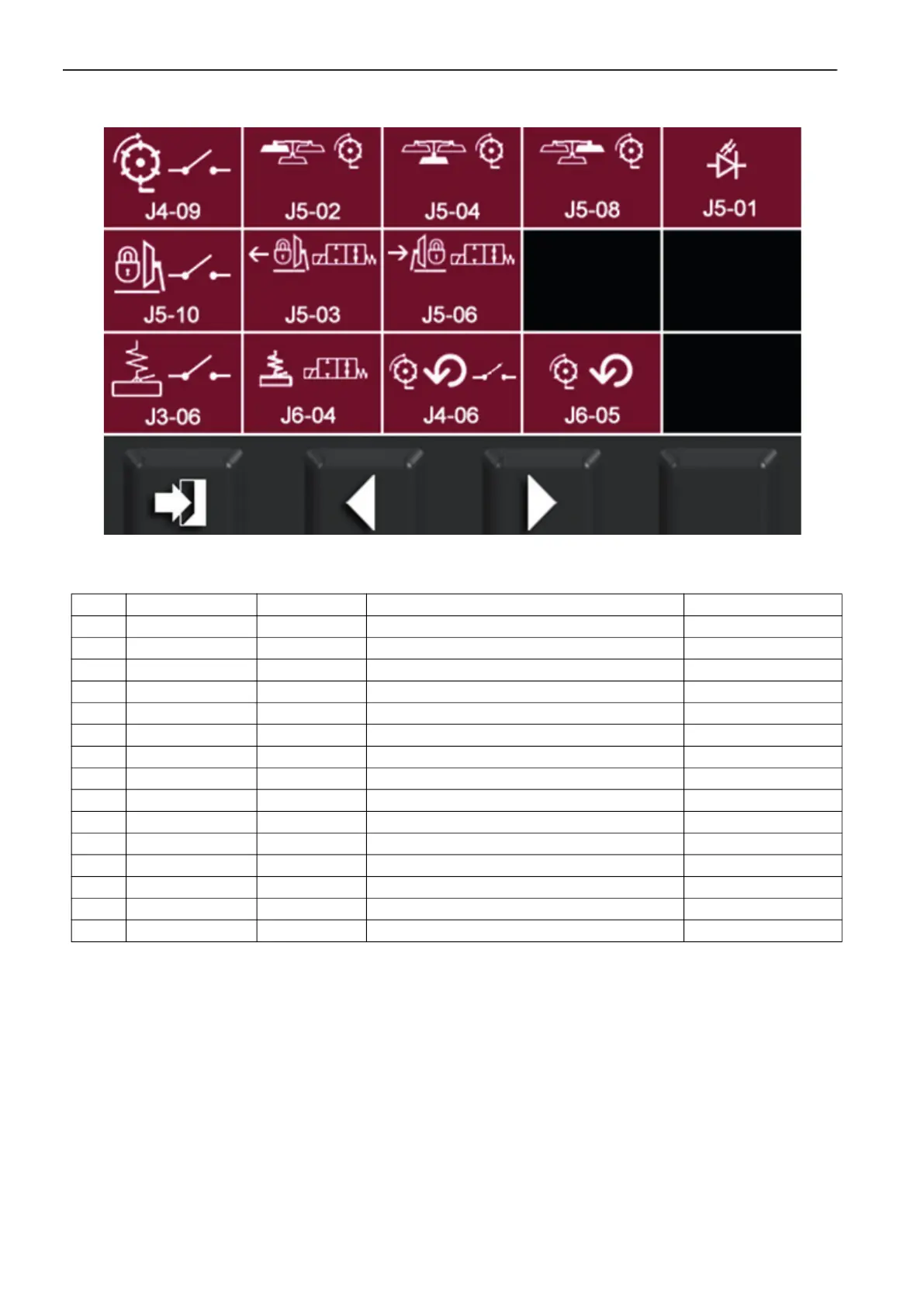

5.2.Z.22 I/O DIAGNOSTICS _______________________________________________
Select the I/O diagnostics  and accept
5.2.Z.23 CONNECTOR J1_________________________________________________
This screen shows the status of the J1 connectors
Press the left side button to return to I/O diagnostics menu.
On and OFF shown for illustration purposes only.
5.2.Z.24 CONNECTOR J2_________________________________________________
This screen shows the status of the J2 connectors
Press the left side button to return to I/O diagnostics menu.
On and OFF shown for illustration purposes only.
Diagnostics
Water Temp [deg C] = 60.5
Fuel Level [pct] = 100
Sys Voltage [V] = 11.8
Cutter [h] = 0.0
SW Vers - DP250: 70055160_S0181_P0131
Connector J1
J1-1 Battery Positive
12719
J1-2 Ignition Input
J1-3 Not Used
J1-4 Battery Positive
J1-5 Power to Gauges, Fuses, Switches and Alter
J1-6 Not Used
J1-7 CAN Shield*
J1-8 CAN LOW*
J1-9 CAN HIGH*
J1-10 Ground
J1-11 5V Sensor Power
J1-12 Not Used
O
Service Menu
Fault Log
Time Until Service
Diagnostics

I/O Diagnostics
J1939 Info
I/O Diagnostics

J1
J2
J3
J4
J5
J6
Rear
Mower
<-
Front
Mower
->
1
6
7
12
DEUTSCH PN
DT13-12PA
Connector J2
J2-1 Right Wing Lower Solenoid
OFF
J2-2 Right Wing Lift Solenoid
J2-3 Park Brake Solenoid
J2-4 Not Used
J2-5 Not Used
J2-6 Run With Interlock
J2-7 EDC Coil Forward*
J2-8 EDC Coil Reverse*
J2-9 Center Lower Solenoid
J2-10 Center Lift Solenoid
J2-11 Left Wing Lift Solenoid
J2-12 Left Wing Lower Solenoid
ON
OFF
OFF
OFF
ON
OFF
0
I
OFF
OFF
OFF
