5 CONTROLS

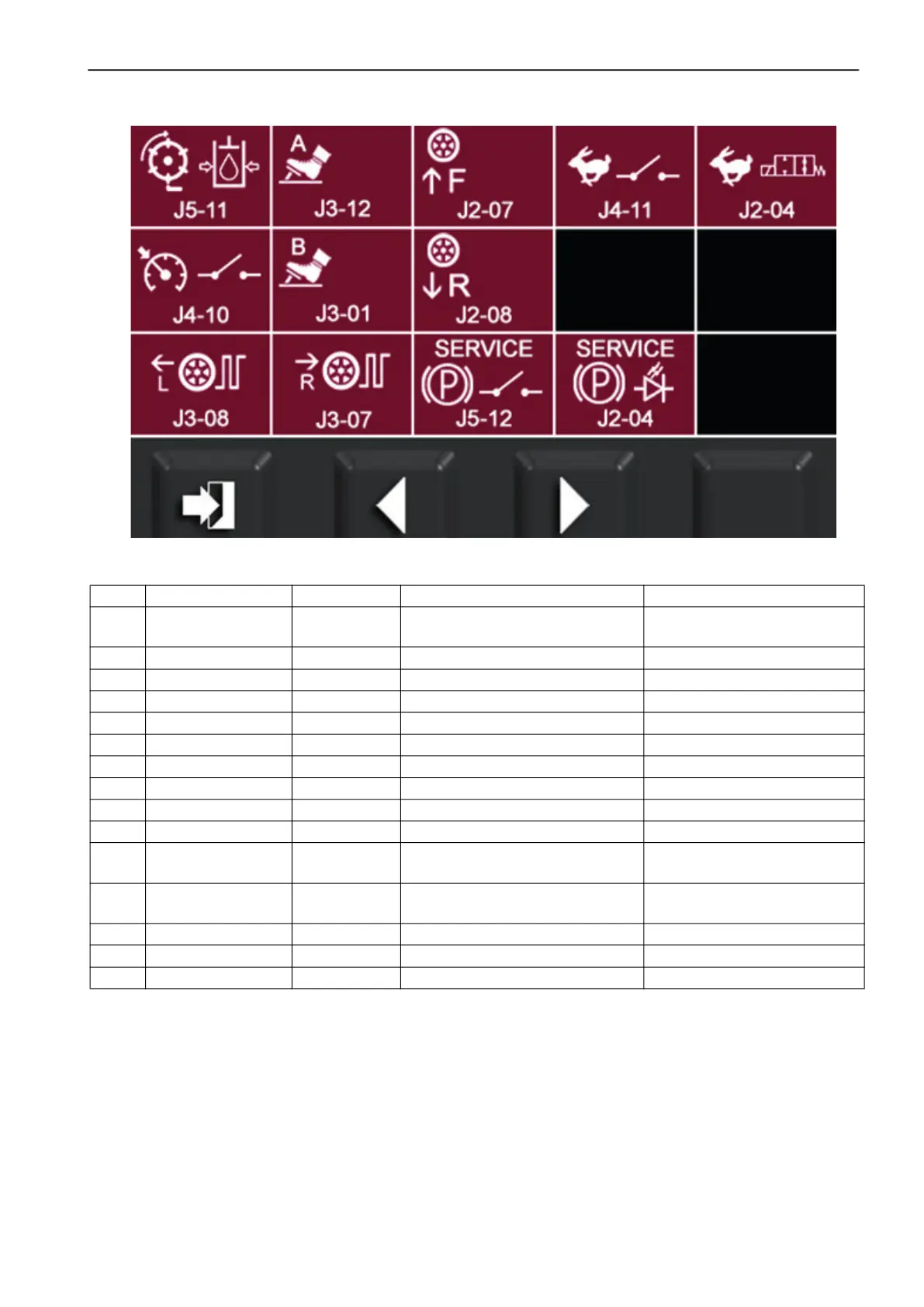

5.2.Z.25 CONNECTOR J3 _________________________________________________
This screen shows the status of the J3 connectors
Press the left side button to return to I/O diagnostics menu.
On and OFF shown for illustration purposes only.
5.2.Z.26 CONNECTOR J4 _________________________________________________
This screen shows the status of the J4 connectors
Press the left side button to return to I/O diagnostics menu.
On and OFF shown for illustration purposes only.
5.2.Z.27 CONNECTOR J5 _________________________________________________
This screen shows the status of the J5 connectors
Press the left side button to return to I/O diagnostics menu.
On and OFF shown for illustration purposes only.
5.2.Z.28 CONNECTOR J6 _________________________________________________
This screen shows the status of the J6 connectors
Press the left side button to return to I/O diagnostics menu.
On and OFF shown for illustration purposes only.
Connector J3
J3-1 Traction Pedal Signal 2
O
J3-2 Not Used
J3-3 Right Lift/Lower Input
J3-4 Center Lift/Lower Input
J3-5 Left Lift/Lower Input
J3-6 Weight Transfer Switch
J3-7 Right Hand Wheel Speed Sensor
J3-8 Left Hand Wheel Speed Sensor
J3-9 Signal Ground
J3-10 Engine TPS*
J3-11 Not Used
J3-12 Traction Pedal
OFF
ON
ON
O
O
O
O
O
O
O
Connector J5
J5-1 Center Proximity LED
J5-2 Left Wing Mow Solenoid
J5-3 Left Transport Lock Solenoid
J5-4 Center Mow Solenoid
J5-5 Raise Enable Solenoid
J5-6 Right Transport Lock Solenoid
J5-7 Reverseing Alarm
J5-8 Right Wing Mow Solenoid
J5-9 Inhibit DPF Regeneration
J5-10 Transport Lock Switch
J5-11 Cutting Pressure Sensor
J5-12 Not Used
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Connector J4
J4-1 Seat Switch Sensor
J4-2 Right Proximty Lift Sensor
J4-3 Left Proximity Lift Sensor
J4-4 Center Proximity Lift Sensor
J4-5 Hydraulic Oil Level Sensor
J4-6 Not Used
J4-7 Ignition Start
J4-8 Park Brake Switch
J4-9 Mow Switch
J4-10 Cruise Control Switch
J4-11 Not Used
J4-12 Not Used
OFF
ON
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
OFF
ON
Connector J6
J6-1 Start With Interlock
J6-2 Push Left Hand Solenoid
J6-3 Push Right Hand Solenoid
J6-4 Weight Transfer Solenoid
J6-5 Backlap Solenoid
J6-6 Starter Power
J6-7 Battery Positive
J6-8 Force DPF Regeneration*
J6-9 Ground
J6-10 Charge Filter Switch
J6-11 Not Used
J6-12 Engine Neutral Signal
O
O
O
O
O
ON
ON
ON
O
