en-32
5 CONTROLS

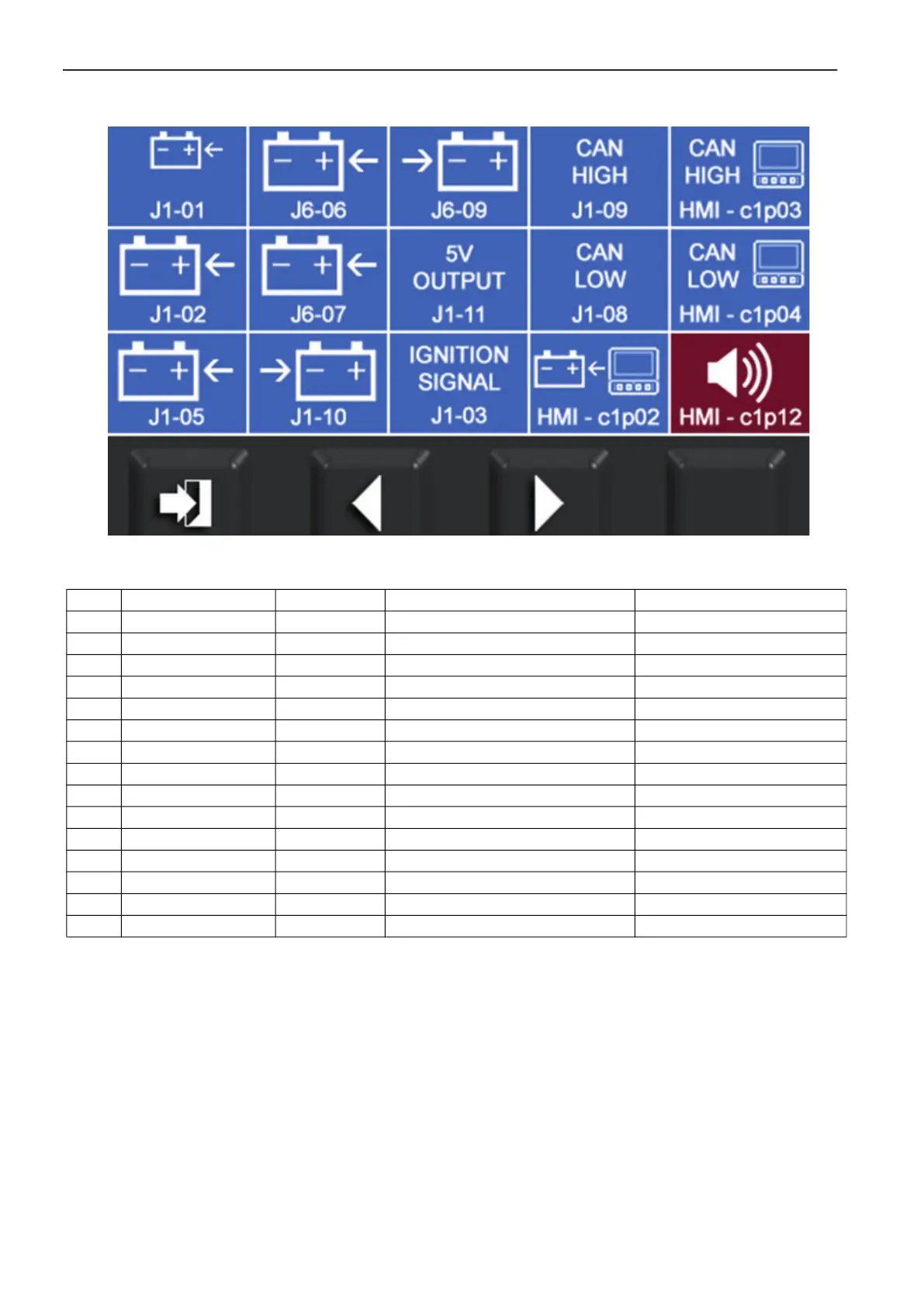

Main Controller Miscellaneous Pins
Ref # Module Pin Number Function Note
1 Main Controller J1-01 Battery Positive
2 Main Controller J6-06 Starter Power
3 Main Controller J6-09 Battery Negative
4 Main Controller J1-09 CAN High
5 HMI c1p03 CAN High
6 Main Controller J1-02 Battery Positive
7 Main Controller J6-07 Battery Positive
8 Main Controller J1-11 5V Sensor Output
9 Main Controller J1-08 CAN Low
10 HMI c1p04 CAN Low
11 Main Controller J1-05 Battery Positive
12 Main Controller J1-10 Battery Negative
13 Main Controller J1-03 Ignition Signal
14 HMI c1p02 Battery Positive
15 HMI c1p12 Alarm Buzzer Output
To Next Page
