Jacobsen MR1 Series User Manual

en-59
OPERATION 6

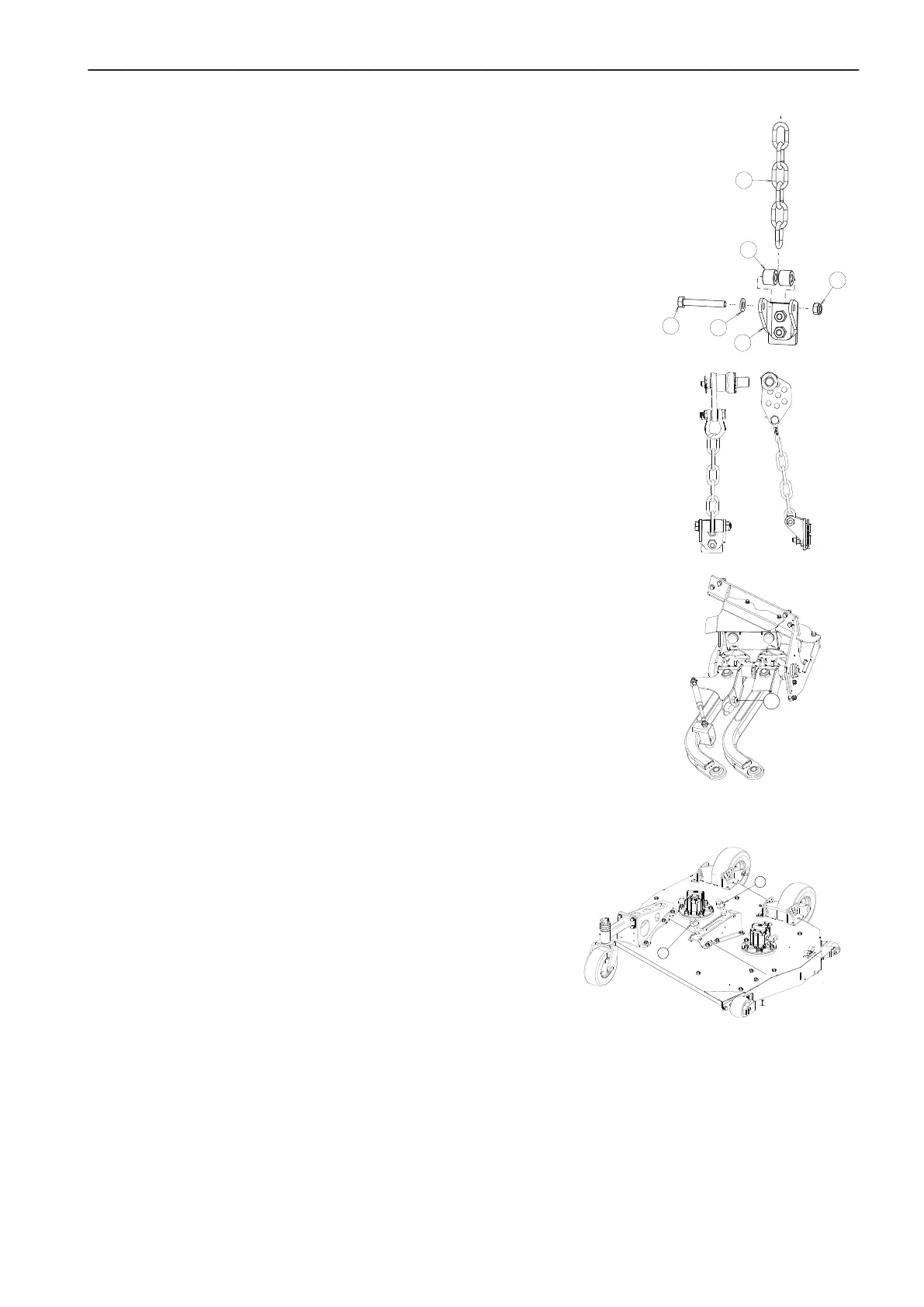

5. Fit both Bolt (11) and Washer (16) through the first hole of the Rear
height of cut Bracket (6). Install the height of cut Chain Spacer (10) on
to Bolt (11) followed by the Chain link (19). Make sure the chain does
not pull. fit the second height of cut Chain Spacer (10) to the Rear
height of cut Bracket (6).
6. Repeat the procedure for other wing deck.
7 The chain should run in a straight line, as shown.
8. If the chain is not straight adjust the pre-tension bolt (A).
Check Wing Deck Chain Tension
1. Put a 27 mm spacer below the deck shell at the side where the new
height of cut Brackets are installed.
2. Make sure the caster wheels are set to the lowest height of
cut before you start.
3. If the rear chain is slack, the serrated plate will have to be
moved lower in the serrated slot.
4. Remove the 27mm spacer below the deck.
5. Repeat the procedure for other wing deck.
A
2
6
10
11
16
19
A
A
27mm
