6 OPERATION
Height Of Cut chain Set Up MP653XC only
1. Make sure the hydraulic hoses are plugged. Start the engine and lower the lift arms (A), stop the engine
and remove the ignition key.
2. Move the deck into position and move the ball joints over bolts in bridge (B). Fasten with M16 Nuts.
3. Set the 2 outer caster wheels (B) to the lowest height of cut (use decals on the decks).
4. Make sure the hydraulic hoses are plugged. Start the engine and lift the wing units, stop the engine and
remove the ignition key.

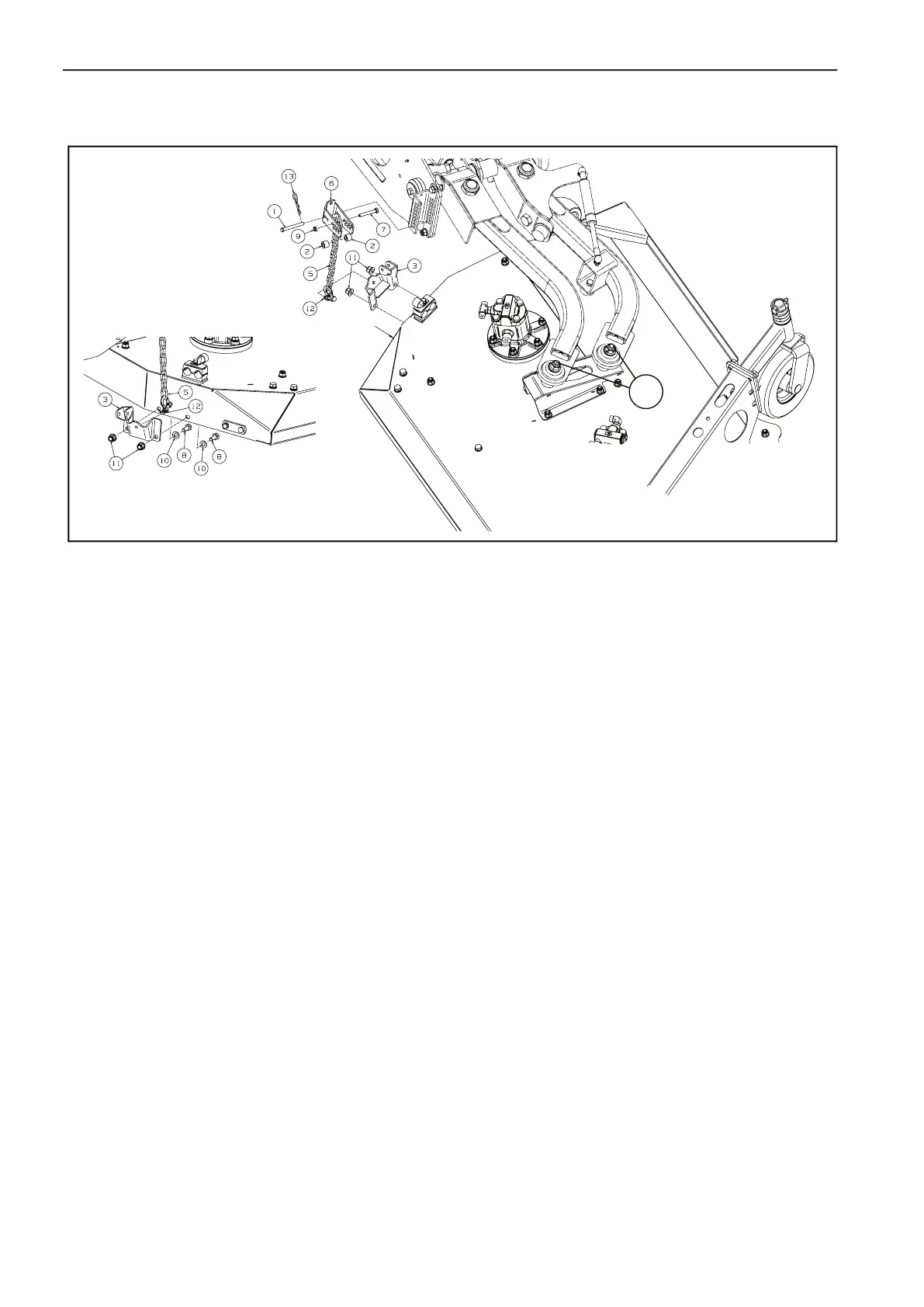

5 Fit Anti Mohawk Lower Bracket item 3 onto deck using two screws item 8, two washers item10 and two
nuts item 11. See View ‘B’
6 Fit Adjustable Bracket item 6 in the lowest hole in the Bracket on the Nelly Frame using Pin tem 1 and
secure using R-Clip item 13.
7 Fit Height of Cut Chain item 5 onto Anti Mohawk Bottom Bracket item 3. Only fit the Split Pin item 12
when all adjustments are complete.
8 Take last link of Height of Cut Chain item 5 and fit into centre most hole of Adjustable Bracket item 6
using Bolt item 7, Spacer item 2 and Nut item 9 assemble loosely. Make sure chain is not twisted.
9. Make sure the hydraulic hoses are plugged. Start the engine and lower the lift arms (A), stop the engine
and remove the ignition key. Check to make sue deck is level.
10. If the deck is not level, lift into the transport position and repeat steps 8 and 9 using holes above and
below to adjust accordingly. Each hole steps ± 3mm.
11. When all adjustments are complete, lower the deck to the ground.
