4 WARTUNG
D-18
4.11 WARTUNGSTABELLE ______________________________________________________
Empfohlene Überprüfungs- und Schmierintervalle.
Schmiermittel
I - SAE 10W-30, Klassifizierung API SF oder SG.
II - Lithiumfett NLGI - Güteklasse 2
III - Lubriplate®-Fett, Jacobsen-Bestell-Nr. 5001581
IV - SAE EP-140 Öl - ablassen und nachfüllen
★
-
Eine dünne Schicht auftragen
Täglich 20 50 100 300 Jährlich Schmierm.
Luftfilter................................................... I........................................ R
Brennkammer...............................................................................................................................R
Motoröl ................................................... I.................. W .......................................W..........................................
......................I
Kraftstoffleitung ......................................................................................................................................... W - 2 Jahre
Zündkerze.............................................................................................................A/W
Ventilspiel .....................................................................................................................................A
Schmierstellen (Abbildung 4C)
1 - Rolle ............................................................S................................................................................... S
....................II
2 - Höheneinstellung.............................................................. S
............................................................................................II
3 - Rechte Spindelwelle....................................S......................................................................................
.....................II
4 - Antriebsrolle ................................................S......................................................................................
.....................II
5 - Kupplungswellen-Lager ......................................................................................................................S
...................II
6 - Kupplungswelle...................................................................................................................................S
...................III
7 - Kupplungsstifte....................................................................................................................................
...................III
★
8 - Antriebsnabe ........................... ...................S......................................................................................
.....................III
9 - Radlager ................................................................................................. ......................................... S
....................II
10 - Spindelkupplungshebel...............................S......................................................................................
.....................II

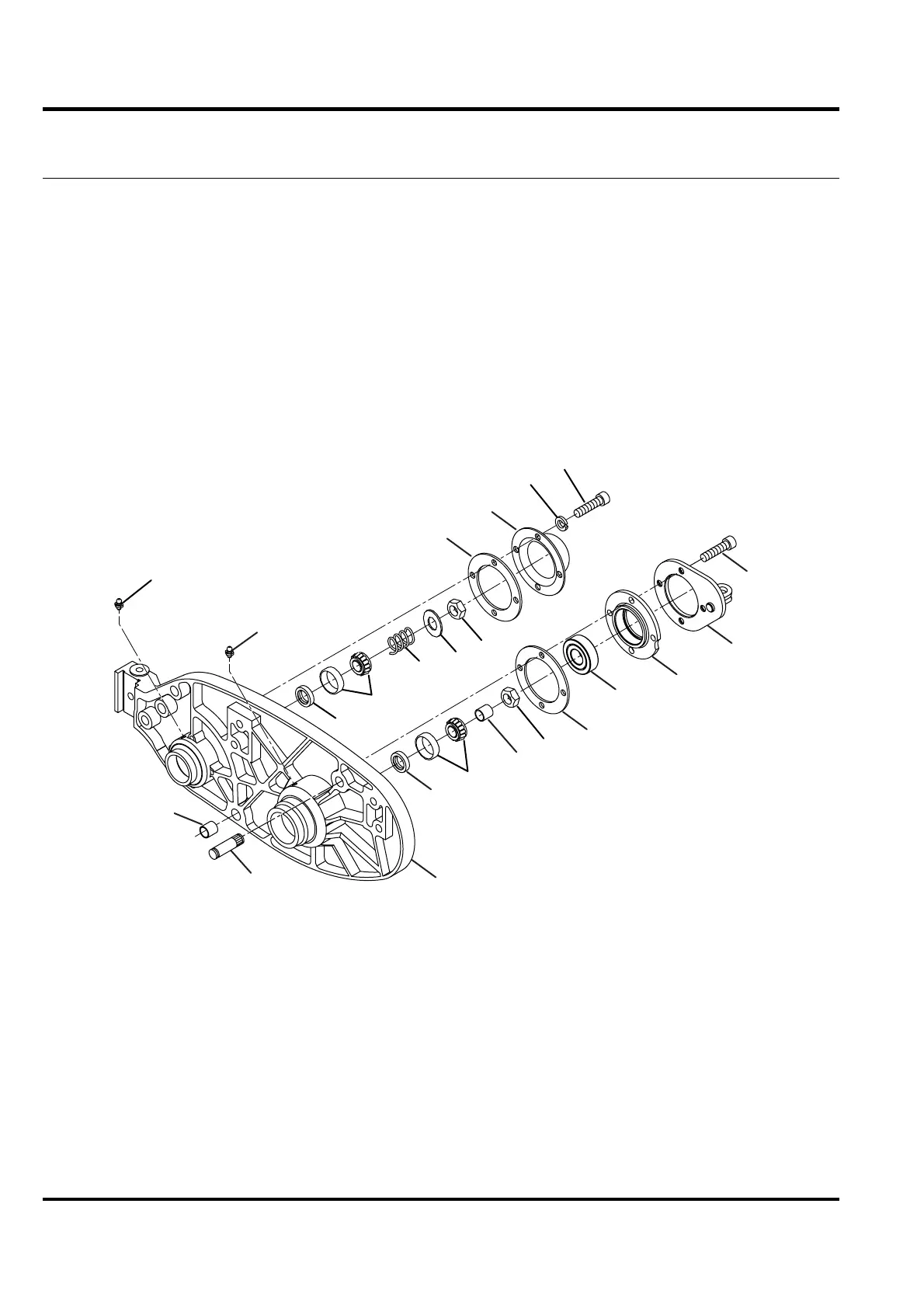

11 - Kettengehäuse.............................................................................................................. ...................W
.................. IV
A - Auffüllen oder Einstellen R - Reinigen I - Inspizieren S - Schmieren W - Wechseln/Ersetzen
