03/23/05 J600CHT Assembly – DRAFT Prepared for Jacto
Service Seminar 3/2005
DRAFT COPY
Control Valve

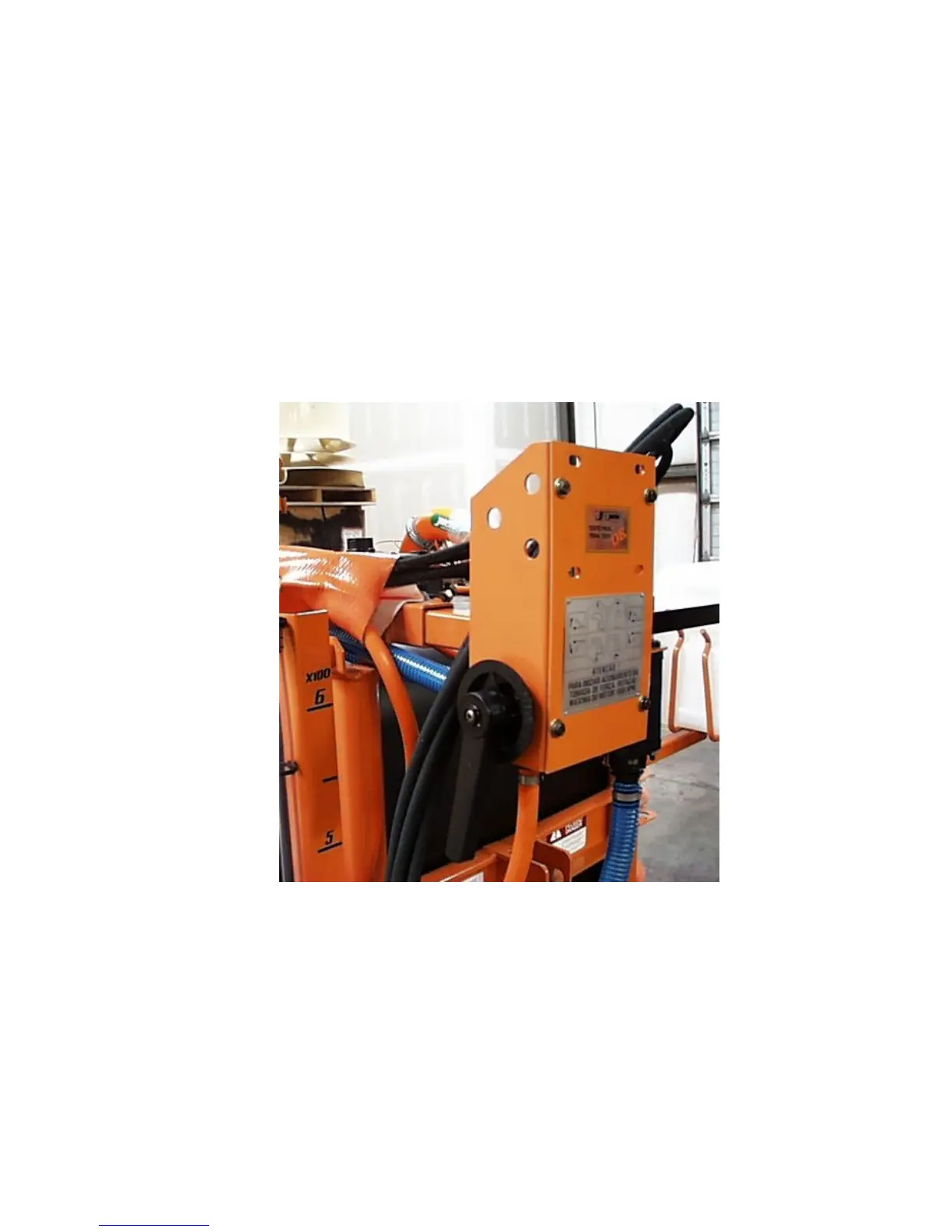

1) Install control valve into bracket (make sure hoses are routed on top of the tank
towards the center) as shown below. Install the blue return hoses and clamps to the
control valve. Note the hose coming from the centrifugal pump connects to bottom
outlet of control valve and the other two hoses that go to the top of the tank connect to
the upper fittings on the valve. Using a liquid dish soap will help to install the hoses
to the valve.
