03/23/05 J600CHT Assembly – DRAFT Prepared for Jacto
Service Seminar 3/2005
DRAFT COPY
Movable Duct Assembly

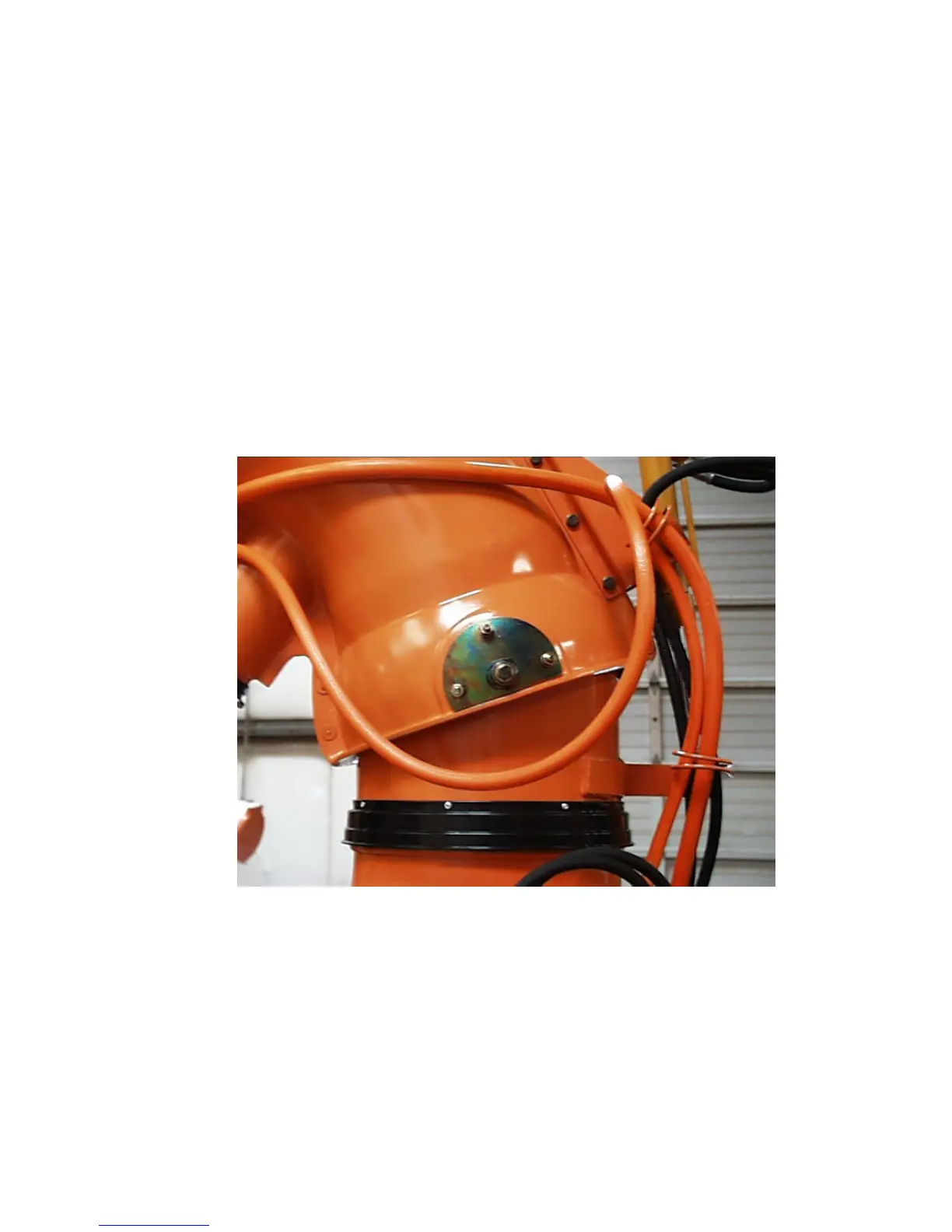

1) Position the upper duct onto the stationary duct with the duct facing towards the
rear of the sprayer. Align the two holes in the duct with the bushing holes in the
stationary duct and insert the bushings supplied into the pivot holes. The bushing
must seat properly into the recess in the stationary duct holes or the duct will not
move up and down freely. Next install the two bolts through the bushings while
making sure the bushings stay aligned and then tighten the bolts.
