6. Attach the ozone delivery tubing (supplied with the ozone generator) between the ozone generator outlet port
and the ozone injector inlet. Form the extra length of ozone tubing into two or more loops 6"-12" in diameter.
Find the bonded clip underneath the spa rim near the control panel area and secure the loops in a maximum
height position by attaching the loops with a tie wrap strap to this clip.
NOTE: If the ozone generator or ozone tubing includes a check valve, make certain it is correctly oriented and
correctly functioning before installation. The check valve should permit gas flow from the ozone generator to
the ozone injector. See Figure 4.
5. Install the ozone generator according to the manufacturer's instructions. Attach the 4-1/2" x 14" x 1/2" thick
plywood board to the spa, just above the electrical cabinet, using the #6 screws provided. Several commer-
cially available ozone generators will fit easily in this location. Attach the ozone generator to the board using
the #10 screws provided. See Figure 3.
7. Refill spa with water to fill mark on skimmer frame. Check for leaks.
8. Plug the ozone generator power cord plug into the socket labeled "ozone"
on the side of the spa electrical cabinet.
9. Turn on circuit breaker for power to the spa system. Test the GFCI for proper operation.
10. Operate the spa and recheck for leaks.
11. Reinstall plumbing access skirt panels and equipment access skirt panel.

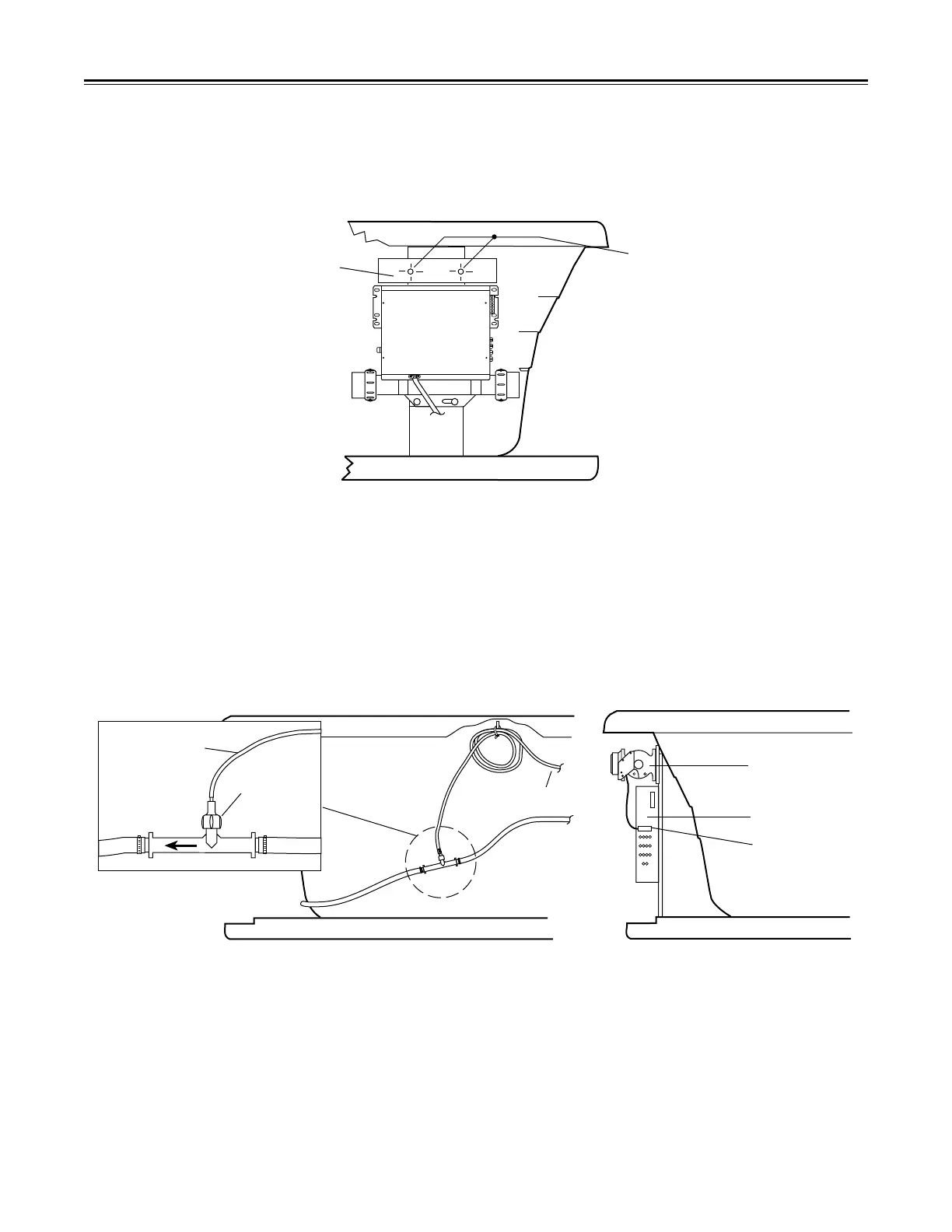

FIGURE 4 - OZONE GENERATOR VINYL TUBING
(NOTE: VERIFY ORIENTATION
OF CHECK VALVES)
ELECTRICAL
CABINET
OZONE
GENERATOR
POWER PLUG
CONNECTION
VINYL TUBE FROM
GENERATOR
INJECTOR
INLET
TO OZONE
GENERATOR
FIGURE 3 - MOUNTING BOARD
USE #6 SCREWS
OZONE GENERATOR
MOUNTING BOARD
ELECTRICAL
CABINET
INSTALLATION
11
