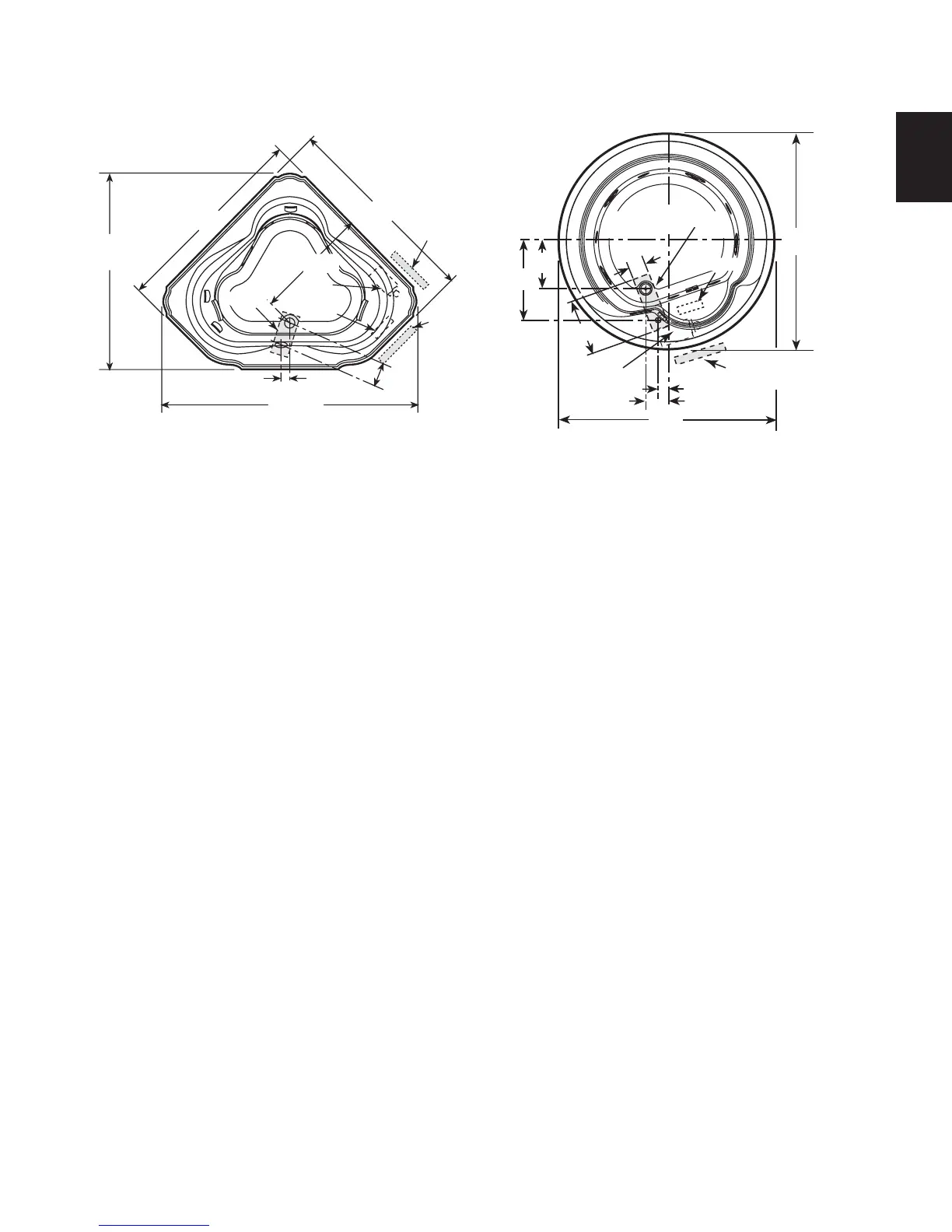

ROUGHING-IN REFERENCE (ROUND, CORNER)
Some tubs are supplied with cutout and/or undermount template. Refer to CUTOUT on pages 6-8 for template part numbers.
NOTE: 1. Measurements inside each unit represent cutout in floor to allow for drain/overflow.
2. All measurements are in inches. To convert to millimeters, multiply inches by 25.4.
3. Service access dimensions given are minimum size.
4. The overall dimensions are nominal with a tolerance of +0 and -1/4" (6,4 mm).
60"
60"
77-3/4"
3"
7-1/2"
34-9/16"
59-1/2"
BELLAVISTA™ CORNER, Right Hand
Ref.
Motor
Service
Access
Opt.
Service
Access
Heater
12"x4"
72"
72"
5"
16"
4"
26"
16"
9"
14"x5"*
Motor
12" H x 18" L
Service Access
Heater
CORTINA™, Right Hand
13
Jacuzzi Whirlpool Bath K339000X 3/06
ROUGHING-IN REFERENCE
