MIDDLE (Middle Level) : User has 5 seconds to use the Volume Up or
Down button to adjust the desired Middle level range from -6 to +6.
MID-CFQ (Middle Cent er Frequency): User has 5 seconds to use
the Volume Up or Down button to adjust the desired Middle Range
Center Frequency to 500 Hz, 1 KHz, 1.5 KHz, or 2.5 KHz.
MIDDLE-Q (Middle Qualit y Factor): User has 5 seconds to use
the Volume Up or Down button to adjust the desired Middle Quality
Factor to 2N, 1N, 1W or 2W.
: User has 5 seconds to use the Volume Up
or Down button to adjust the desired Treble level range from -6 to +6.
: User has 5 seconds to use
the Volume Up or Down button to adjust the desired Treble center
frequency to 10 KHz, 12.5 KHz, 15 KHz, or 17.5 KHz.
BALANCE : User has 5 seconds to use the Volume Up or Down
button to adjust the Balance between the right and left speakers from
R12 (full right) to L12 (full left). “C00” represents an equal balance
between the right and left speakers.
Frequency (Hz)
Level
(dB)
10 100 1.0K 10.0K
0.0
5.0
10.0
15.0
1W
1N
2W
2N
2.5
7.5
12.5
Frequency (Hz)
Level
(dB)
10 100 1.10³ 1.10
4
1.10
5
0
5
10
15
1W
1N
2W
2N

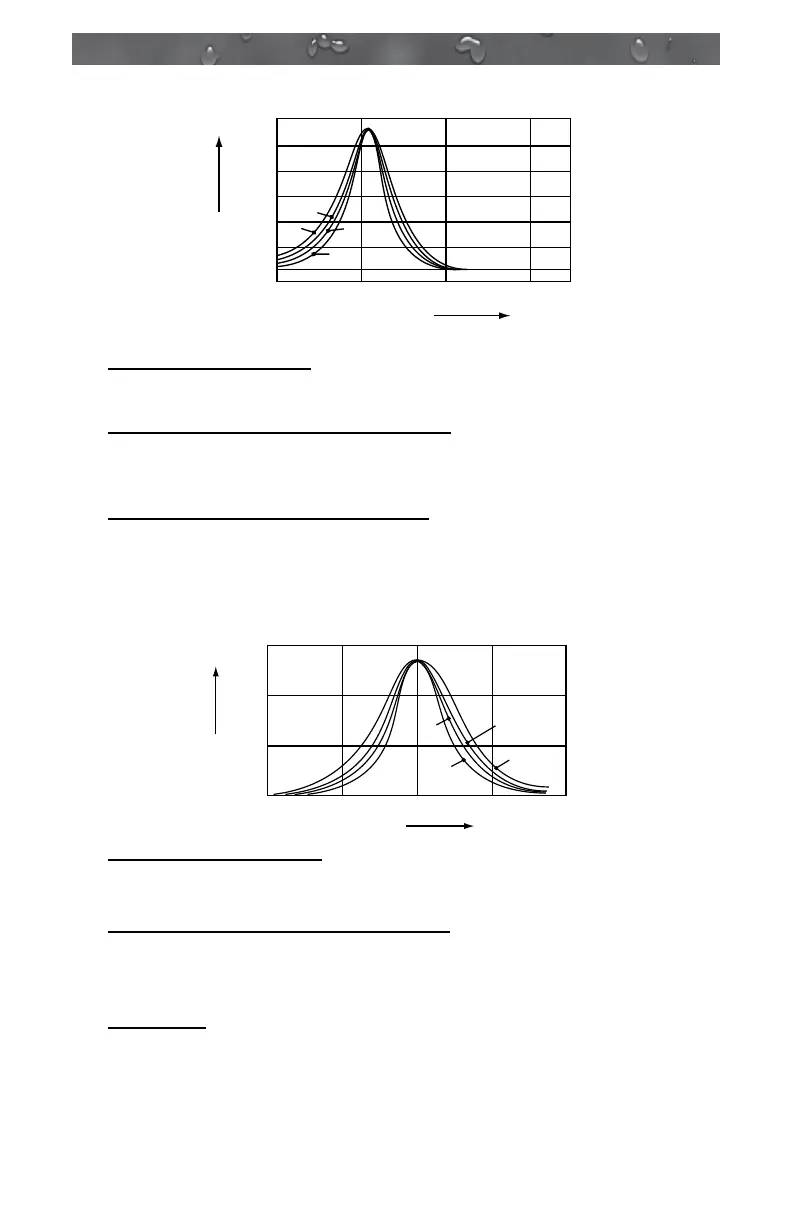

Shows the Bass Quality factor (Curve characteristics) of each step
Figure 1
Shows the Middle Quality factor (Curve characteristics) of each step
Figure 2
