Jacuzzi J-470 Use, Installation And Maintenance Instructions

39
J-460
A. Control Panel
B. Waterfall Control Valve
C. Air Control Valves (4 ea.) Introduce Air to Specified Jet
Groups
D. Optional Audio System Speaker (4 ea.)
E. Adjustable Pillows (4 ea.)
F. Cup Holder (2 ea.)
G. Massage Selector (ea.) Controls Specified Jet Groups.
H. Waterfall
I. FX Jets (18 ea.)
J. FX2 Jets (5 ea.)
K. ProClearTM Plus Polishing Filter Bag
L. ProClearTM Floating Skimmer And Filter Cartridge with In-
tegrated Chemical Dispenser.
M. SX2 Jets (4 ea.)
N. MX2 Jets (5 ea.)
O. IX suction jet (lighted)
P. Footwell Filter Suction Covers (3 ea.)
Q. Bottom Filter Suction Cover
R. Drain/heater input/optional ozone return fitting
S. Waterfall Filtration Return
T. Suction jet flow control valve (lighted)
U. Optional Audio System Receiver
V. iPod connector

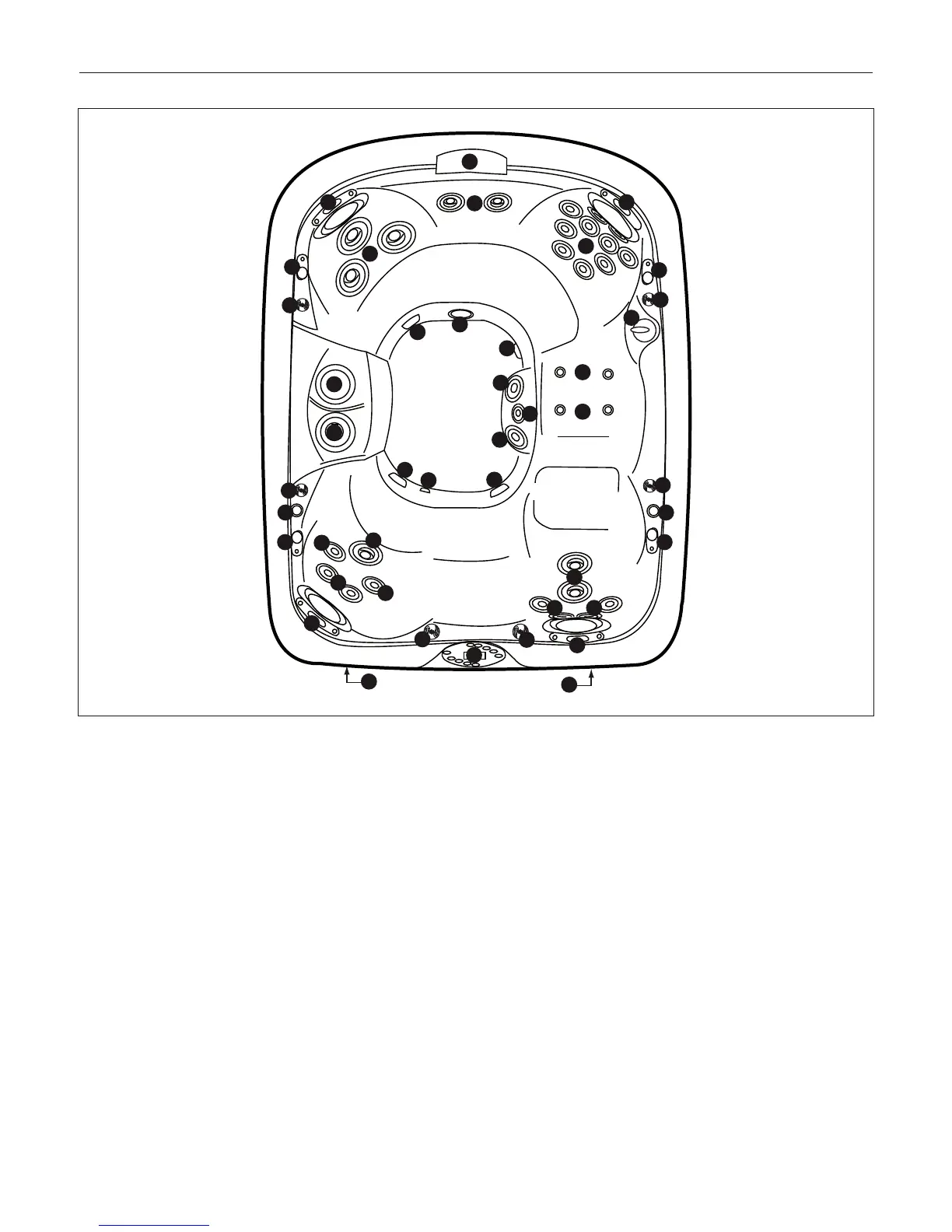

CHARACTERISTICS AND CONTROLS J-460
A
C
C
G
D
D
C
D
E
E
U
H
N
J
P
L
K
I
J
P
Q
N
O
S
R
F F
E
B
T
E
I
M
C
D
I
I
J
P
M
II
N
V

Jacuzzi J-470 Specifications

General

Pumps	2
Waterfalls	2
Shell Material	Acrylic
Cabinet Material	Synthetic
Dimensions	38 in
Water Capacity	450 gallons
Lighting	LED lighting system
Warranty	5 years
