Jacuzzi J-470 Use, Installation And Maintenance Instructions

40

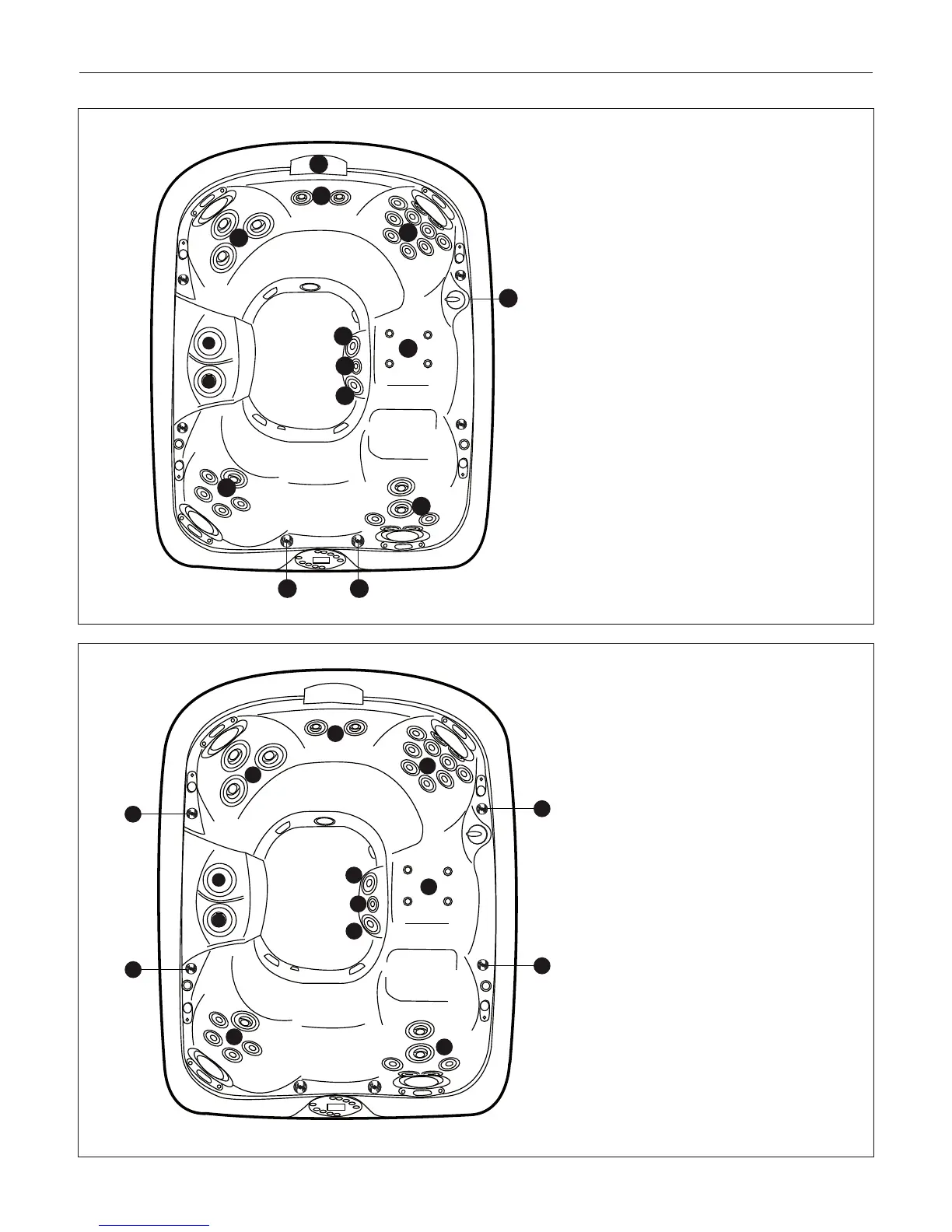

JET/AIR CONTROLS J-460
1a
1b
L
K
1
4
4
1a
4
4
4
3
3 2
2
L
K
4
4
3
3
5
3
3
1
1
2
2
2
4
J-460
Massage Selector (1)
• Massage selector 1 diverts pump 1 output
between jets groups 1a-1b.
Massage Selector (2)
• Massage selector 2 controls pump 1 out-
put to footwell IX Jet.
Waterfall Selector (3)
• Waterfall selector 3 controls circulation
pump output to waterfall.
Jets Without Massage Selector
Controls (4)
• Jets 4 are always on when pump 2 is running.
J-460
Air Controls Operation
• Rotate air controls 1-4 to add air to des-
ignated jet groups.
• The centre jets of well IX carry air continu-
ously when pump 1 is in operation. This jet
is not equipped with an adjustment device.

Jacuzzi J-470 Specifications

General

Pumps	2
Waterfalls	2
Shell Material	Acrylic
Cabinet Material	Synthetic
Dimensions	38 in
Water Capacity	450 gallons
Lighting	LED lighting system
Warranty	5 years
