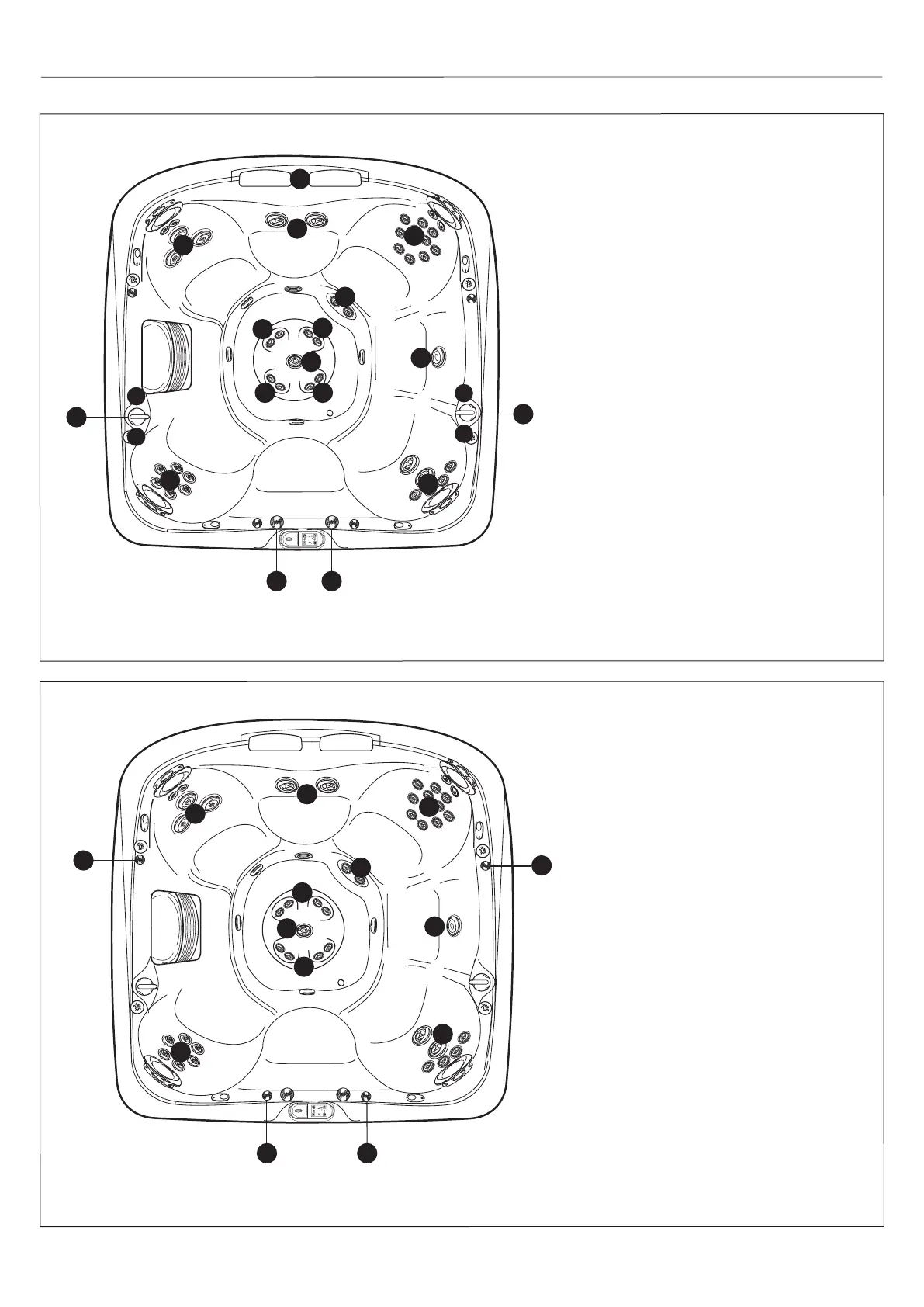

JET/AIR CONTROLS
J-470
J-470
Massage selector knob (1-2)
• Massage selector 1 divides the output ow
from pump 1 between the jet units 1a and 1b.
• Massage selector knob 2 divides the output
ow from pump 2 between the jet units 2a and
2b.
Waterfall selector knob (3)
• Waterfall selector knob 3 controls the output
ow from the recirculation pump to the water-
falls.
IX jet ow-control valve (4)
• Valve 4 controls the output ow from the drain
basin IX jet when pump 2 is in operation.
Jets without massage selection controls (5)
• Jets 5 are always active when the pump for jets
1 is in operation.
J-470
Air control operation
• Turn the air controls1-4 to add air to therelevant
jet units.
• The central drain-basin jet IX (5) continuously
channels air when the jet pump is in operation.
This jet cannot be adjusted.
The hot tub specications are subject to change without prior notice.
The hot tub specications are subject to change without prior notice.

Jacuzzi J-470 Specifications

General

Pumps	2
Waterfalls	2
Shell Material	Acrylic
Cabinet Material	Synthetic
Dimensions	38 in
Water Capacity	450 gallons
Lighting	LED lighting system
Warranty	5 years
