P-r: Recirculation pump
P-hy: Hydro pump
Do not start the hot tub if the cartridges and filters have not
been installed correctly or if the cover is damaged.
Replacement filter cartridges may be purchased from your
authorized Jacuzzi dealer.
A. Turn power to spa off!
B. Lift the cover upward to access filter cartridges.
C. Remove the ProClarity debris bag from clips and then clean out
debris.
D. Rotate each filter cartridge handle counterclockwise to
unthread from mating wall fitting.
E. Lift unthreaded filter cartridge from skimmer well.
F. Rinse debris from filter pleats using a garden hose and high-
pressure nozzle.
Start at the top and work downward towards handle.
Repeat until all pleats are clean.
G. Remove the filter pins (1) in order to separate the ProClarity fil-
ter and canister.
H. Once the filter pins are removed, rotate the filter cartridge han-
dle counterclockwise to unthread from the filter canister. You can
clean the filter (1) and canister (3) , but you must replace the
ProClarity Depth Filter (2) every 3 to 4 months.
I. Rinse debris from filter pleats using a garden hose and high-
pressure nozzle. Start at the top and work downward towards
handle. Repeat until all pleats are clean. Rinse out any debris
from the canister.
J. Reassemble the ProClarity Filter. Remember to replace the
depth filter with a new one. Once the filter is assembled, secure
it with the filter pins (1).
K. Submerge both filter cartridges in spa. Tilt threaded end
upward to remove trapped air bubbles, then keep cartridges
submerged to prevent air entrapment during installation.
L.
Reposition each cartridge in the relevant tting (P-r and P-
hy, see gure)
then turn the handles clockwise to screw them
back into position.
N.B.: do not overtighten!
M. Install clean debris bag back onto the filter cover clips as
shown (you can flip the filter skimmer and use the back side to
extend usage).

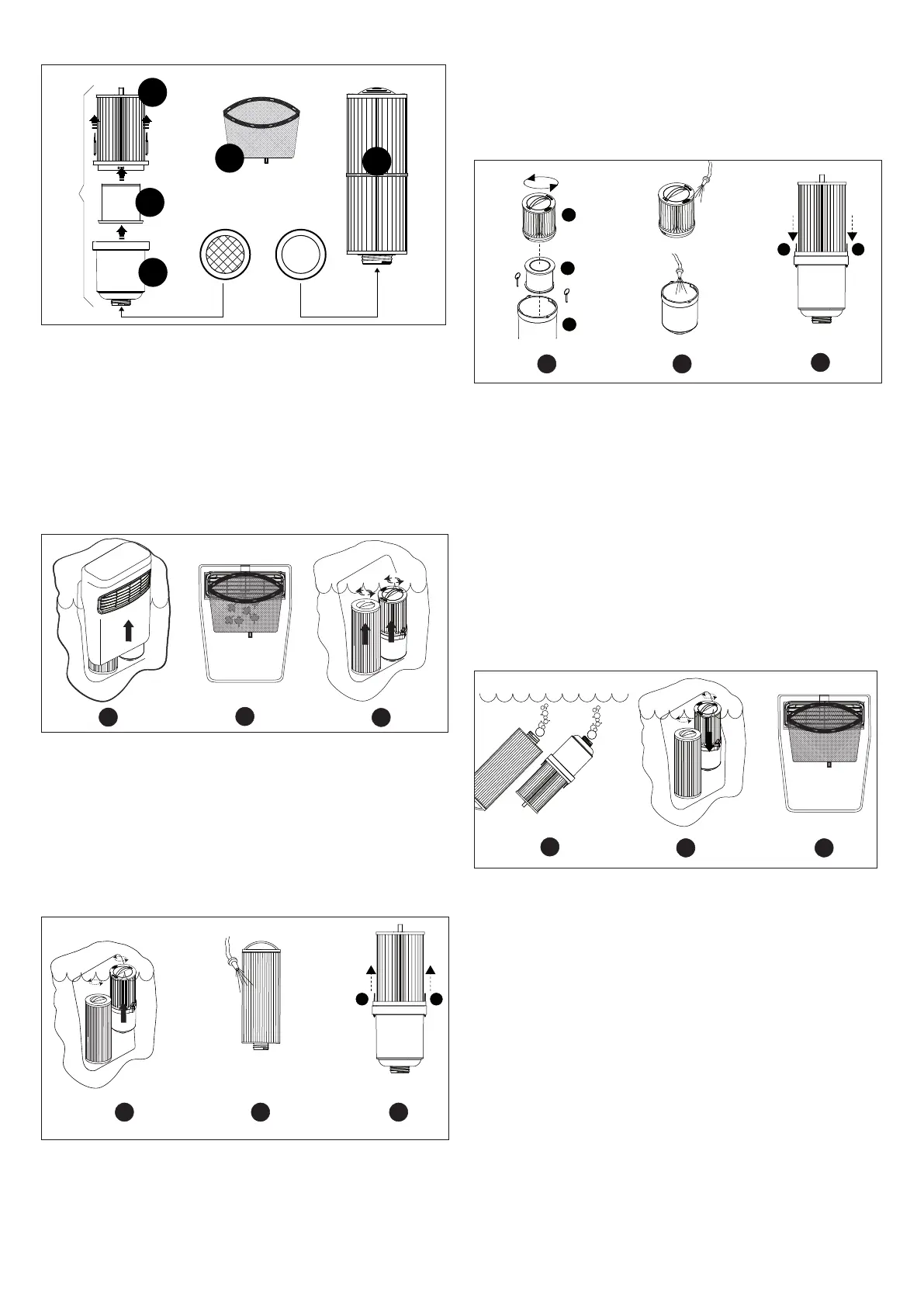

A
P-r
P-hy
B
C
D
E
B
D
C
E F G
1 1
J
IH
1 1
1
2
3
L
M
K
