Page 13
J-400


L2
L1

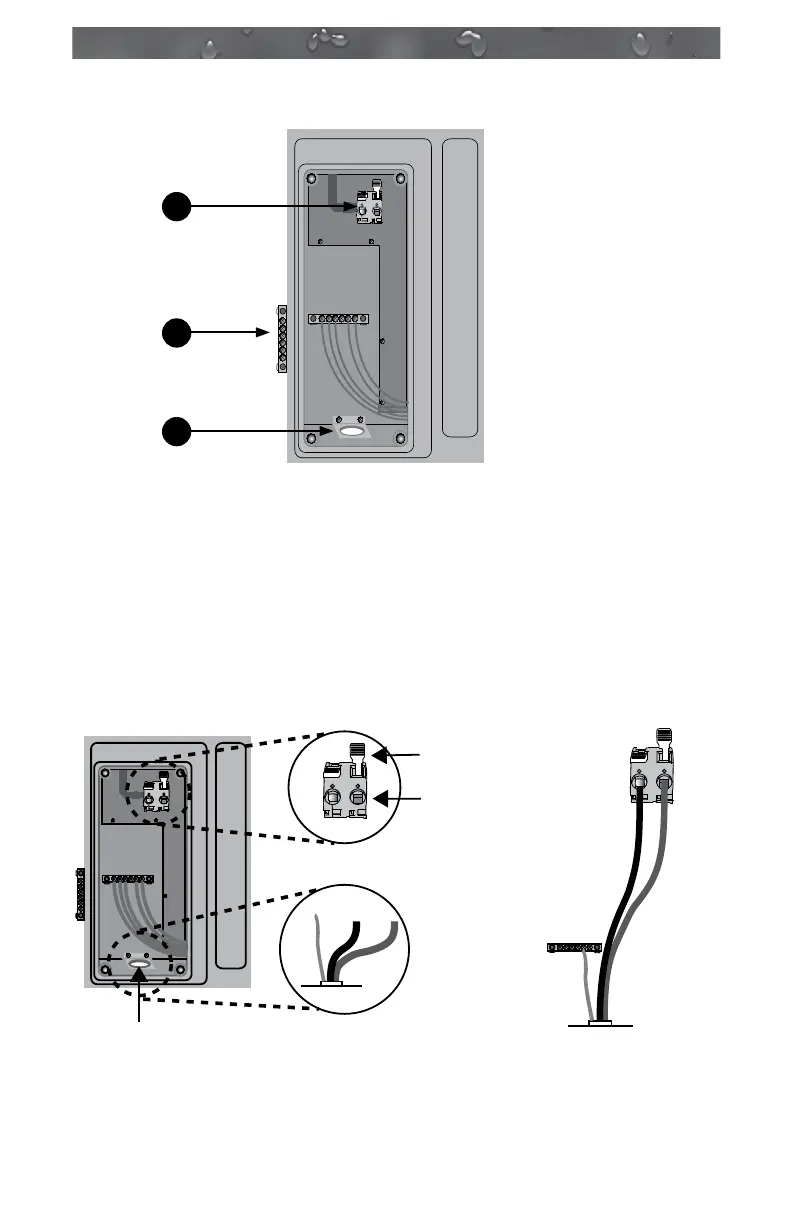

1. Main Terminal Block
2. Bonding Lug/Grounding Terminal
3. Power wires Entrance (Electrical tting and conduit must be
installed)
Figure C
Terminal Connection
(North American 240 VAC Connection Shown)
*Electrical tting and conduit must be installed
BLK
RED
Power In
*
Green
Power In*
Main Terminal Block
Lift white lever
by hand to pry
open the connector
Insert power
wires, secure
connection and
put the white lever
down
L2
L1
L2
L1
L2
L1
Main Terminal Block
Grounding Lug
BLK
RED
Power In*
Green
2
1
3
