Page 92
J-400

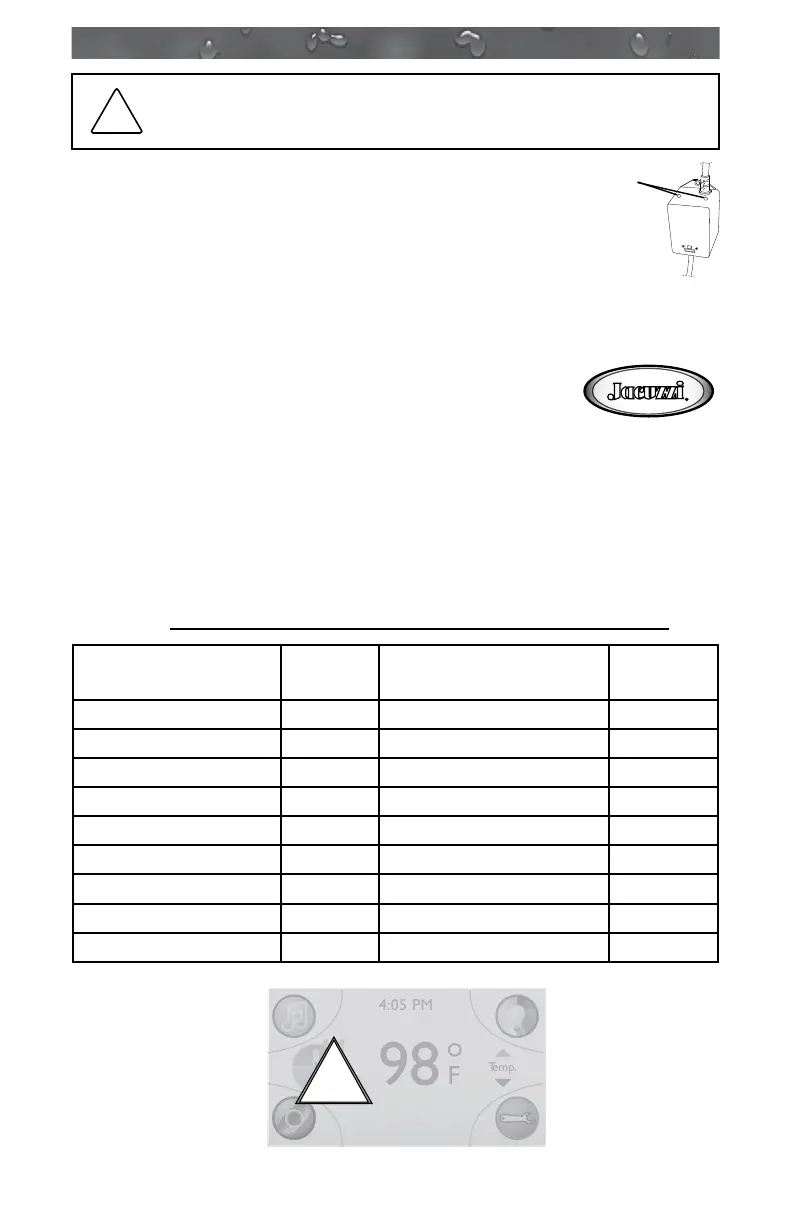

22. Once power is activated you can check the ballast
(12), Figure 7, to see if the CLEARRAY System is
functioning. A solid green light indicates that the
CLEARRAY System is being provided power and
should always be on. A solid red light indicates that
UV lamp is activated.
17.0 Error/Display Messages
There are a number of unique functions designed into
your Jacuzzi spa to protect it from damage and/or to
aid in troubleshooting. When an error occurs the spa will notify you by
showing the screen below and an error code next to it. Also the indicator
light located on the front cabinet panel of the spa is an early detection
system that will notify you when the spa needs immediate attention.
A solid white light indicates that all operations are normal. A solid red
light indicates that immediate attention is required to clear or x an error
code. Following is a listing of all the possible messages along with their
meanings. Always insist on genuine Jacuzzi replacement parts.
WARNING: This CLEARRAY System includes a UV lamp,
which contains mercury. Dispose of the lamp in accordance
with disposal laws. See www.lamprecycle.org.
!
1
2
0
-
230
V
Indicator
Lights
Figure 7
Error
Logo
Light
Error
Logo
Light
Overheat Protection Red Shorted Sensor (Hi-Limit) Red
Water is below set-temp White Start-up Malfunction Red
Communication Error Red Open Flow Switch Red
Pump does not operate Red Closed Flow Switch Red
Freeze Protection White Audio Comm. Malfunction White
Emergency Shutdown Red Blinking Heater Icon White
Open Sensor Red Extended Temp Activated White
Shorted Sensor Red Please Check Filter White
Open Sensor (Hi-Limit) Red Feature Not Installed White
!
“Displays
Error
Message”
