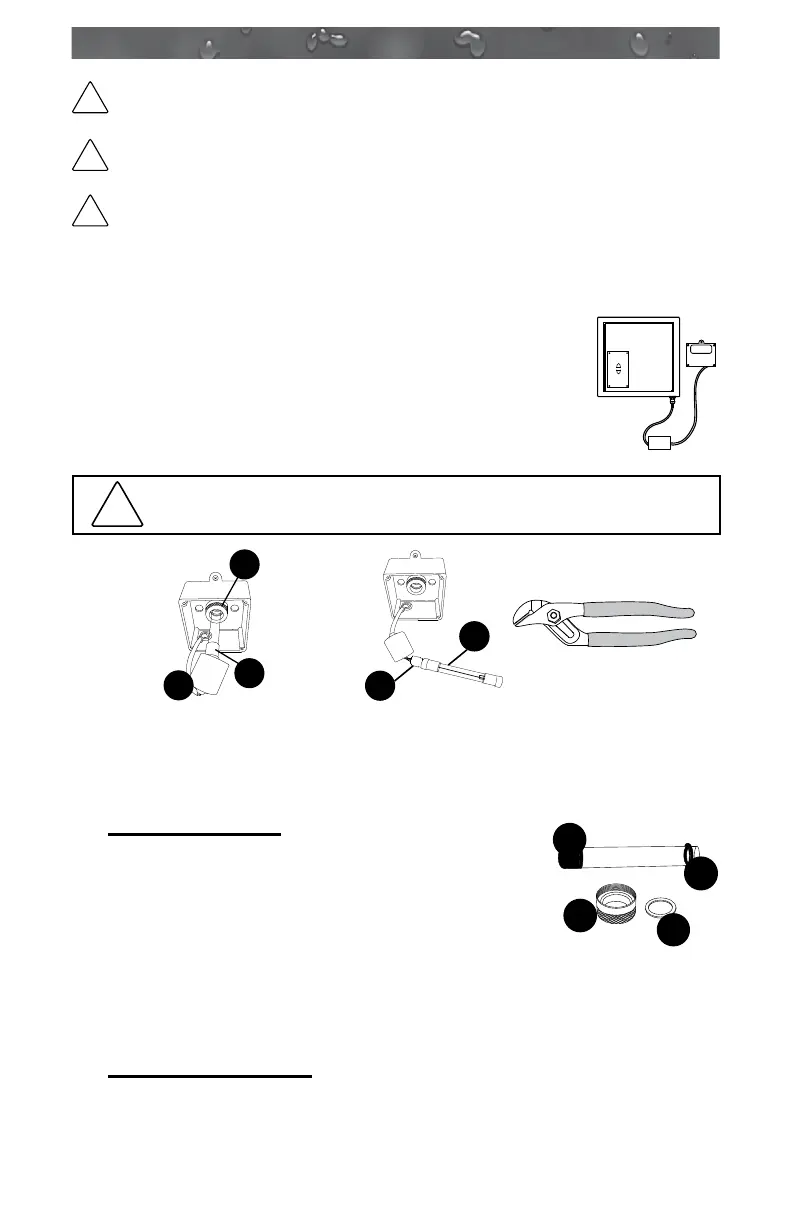

UV lamp replacement and quartz tube maintenance:
Note: Location of CLEARRAY System and connection may vary by
model.
1. Turn the breaker to the spa OFF. We recommend
that you drain your spa. Disconnect the CLEARRAY
System from the controller, Figure 2.
2. Once the UV lamp has cooled off remove the
CLEARRAY System enclosure cover (10) and gasket
(9) by removing the four screws (11).
DANGER: NEVER REMOVE COVER WITHOUT FIRST
TURNING OFF AT POWER SOURCE.
!
3. Remove the black lamp boot (8) by sliding it over the cable away
from the quartz seal compression nut (7), Figure 3.
4. Slowly remove the UV lamp (4) out of the quartz tube.
5. Remove lamp socket (5) from the UV lamp (4), Figure 4.
6. Remove the quartz seal compression nut (7) by turning it
Figure 3. Use a pair of
channel-lock pliers if needed, Figure 5. You will
notice that there is a stainless steel compression
washer (6) that slides over the quartz tube. Save
the washer (6) for later use, Figure 6. There is
also a black seal ring (13), grasp the black seal
ring; slowly and carefully remove the quartz tube.
7. Now you are ready to clean or replace the quartz tube (2). For the
cleaning of the quartz tube (2), follow steps 8 and 9 then proceed to
step 10. For replacing of the quartz tube (2), skip steps 8 and 9 and
proceed to step 10.
8. Cleaning quartz tube: Clean the quartz tube by wiping until clear
using a paper towel or a dry cotton cloth. If needed a household tub
and shower lime removal product can be used.
WARNING!
DONOT LOOK AT LIT BULB
SEVERE EYE DAMAGE
OR BLINDNESS CAN OCCUR
Figure 2
UV
Unit
Connection
7
4
8
Figure 4
Figure 3
4
5
Figure 5
6
13
7
2
Figure 6
