13.4 CLEARRAY® Bulb Replacement and Quartz Tube
Maintenance
Important: It is MANDATORY that the UV bulb is replaced and the
quartz tube be cleaned every 12 months to maintain optimum
performance.
!
DANGER: TURN THE SPA BREAKER TO THE OFF
POSITION!
!
WARNING: DRAIN THE SPA IF YOUR ARE REPLACING OR
CLEANING THE QUARTZ TUBE!
!
WARNING: ALLOW BULB TO COOL DOWN PRIOR TO
REMOVING FROM QUARTZ TUBE.
!
DANGER: NEVER LOOK AT THE LIT BULB. THIS CAN
CAUSE SEVERE EYE DAMAGE OR BLINDNESS.
UV BULB REPLACEMENT AND QUARTZ TUBE MAINTENANCE:
Note: Location of CLEARRAY System and connection may vary
by model.
1. Turn the breaker to the spa OFF. DRAIN YOUR
SPA. Disconnect the CLEARRAY System from the
controller, Figure 2.
Note: If you are only replacing the UV bulb then the
spa does not have to be drained. You will need to
drain it if you are replacing or cleaning the quartz tube.
2. Once the UV bulb has cooled off remove the CLEARRAY System
enclosure cover (10) and gasket (9) by removing the four screws (11).

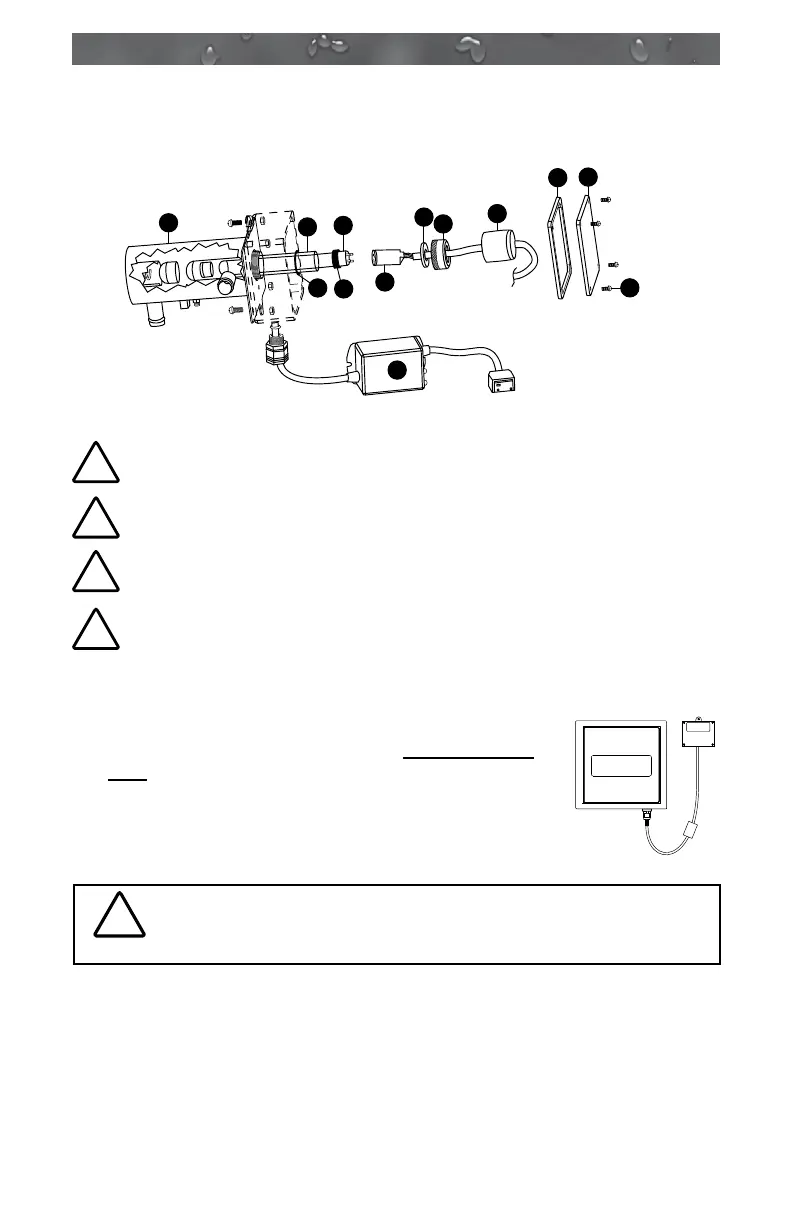

1
2
3
4
5
6
7
8
9
10
12
13
11
SPA CONTROLLER
WARNING!
DO NOT LOOK AT LIT BULB
SEVERE EYE DAMAGE
OR BLINDNESS CAN OCCUR
Figure 2
UV Unit
Connection
DANGER: NEVER REMOVE COVER WITHOUT FIRST
TURNING OFF AT POWER SOURCE AND DRAINING
YOUR SPA.
!
