1 is running when the spa is in use or during a programmed fil-
ter cycle. These pumps draw water from footwell suction fitting
and through a secondary water polishing bag filter and addi-
tional filter.
I Cleaning the filters and filter bag
To ensure optimum performance:
The ProClarity™ filter cartridge (A) must be cleaned every month
and replaced every 18 months.
The ProClarity Depth filter (B) must be replaced every 3 months.
The ProClarity filter canister (C) can be rinsed when the filters
are cleaned.
The ProClear II skimming filter cartridge (D) must be cleaned
every month and replaced every 18 months.
The ProClarity debris bag (E) should be checked and emptied
monthly.
To accomplish this, refer to the following filter cleaning proce-
dure.
Note: Do not attempt to wash the ProClarity depth filter (B)
and the ProClear/ ProClarity debris bag (E) or it will come
apart!
P-r: Circulation pump
P-hy: Pump hydro
ALWAYS TU RN POWE R TO TH E S PA OFF B E FOR E
CLEAN I N G TH E FI LTE R CARTRIDGE S!
Replacement filter car tridges may be purchased from
your authorized Jacuzzi dealer.

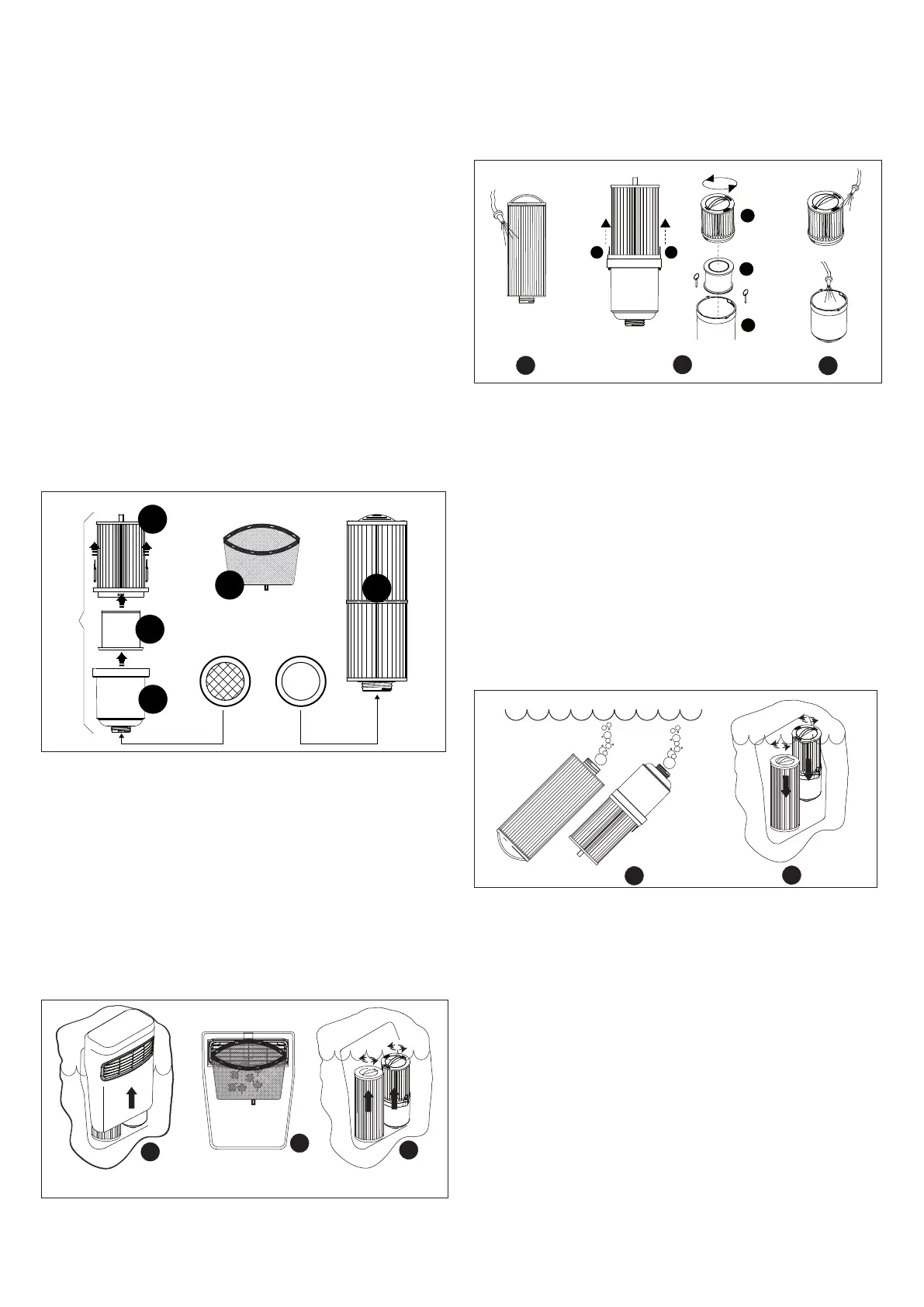

I Cleaning the filters/Debris bag
A. Turn power to spa off!
B. Lift the cover upward to access filter cartridges.
C. Remove the ProClarity debris bag from clips and then clean
out debris.
D. Rotate each filter cartridge handle counterclockwise to
unthread from mating wall fitting. Lift unthreaded filter cartridge
from skimmer well.
E. If used, remove the chemical feeder as instructed prior to
rinsing the filter cartridge. Rinse debris from filter pleats using
a garden hose and high-pressure nozzle. Start at the top and
work downward towards handle. Repeat until all pleats are clean.
F. Remove the filter pins (1) in order to separate the ProClarity fil-
ter and canister. Once the filter pins are removed, rotate the filter
cartridge handle counterclockwise to unthread from the filter can-
ister. You can clean the filter (1) and canister (3) , but you must
replace the ProClarity Depth Filter (2) every 3 to 4 months.
G. Rinse debris from filter pleats using a garden hose and high-
pressure nozzle. Start at the top and work downward towards
handle. Repeat until all pleats are clean. Rinse out any debris
from the canister. Reassemble the ProClarity Filter. Remember
to replace the depth filter with a new one. Once the filter is
assembled, secure it with the filter pins (1).
H. Submerge b oth filter cartridges in spa. Tilt threaded end
upward to remove trapped air bubbles, then keep cartridges
submerged to prevent air entrapment during installation.
I. Place each cartridge back into skimmer well, then rotated
each cartridge handle clockwise to thread back into wall fitting.
N.B.: do not overtighten!
Install clean debris bag back onto the filter cover clips as shown
(you can flip the filter skimmer and use the back side to extend
usage).
Reinstall the skimmer shield over the filters. Then turn power to
spa back on.
A
P-r
P-hy
B
C
D
E
H
I
E
G
F
1 1
1
2
3
B
D
C
