Jacuzzi VX160 User Manual

INST 448 Jacuzzi® JVX Series Pool pump V10-17
10
OPERATION OF CONTROL PANEL
The Jacuzzi® JVX160 and JVX300 Pool Pumps incorporate an LCD backlit screen with the following features:
In built time clock:
 Programmable for up to four timer periods each day
 Timer periods can be disused and 1, 2, 3, or 4 periods selected
 Different speed (low, medium, high) for each timer period
 Displays actual RPM of motor and low, medium and high speed can be adjusted to suit your pool
 Time clock and timer periods can be disabled if connected to an external time clock
 Enables the priming (start-up) speed to be adjustable and the time of the start-up speed to be changed
from 2 minutes up to 120 minutes

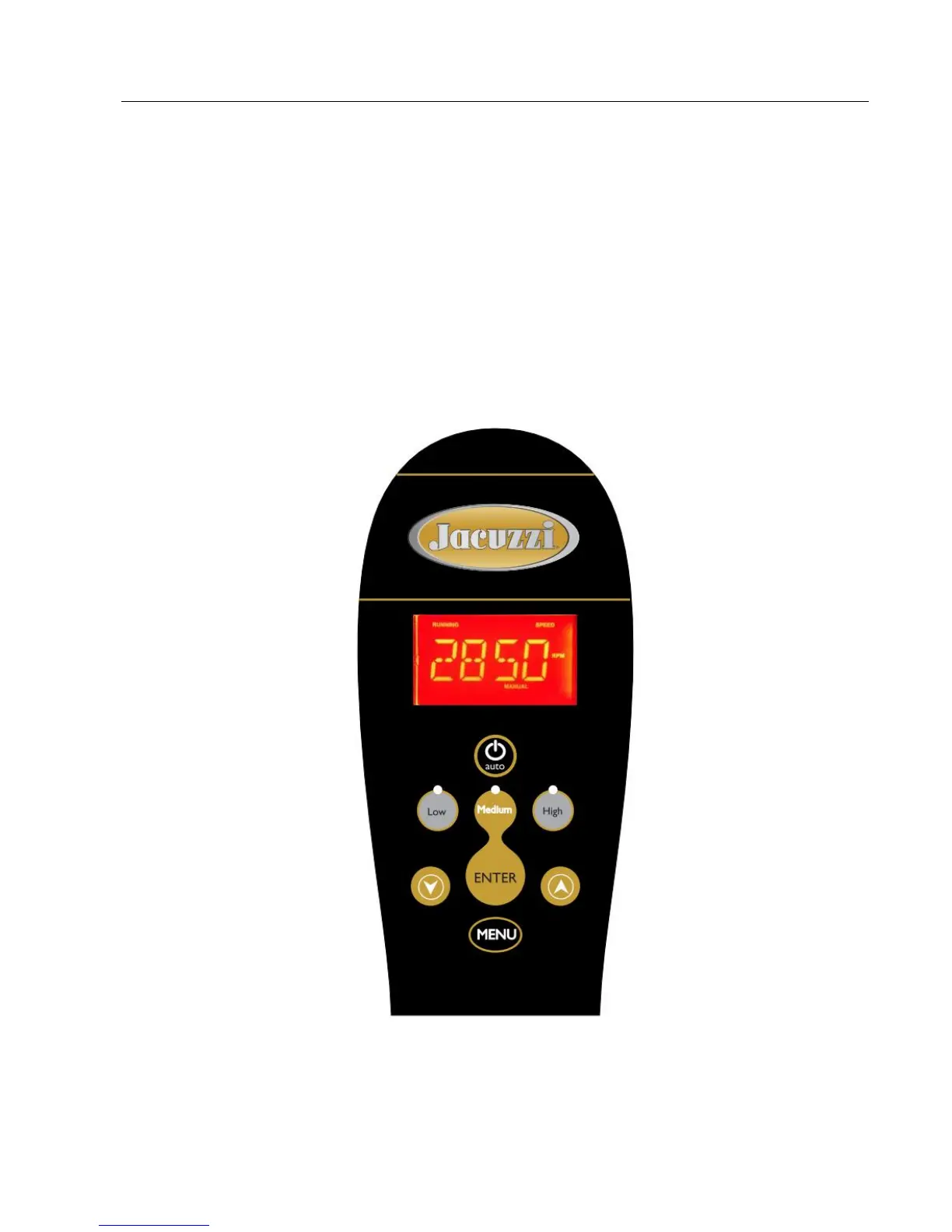

Jacuzzi® JVX160 and JVX300 Control Panel

Jacuzzi VX160 Specifications

General

Brand	Jacuzzi
Model	VX160
Category	Water Pump
Language	English
