INSTALLATION OF Jacuzzi® JVX Series Pool pump AND UNIVERSAL BASE
1. The base mates up to the Jacuzzi® JVX Series Pool pump.
2. Select the correct side of the pump base for desired pump inlet elevation, without base the pump inlet centerline
(fig 3a) is 8.465”inch. The base additionally allows for a 9.125” or a 10.75” inch pump inlet centerline to ground
clearance, which allows easy retrofits from popular competitor pump products.
3. Align pump foot over mating features on the adjustable base after selecting correct base side (from step 2) which
allows for closely matching existing pump installations inlet centerline.
4. Apply moderate down pressure to pump foot to clip pump into base clips, locking it in place.

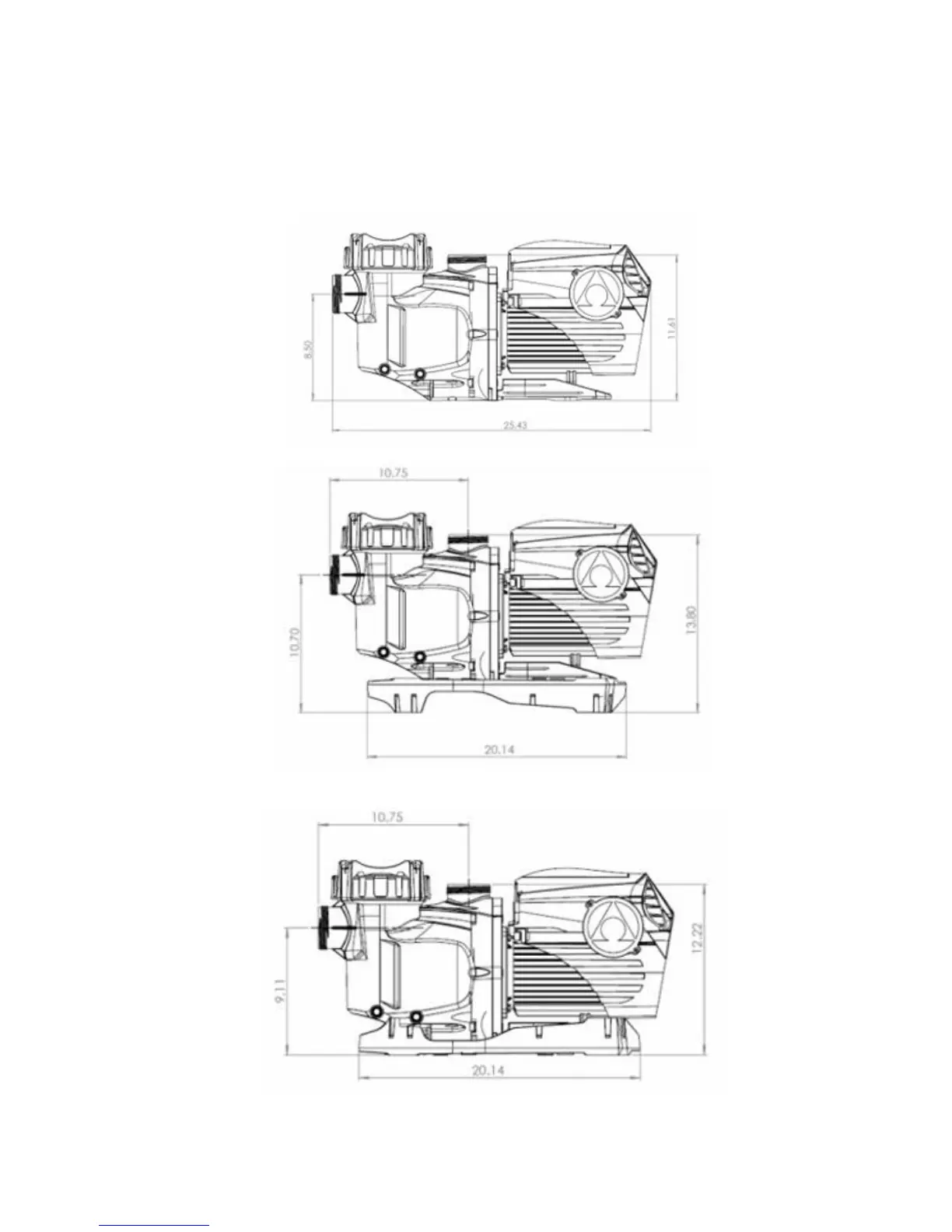

Pump shown without adjustable foot
Pump shown with universal base to fit Max E Pro®
Pump shown with universal base to fit WhisperFlo®
