Oxygen Technical Manual

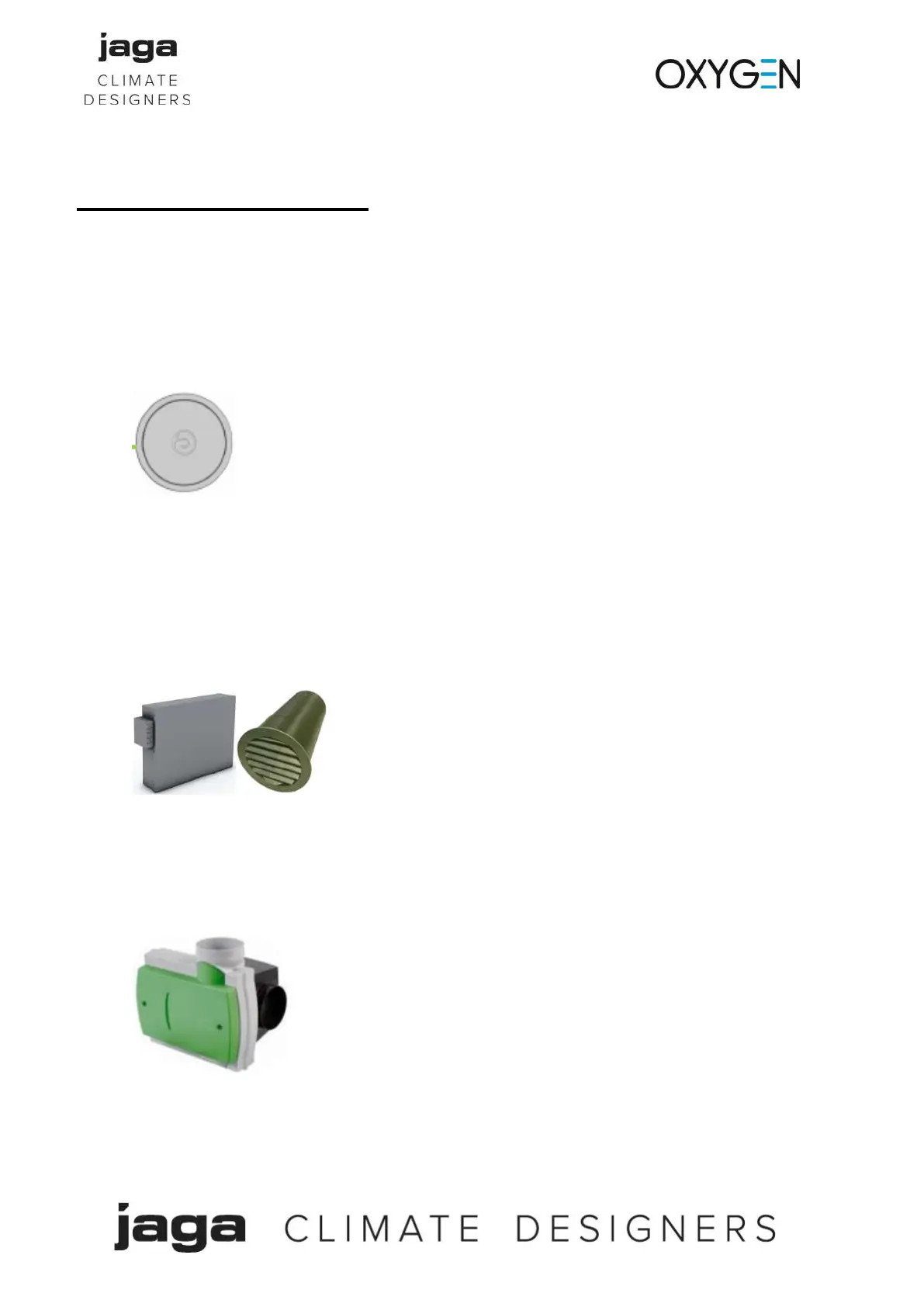

Installed Components
CO
2
Sensor
CO
2
Sensor communicates with the other control components over the Jaga bus system to control
and balance the inlet and exhaust fans.
This sensor also measures the room temperature and can control the heating valves and ventilation
speed to provide a degree of temperature control within the space.
Refresh Unit & Damper
The Oxygen air inlet fans are housed within the Jaga Low H2O radiator casing. Depending on the
type of casing being used, up to four air inlet fans can be fitted into one radiator, therefore saving
valuable wall space.
Each of the air inlet fans require a 163mm diameter feed to outside air and accommodate the damper
assembly. The damper closes when the fan is not operational to ensure full control.
Exhaust Fan
An exhaust fan is used to remove stale air from the space. It can accept a 0 – 10 volt signal. The
fan curve is programmed into the Jaga Master Controller to ensure accurate control, balanced with
the inlet air from the refresh units.
