The "Pink Flow" is a comprehensive multi-effects pedal designed by JAM Pedals, combining several individual pedal designs into a single unit to provide a versatile array of effects for guitarists. This device aims to offer essential tools for creating "Pink" lines and enhancing sound in both live and recording environments.

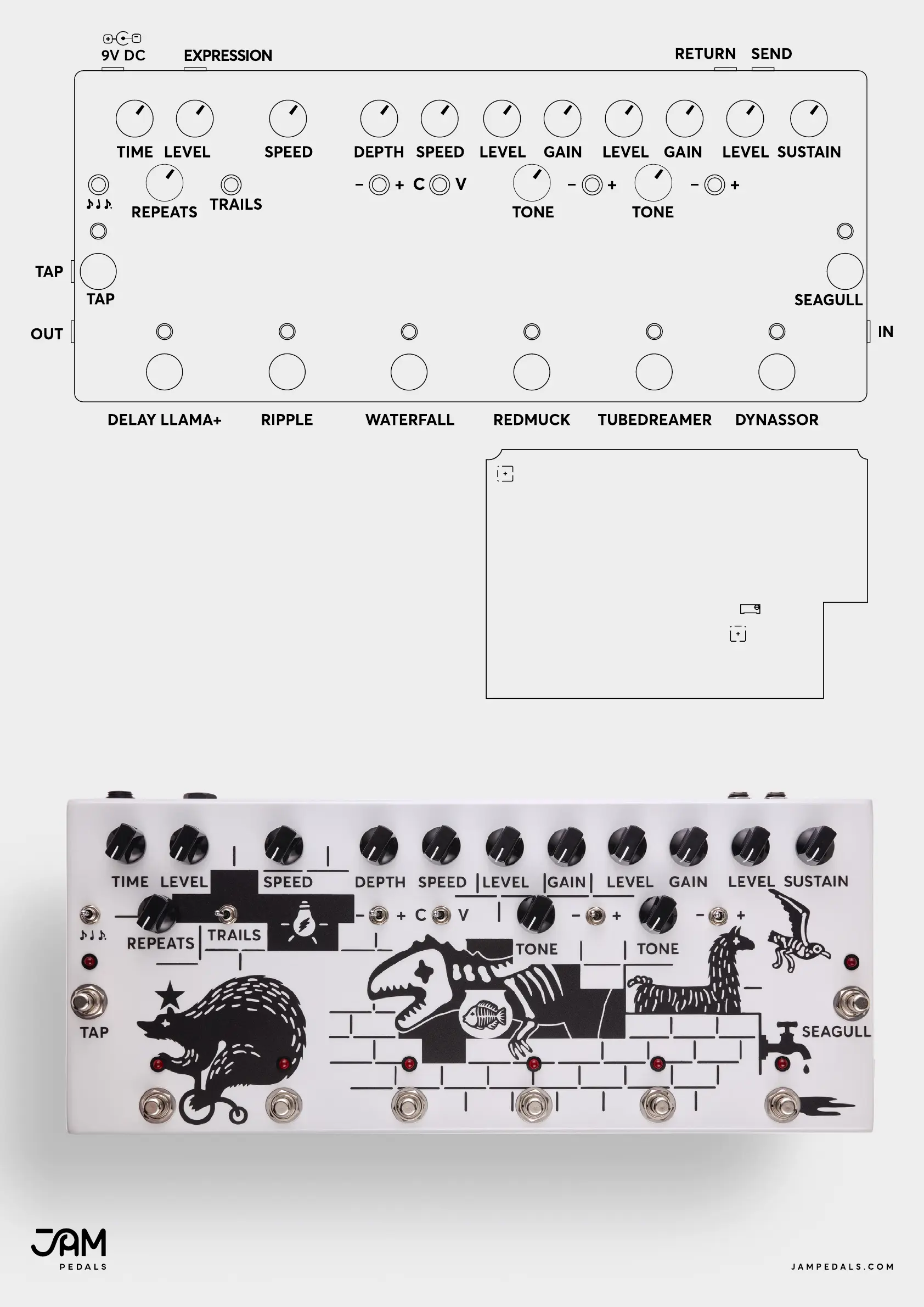

Function Description:

The Pink Flow integrates eight distinct effects pedals in a specific signal chain, each with its unique function and controls:

Seagull: This effect emulates the distinctive "seagull" sound heard in "Echoes." It is designed to work with passive guitar pickups. When engaged, the effect's pitch can be manipulated by the guitar's tone pot, with the guitar's volume knob turned all the way up.
Dyna-ssoR: A compressor pedal inspired by a combination of the Ross Compressor® and a vintage DynaComp®, utilizing a rare NOS CA3080 chip. It features a "LVL" control to adjust the output level and a "SUS" control to set the amount of compression or sustain.
Tubedreamer: An overdrive pedal equipped with a JRC4558D chip, offering an 808-style overdrive sound. It provides a carefully tuned, midrange frequency register for warm and rich overdriven tones through any amplifier. It includes a high-gain footswitch. Controls include "LVL" for the output level, "TONE" for tone adjustment, and "GAIN" for setting the gain level. A toggle-switch allows selection between High and Low Gain stages.
Red Muck: A fuzz/distortion pedal inspired by the circuits of the '71 "triangle" and later "Red Army/Civil War" Muff pedals. It features "LVL" for output level, "TONE" for tone adjustment, and "GAIN" for setting the gain level. A toggle-switch allows selection between symmetrical or asymmetrical clipping.
FX Loop Send / Return: This feature allows users to integrate other external effects pedals into the Pink Flow's signal chain. The FX loop is positioned after the Red Muck and before the WaterFall, enabling users to customize their sound by placing additional effects in this specific part of the chain. The "SEND" output connects to the input of external pedals, and the "RETURN" input receives the output from those pedals.
WaterFall: A smooth, lush-sounding chorus/vibrato pedal that uses BBD chips. It includes two toggle-switches: one to select between chorus and vibrato modes, and another to switch to a "wetter" effect. Controls include "DEPTH" to set the intensity of the effect and "SPEED" to adjust the rate of the effect. A LEFT toggle-switch selects between subtle and more intense modulation response, while a RIGHT toggle-switch selects between Chorus and Vibrato modes.
Ripple: A smooth, sweet, and transparent two-stage phaser pedal. It features a single "SPEED" control to set the rate of the phasing effect.
Delay Llama: A fully analog delay pedal utilizing BBD chips, offering a maximum delay time of 600ms. It includes Tap Tempo functionality, a HOLD function, and an expression pedal input for controlling delay time. It features a two-position toggle-switch for trails mode (ON/OFF) and an external Tap Tempo input. The "TAP" footswitch sets the tempo of the repeats, with prolonged pressing engaging the HOLD function. A sub-division toggle-switch allows tapping in three different note values. "TIME" sets the delay time, "LVL" sets the mix level of the repeats on top of the dry signal, and "REPEATS" sets the amount of repeats. The "TRAILS" toggle-switch (right side ON/left side OFF) allows the effect's repeats to fade out gradually after the Delay Llama is turned off.

Usage Features:

The Pink Flow is designed for intuitive use with a range of features that enhance its versatility and performance:

Tap Tempo with Subdivisions: The Delay Llama features Tap Tempo, allowing users to easily synchronize the delay repeats with the music's tempo. A sub-division toggle-switch provides flexibility for tapping in three different note values, offering rhythmic variety.
Delay Llama Trails Mode: This mode allows delay repeats to naturally decay and fade out even after the pedal is disengaged, providing a smoother transition and preventing abrupt cut-offs. This feature can be toggled ON/OFF via a dedicated switch.
External TAP Tempo IN: For greater control, the Delay Llama can be synchronized with an external Tap Tempo source, making it easier to integrate into complex setups or live performances.
Expression Pedal Input: The Delay Llama includes an expression pedal input, allowing real-time control over the delay time. This enables dynamic and expressive manipulation of the delay effect during performance.
FX Loop for Customization: The integrated Send/Return FX loop provides a crucial point for customization, allowing users to insert their preferred modulation or time-based effects between the Red Muck and WaterFall pedals. This expands the sonic possibilities of the Pink Flow.
Toggle-Switches for Effect Variation: Many pedals within the Pink Flow feature toggle-switches to select between different modes or characteristics, such as High/Low Gain on the Tubedreamer, symmetrical/asymmetrical clipping on the Red Muck, Chorus/Vibrato and subtle/intense modulation on the WaterFall, and Trails ON/OFF on the Delay Llama. These switches provide quick access to a wide range of tones.
Dedicated Controls for Each Effect: Each effect in the Pink Flow has its own set of dedicated knobs for parameters like Level, Tone, Gain, Depth, Speed, Time, Repeats, and Sustain, allowing for precise shaping of each individual effect.
Footswitches for Engagement: Each effect section (Dyna-ssoR, Tubedreamer, Red Muck, WaterFall, Ripple, Delay Llama) has its own footswitch for easy engagement and disengagement during performance. The Seagull effect also has a dedicated footswitch.
Input and Output Jacks: Standard IN and OUT jacks are provided for connecting the guitar and amplifier, respectively. A 9V DC power input ensures compatibility with common power supplies.

Maintenance Features:

The Pink Flow includes features designed for longevity and user-serviceability, particularly for fine-tuning the effects:

True Bypass Relay Switching: This feature ensures that when the pedal is disengaged, the guitar signal passes through unaffected, preserving the natural tone of the instrument. For the Delay Llama, a buffered bypass option is available when trails mode is active.
Internal Trimmers for Fine-Tuning: The device includes three internal trimmers, accessible by removing the bottom cover. These trimmers allow users to further tweak specific parameters:
1. WaterFall Speed: An internal trimmer allows for adjusting the maximum modulation speed of the WaterFall, providing more granular control beyond the external "SPEED" knob.
2. Delay Llama Repeats: An internal trimmer allows for adjusting the maximum amount of repeats on the Delay Llama, significantly affecting the response of the HOLD function.
3. Delay Llama Trails Decay: An internal trimmer allows for determining the decay rate of the trails when the Delay Llama's trails mode is active, enabling users to customize how gradually the repeats fade out.
Durable Construction: While not explicitly detailed, the design implies a robust construction typical of JAM Pedals, ensuring reliability for gigging and studio use.
Standard Power Input: The use of a standard 9V boss-type DC adaptor (tip-negative) simplifies power management and ensures compatibility with widely available power supplies.
