Jamara E-Rix 450 - Radio Function Instruction; Transmitter Controls and Modes

5
????????
A Simulator connecter
B Battery box
C Batteriy cover
D Charger port
A
B
C
D

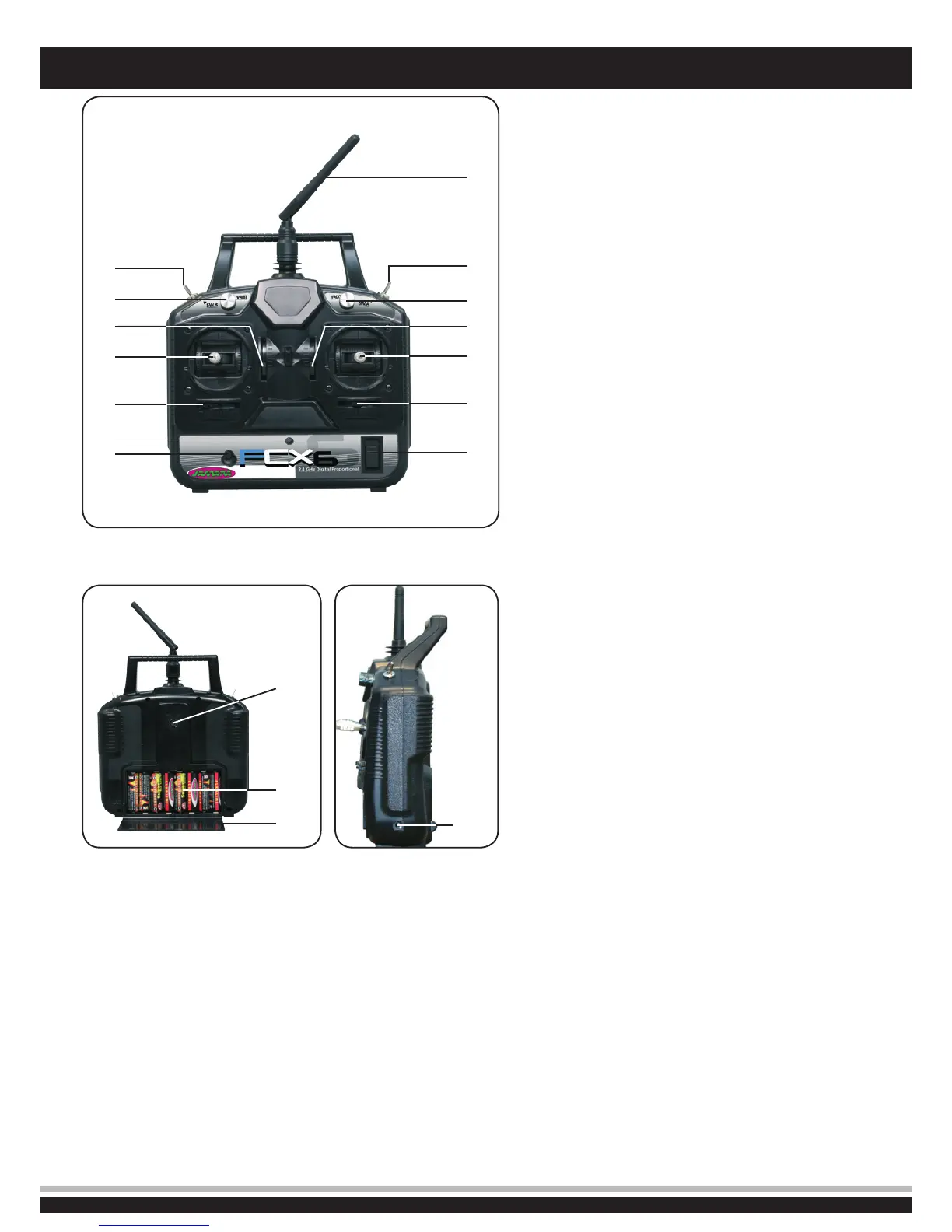

Radio Function Instruction (Transmitter not incl. by ARF & Basic Kit)
Radio Function Instruction Mode 1
1 Antenna
2 Throttle Lock Switch
3 Gyro Sensitivity Adjustment Button
4 Throttle Trim
5 Throttle/Aileron Stick
6 Aileron Trim
7 Power Switch
8 Code Button
9 LED
10 Rudder Trim
11 Elevator/Rudder Stick
12 Elevator Trim
13 Flight Mode Switch
14 Pitch Shift Button
Radio Function Instruction Mode 2
1 Antenna
2 Throttle Lock Switch
3 Gyro Sensitivity Adjustment Button
4 Throttle Trim
5 Elevator Trim
6 Elevator/Aileron Stick
7 Power Switch
8 Code Button
9 LED
10 Rudder Trim
11 Throttle/Rudder Stick
12 Throttle Trim
13 Flight Mode Switch
14 Pitch Shift Button
1
2
3
4
5
6
7
14
13
12
11
10
9
8
