4
Building the Model

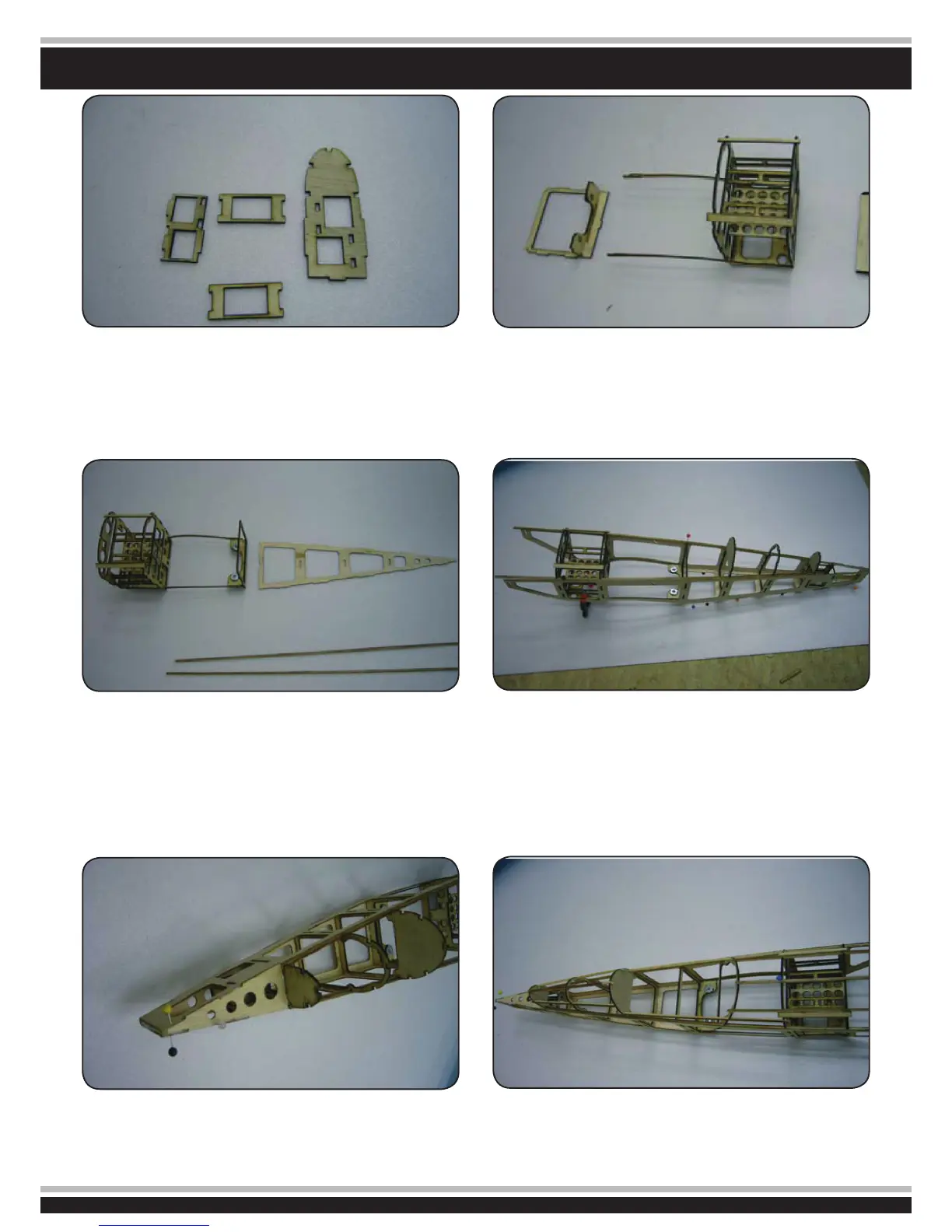

5. Glue the rear servo mounting plates and former together.
6. Securely glue the rear former to the wing plate/fuselage cell
assembly.
7. The lower rear balsa fuselage plate can now be glued on fol
lowed by the servo mounting frame.
9. The elevator seat is now fitted and a piece of 3 mm strip is
used to real the end.
8. Glue a 3 mm stringer into the notches of the left and right
hand fuselage sides and glue them and the formers into
place.
10. Glue the front and rear 3 mm stringers into place leaving
them over-hanging by approx 1 cm.
