Jamis DAKAR XC - Page 35

Seat Stay Pivot Assembly, Part # 12-2610
Item # Description Quantity
3 Bolt – 18.5x9x24.6L, 7075 Alloy 2 60KGF
11 Bearing – 19x6x6W, 626-2RS 2
12 Spacer – 12x6xT1.5, Stainless 2
Seat Tube Pivot Assembly, Part # 12-2609
Item # Description Quantity
5 Bolt – 13.5x9x21.6L, 7075 Alloy 2 60KGF
7 Bearing – 14x6xT5, #696 2
8 Axle 1
9 Spacer – 11x8xT3.0, Stainless 2
Bottom Bracket Pivot Assembly, Part # 12-4050
Item # Description Quantity
13 Bolt – 29.5x17x3.0x25L, 7075 Alloy 2 130KGF
14 Bearing – 30x17xW7, #6903-2RS 2
15 Spacer – 24x17xT3.5, Stainless 2
16 No Head Screw, M12x1.75x52L 1
Drop Out Pivot Assembly, Part # 12-2602
Item # Description Quantity
20 Axle Set – M6x1.0/8x15L 2 Sets 60KGF
19 Bearing – 19x8xW6 2
Bell Crank, Part # 12-2317
Item # Description Quantity
4 Bell Crank – Alloy 1
Shock Mounting Bolts, Part # 12-2615
Item # Description Quantity
1 Flat head hex bolt, F – 10xM6x1.0xL34 1 80KGF
10 Flat head hex bolt, R – 10xM6x1.0xL37 1
2 Bolt – M6x1.0x17L 2
Derailleur Hanger, Part # 12-6675
Item # Description Quantity
18 Mounting Bolt 1 Set
17 Alloy Hanger 1
www.jamisbikes.com
www.jamisbikes.com

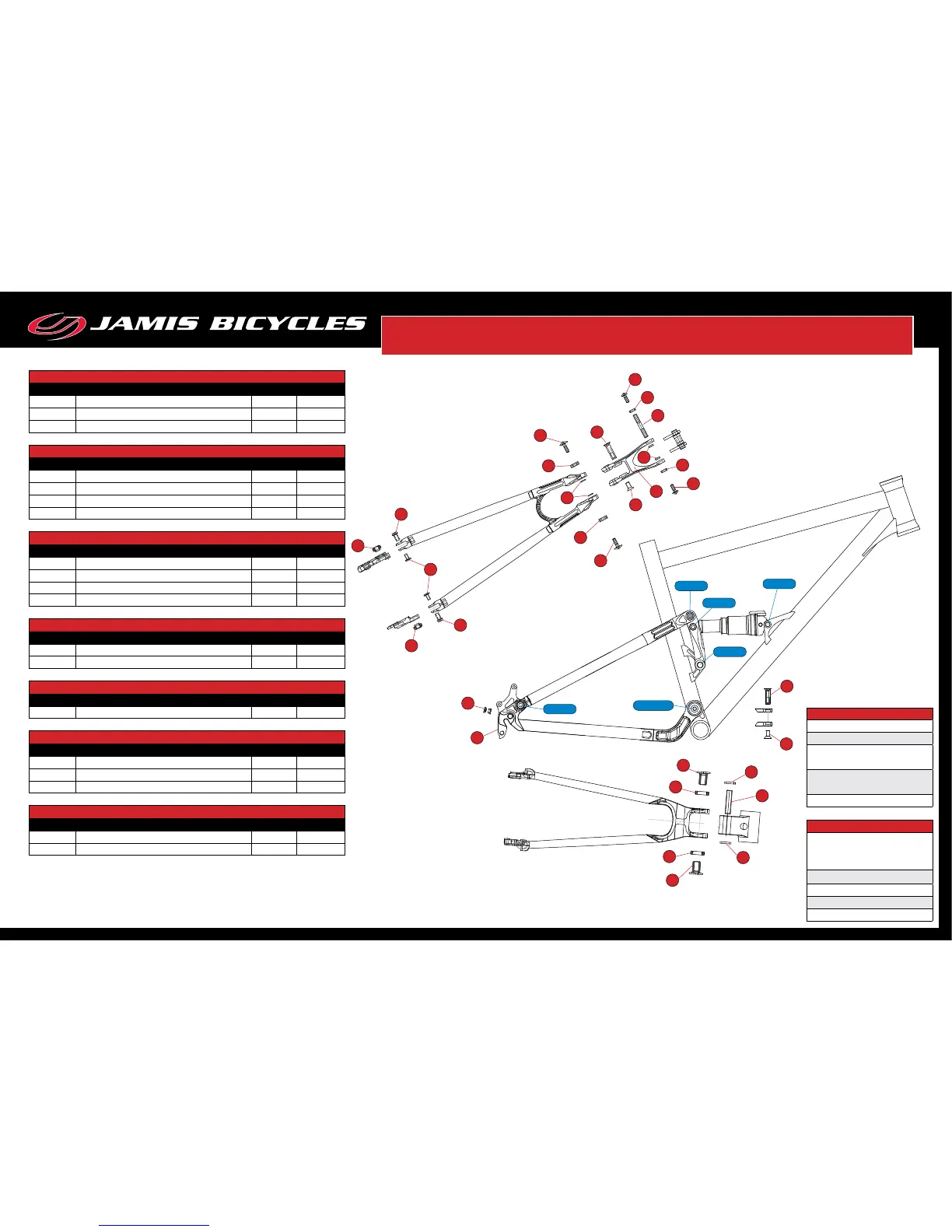

DAKAR XCR (alloy) PARTS & TECHNICAL INFORMATION
80 KGF
60 KGF
80 KGF
60 KGF
60 KGF
130 KGF
3
11
12
20
20
20
19
19
11
3
10
2
5
5
7
8
7
9
18
17
1
2
15
16
15
13
14
14
13
4
Shock Specications
Eye to Eye – 165mm
Stroke – 38mm
Mounting Hardware Front –
10x22.4mm
Mounting Hardware Rear –
10x22.2mm
Sag Suggestion 8-14mm
Frame Specications
Heat tube: 44mm I.D. Zero
Stack, Internal Cup type,
1-1/8”
BB Shell – 68mm
Rear axle Spacing – 135mm
Seat Tube I.D. - 31.6mm
Seat Tube O.D. - 34.9mm
