Jamis DAKAR XC - Dakar Series

13
16
18
3
4
4
3
2
2
1
17
13
12
8
9
10
10
5
5
5
5
6
6
7
7
6
11
9
8
9
14
15
11
14
9
13
80 KGF
60 KGF
80 KGF
60 KGF
60 KGF 130 KGF
Shock Specications
Eye to Eye – 165mm
Stroke – 38mm
Mounting Hardware Front –
10x22.4mm
Mounting Hardware Rear –
10x22.2mm
Sag Suggestion 8-14mm
Frame Specications
Heat tube: 44mm I.D. Zero Stack,
Internal Cup type, 1-1/8”
BB Shell – 68mm
Rear axle Spacing – 135mm
Seat Tube I.D. - 31.6mm
Seat Tube O.D. - 34.9mm
Seat Stay Pivot Assembly, Part # 12-2608
Item # Description Quantity
8 Bolt – M6x1.0x21L Stainless 2 60 KGF
9 Bearing Cap – Alloy 2
10 Bearing – 19X06X6W, 626-2RS 2
11 Spacer – 12x08xT3, Stainless 2
Seat Tube Pivot Assembly, Part # 12-2607
Item # Description Quantity
9 Bearing Cap – Alloy 2 60 KGF
11 Spacer – 12x08xT3, Stainless 2
13 Bolt – M6x1.0x13L, Stainless 2
14 Mini Bearing – 14x8x4W 2
15 Axle – 7.98x56xM6x1.0x20 1
Bottom Bracket Pivot Assembly, Part # 12-2600
Item # Description Quantity
1 No head screw – M12x1.75x46L, Stainless 1 130 KGF
2 Spacer – 24x17x3.5W, Stainless 2
3 Bolt – 16.95x25-21x2.5, Stainless 2
4 Bearing – 30x17xW7, #6903-2RS 2
Drop Out Pivot Assembly, Part # 12-2601
Item # Description Quantity
5 Axle Set – 8x16L-M6x1.0 2 Sets 60 KGF
6 Spacer – 15x8.2x2W 4
7 Bearing – 19x8x6W 2
Bell Crank, Part # 12-2614
Item # Description Quantity
17 Bell Crank – Carbonber 1
Shock Mounting Bolts, Part # 12-2616
Item # Description Quantity
16 Axle set -Front 1 80 KGF
12 Axle – Rear 1
13 Axle Bolt – Rear 1
Derailleur Hanger, Part # 12-6675
Item # Description Quantity
18 Mounting Bolt 1 Set
18 Alloy Hanger 1
www.jamisbikes.com
www.jamisbikes.com

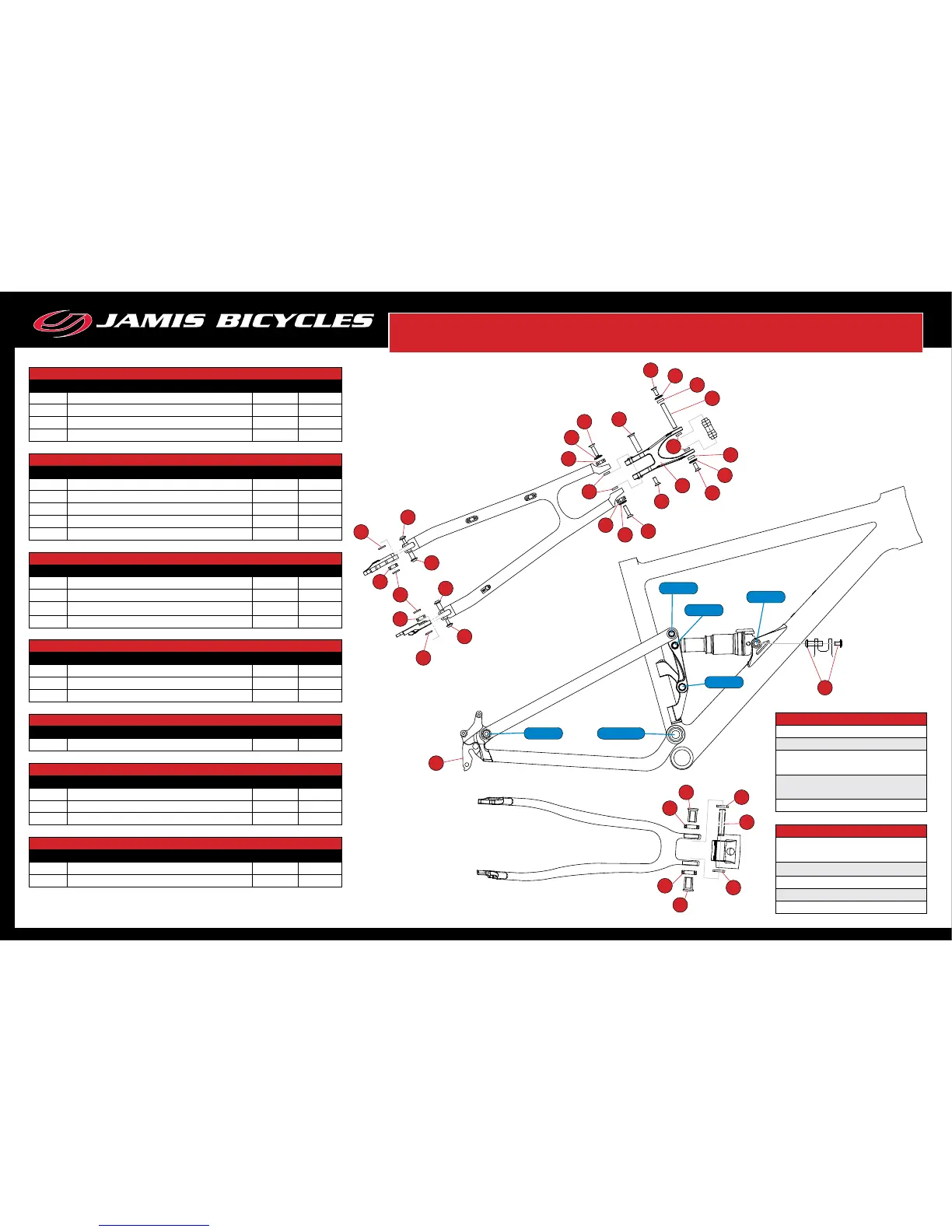

DAKAR XCR (carbon) PARTS & TECHNICAL INFORMATION
