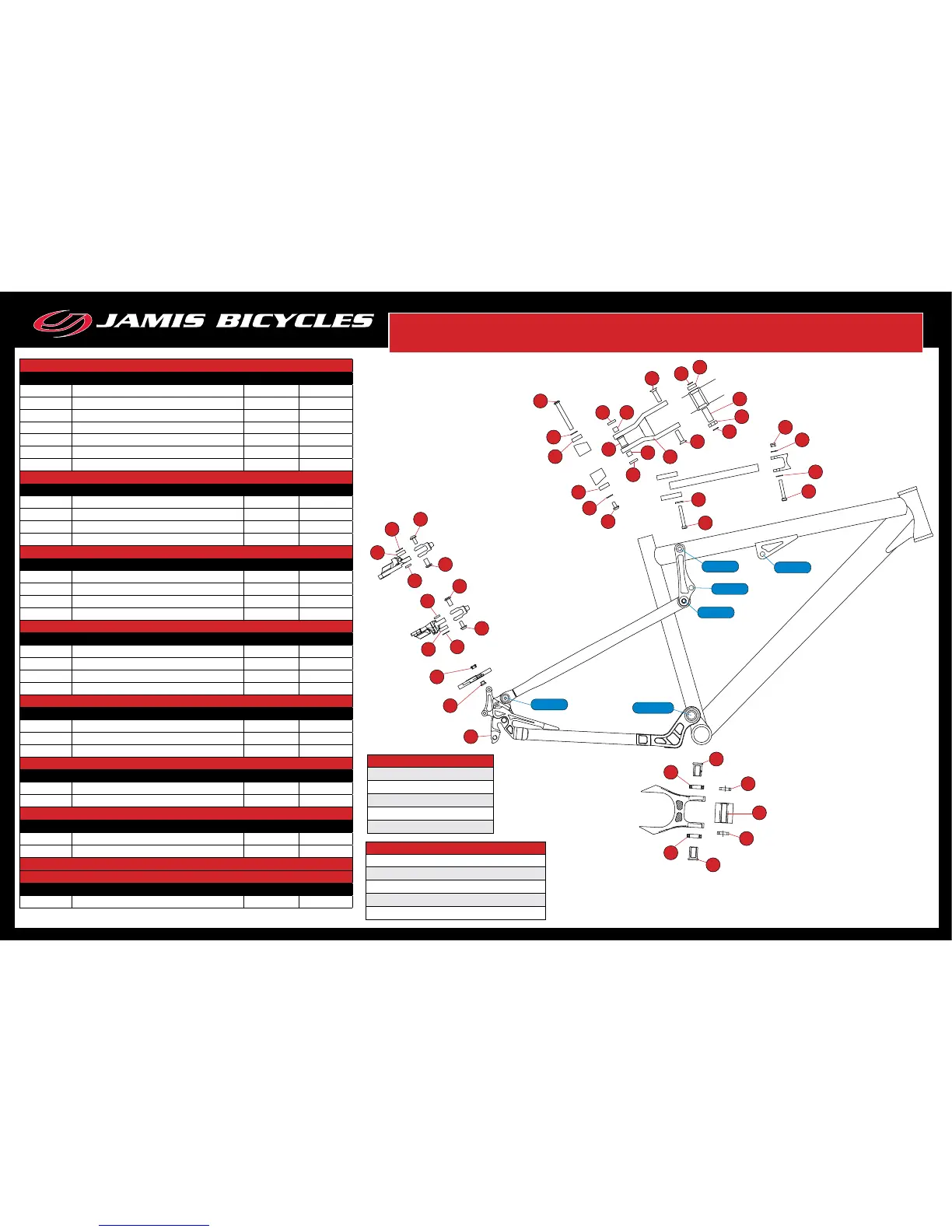

DAKAR XC PARTS & TECHNICAL INFORMATION
Seat Stay Pivot Assembly Kit, Part # 12-2281
Item # Description Quantity
5 Alloy Sleeve, 15x24Lx8, Alloy 1
11 Bell crank Bushing, Alloy 2
25 Spacer, 18x8xT4.0 2
6 Bearing, 608RS 22x8x7W 2
19 Axle Waser, M8x16xT1.0 1
16 Bolt Washer, 14x6.5xT1.0 1
10 Axle Set, M6x1.0x8x63L 1 80 KGF
Top Tube Pivot Assembly Kit, Part # 12-3200
Item # Description Quantity
1 Sleeve, 12x30L M8x1.25, 6061 1 60 KGF
2 Bearing, 698zz 22x8x6W 2
23 Spacer, 12x8.4xT1 2
4 Bolt, M8x1.25x25LxT25 2
Bottom Bracket Pivot Assembly Kit, Part # 12-2003
Item # Description Quantity
26 No Head Screw – M12x1.75x46mm 1 130KGF
12 Spacer- 4.5x24x17 2
9 Bearing – 30x17xW7, 6903RS 2
7 Bolt – 29.5x17x3.0x25L, ALLOY 2
Drop Out Pivot Assembly Kit, Part # 12-2279
Item # Description Quantity
13 Axle Set 2 Sets 60KGF
8 Spacer, 13x8.1xT3.0 2
19 Spacer, 16x8.5xT1.0 2
2 Bearing, 698zz 22x8x6W 2
Shock Bolt Front Assembly Kit, Part # 12-1080
Item # Description Quantity
14 Bolt, M6x1.0x40LxT20 1 80 KGF
16 Washer, 14x6.5xT1.0 2
15 Nut, M6x1.0x8x45.5L 1
Shock Bolt Rear Assembly Kit, Part # 12-1082
Item # Description Quantity
18 Bolt, M6xP1.0x44LxT2.0 1 80 KGF
22 Washer, M6x16xT2.0 1
Derailleur Hanger Assembly Kit, Part #12-6675
Item #
Description
Quantity
20 Alloy Hanger 1
21 Mounting bolt 1 Set
Bell Crank Assembly, 13-15” Frames Part #12-2282
Bell Crank Assembly, 17-23” Frames Part # 12-2283
Item # Description Quantity
3 Bell Crank, Alloy Size Specic 1
4
25
5
25
10
19
6
10
18
22
16
16
14
15
16
6
11
11
3
23
2
2
1
23
4
20
21
2
19
13
2
19
13
13
13
8
8
21
9
9
7
7
12
12
26
60 KGF
80 KGF
80 KGF
80 KGF
60 KGF
130 KGF
Frame Specications
Heat tube: 1-1/8” Cup Type
BB Shell – 68mm
Rear axle Spacing – 135mm
Seat Tube I.D. - 31.6mm
Seat Tube O.D. - 31.8mm
Shock Specications
Eye to Eye – 165mm
Stroke – 38mm
Mounting Hardware Front – 6 x 22.2mm
Mounting Hardware Rear – 6 x 24mm
Sag Suggestion 8-14mm
