PARKER PARTS & TECHNICAL INFORMATION
Frame Specications
Heat tube: 44mm I.D. Zero Stack,
Internal Cup type, 1-1/8”
BB Shell – 73mm
Rear axle Spacing – 135mm
Seat Tube I.D. - 31.6mm
Seat Tube O.D. - 34.9mm

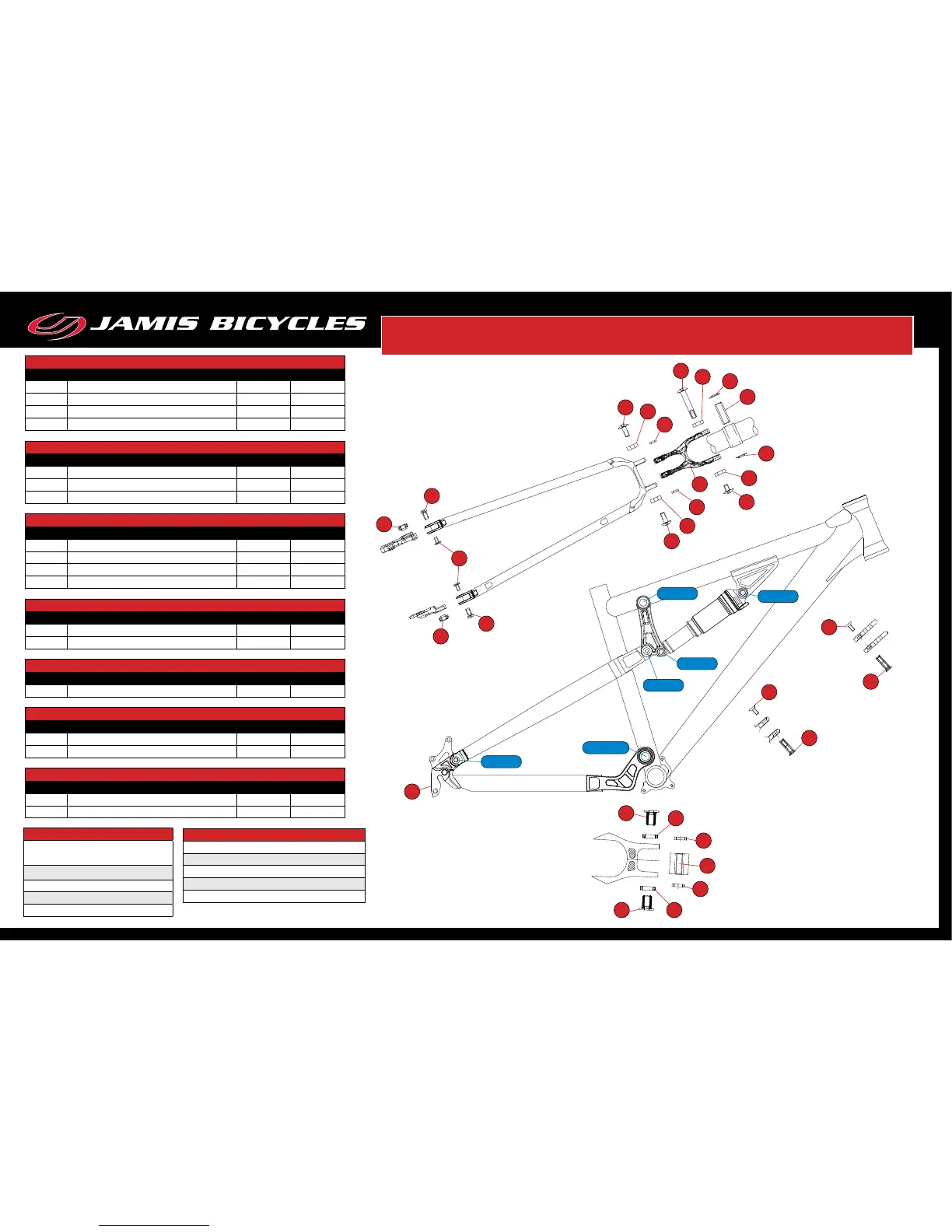

Top Tube Pivot Assembly, Part # 12-2606
Item # Description Quantity
10 Axle – Alloy 1 60 KGF
9 Bearing – 22x8x7W, 608RS 2
5 Top Hat Spacer, Alloy 2
2 Frame Bore Sleeve, Alloy 1
Seat Stay Pivot Assembly, Part # 12-2605
Item # Description Quantity
9 Bearing – 22x8x7W, 608RS 2 80 KGF
1 Bolt – 10x8x20L 2
7 Spacer – 14x8xT3.0, Stainless 2
Bottom Bracket Pivot Assembly, Part # 12-2003
Item # Description Quantity
13 No Head Screw – M12x1.75x46mm 1 130KGF
14 Spacer- 4.5x24x17 2
15 Bearing – 30x17xW7, 6903RS 2
16 Bolt – 29.5x17x3.0x25L, ALLOY 2
Drop Out Pivot Assembly, Part # 12-2602
Item # Description Quantity
18 Axle Set 2 Sets 60KGF
19 Bearing – 19x8x6L 2
Bell Crank, Part # 12-2611
Item # Description Quantity
22 Bell Crank, ALLOY 1
Shock Mounting Bolts, Part # 12-2321
Item # Description Quantity
11 Axle – 10xM6x1.0xL34 2 80KGF
12 Bolt 2
Derailleur Hanger, Part # 12-6675
Item # Description Quantity
17 Mounting Bolt 1 Set
17 Alloy Hanger 1
Shock Specications
Eye to Eye – 200mm
Stroke – 50mm
Mounting Hardware Front – 10x22.4mm
Mounting Hardware Rear – 10x22.4mm
Sag Suggestion 10-15mm
