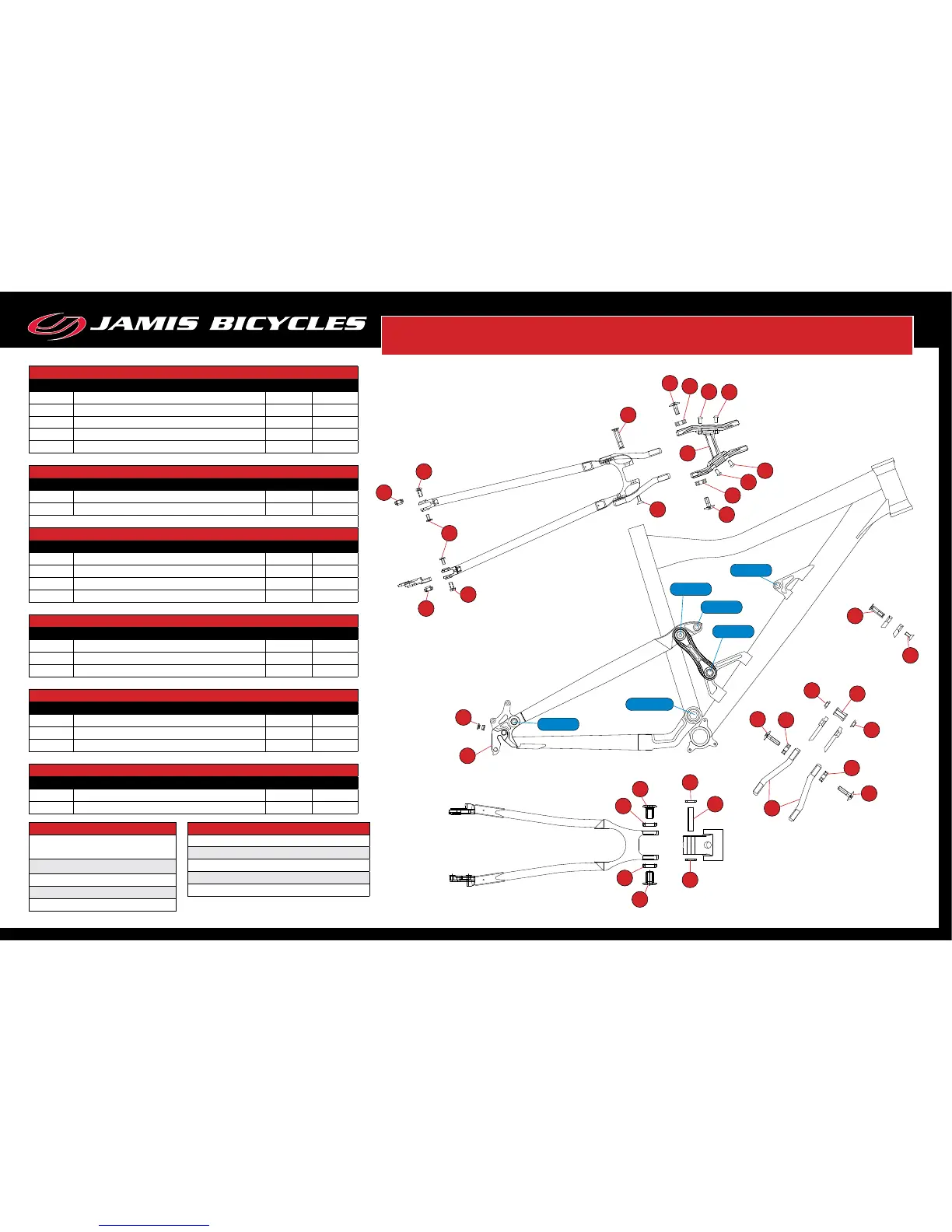

DAKAR XAM PARTS & TECHNICAL INFORMATION
Bell Crank Pivot Assembly, Part # 12-2604
Item # Description Quantity Tourque
04 Bearing – 24x08xT8, 628-ZZ 4
05 Nut – 08x27L,M8x1.125, 6061-T6 1
06 Bolt – 23.5x36.5L, 7075 2 60KGF
07 Bolt – 23.5x26.5L, 7075 2 60KGF
17 Spacer – 8.1x12x18xT6.0, 6061 2
Drop Out Pivot Assembly, Part #12-2602
Item # Description Quantity
14 Axle – M6x1.0/08xL15 2 Sets 60KGF
16 Bearing – 19x08xW6 2
Bottom Bracket Pivot Assembly, Part # 12-4050
Item # Description Quantity
08 Bolt – 29.5x17x2.5x25L, 7075-T6 2 130KGF
09 Bearing – 30x17xW7, #6903-2RS 2
10 Spacer – 24x17xt3.5, Stainless 2
11 No head Screw – M12x1.75xL52, Stainless 2
Bell Crank, Part # 12-2612
Item # Description Quantity
19 Bridge – 7005 1
20 Bolts – M6x1.0xL12 4
03 Bell Crank Arms, 7005 2
Shock Mounting Bolts, Part # 12-2308
Item # Description Quantity
15 Axle – 10xM6x1.0xL45 1 80KGF
01 Axle – 10xM6x1.0xL34 1 80KGF
02 Bolt – M6x1.0xL17 2
Derailleur Hanger, Part # 12-6675
Item # Description Quantity
12 Mounting Bolt 1 Set
13 Alloy Hanger 1
80 KGF
60 KGF
80 KGF
60 KGF
60 KGF
130 KGF
7
4
19
20
20
4
7
14
14
14
16
16
12
13
8
9
9
8
10
10
11
6
4
4
17
5
2
1
17
6
3
15
2
20
20
Frame Specications
Heat tube: 44mm I.D. Zero Stack,
Internal Cup type, 1-1/8”
BB Shell – 73mm
Rear axle Spacing – 135mm
Seat Tube I.D. - 31.6mm
Seat Tube O.D. - 34.9mm
Shock Specications
Eye to Eye – 165mm
Stroke – 57mm
Mounting Hardware Front – 10x22.4mm
Mounting Hardware Rear – 10x33.4mm
Sag Suggestion 14-19mm
