Page 13
ENGLISH
Jandy
®
AquaLink
®
TCX™ Power Center
|
Installation & Operation Manual
Jandy
®
AquaLink
®
TCX™ Power Center
|
Installation & Operation Manual
4.1.1 Low Voltage Wiring
NOTE: Permanently separate high and low voltage wiring by
using corrugated tubing.
1. Connect the low voltage RS-485
communication wires.
2. Locate the two input power cables that come
from the breaker, see Figure 12 (a).
3. Connect one ‘Line’ input to Terminal 1 and the
other to Terminal 3, see Figure 12 (b).
4. If JVA is present, thread JVA connector through
the lower right corner of the board, through the
side knockout and strain relief tting.
5. Connect JVA cable, see Figure 12 (c).
LVH SOLAR WATER AIR SPARE
a
b
1 2 3 41 2 3 4
c

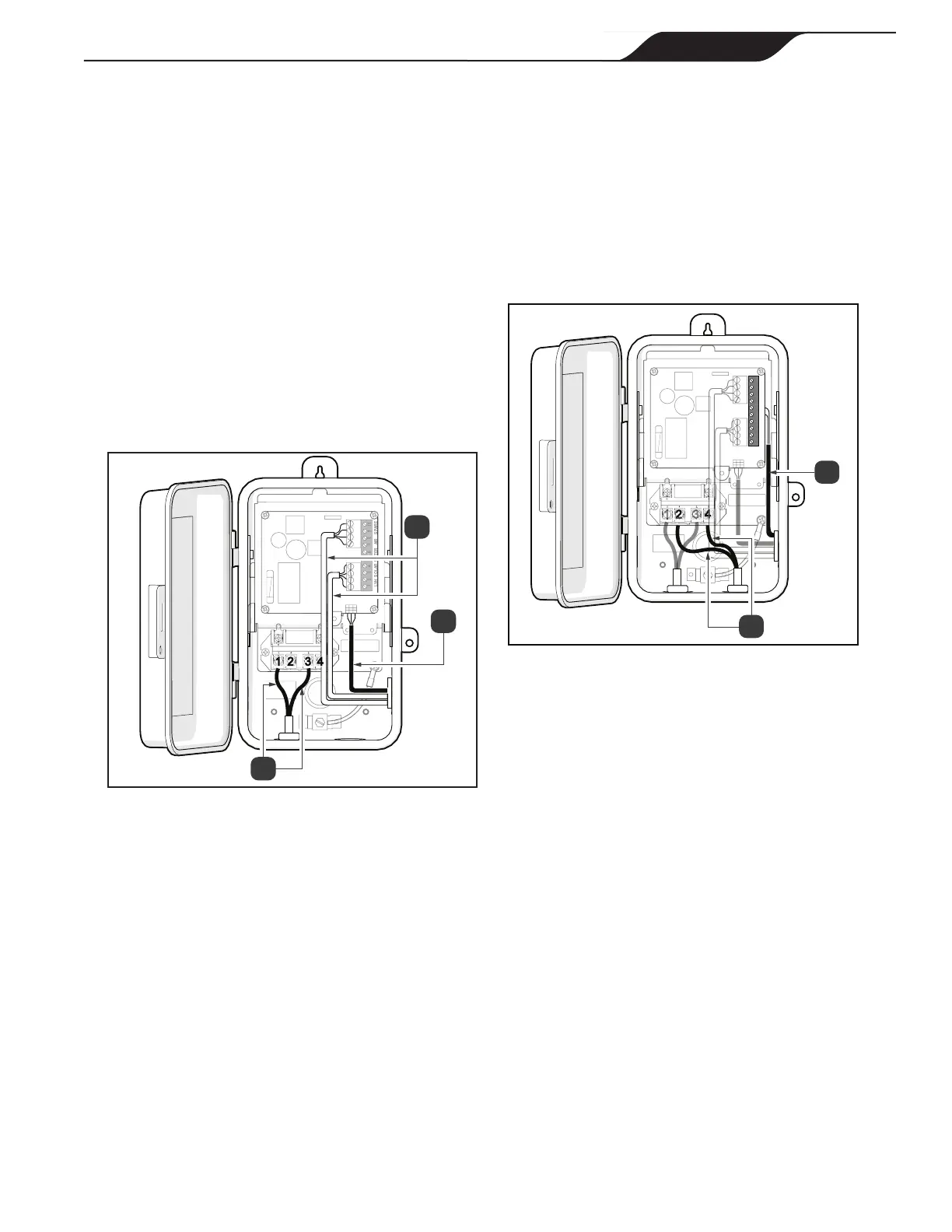

Figure 12. Pool Only Version, Connect Line Inputs &
JVA Cable
6. Install Low Voltage Wires. Install the wires for
the temperature sensor connections through the
side knockout, see Figure 13 (a).
7. Connect wires in the order listed on the board.
8. Connect Equipment (Lighting/Salt/Pump).
Measure the distance from the equipment to the
enclosure.
9. Cut a piece of 1/2ʺ electrical conduit to match
this distance.
10. Feed the cables from the equipment through the
conduit and into the AquaLink TCX enclosure.
11. Press the conduit into the terminal adapter.
12. Connect the ground wire to the green screw located
on the AquaLink TCX chassis. The ground wire
will be green/yellow.
13. Locate the two input cables that come from the
equipment.
14. Connect one “Load” input to Terminal 2 and the
other to Terminal 4, see Figure 13 (b).
15. Check all connection points and wiring for secure
connections.
a
2
1 2 3 4 5 6 7 8 9 10
LVH SOLAR WATER AIR SPARE
4
b
Figure 13. Connect Load Input Cables
16. If bottom half of dead panel needs to be removed
use some diagonal pliers to cut the two rear tabs,
see Figure 14 (a).
17. Cut dead panel label across dead panel opening, see
Figure 14 (b).
18. Swing dead panel bottom back and forth until front
tabs break o, see Figure 14 (c).
To Next Page
