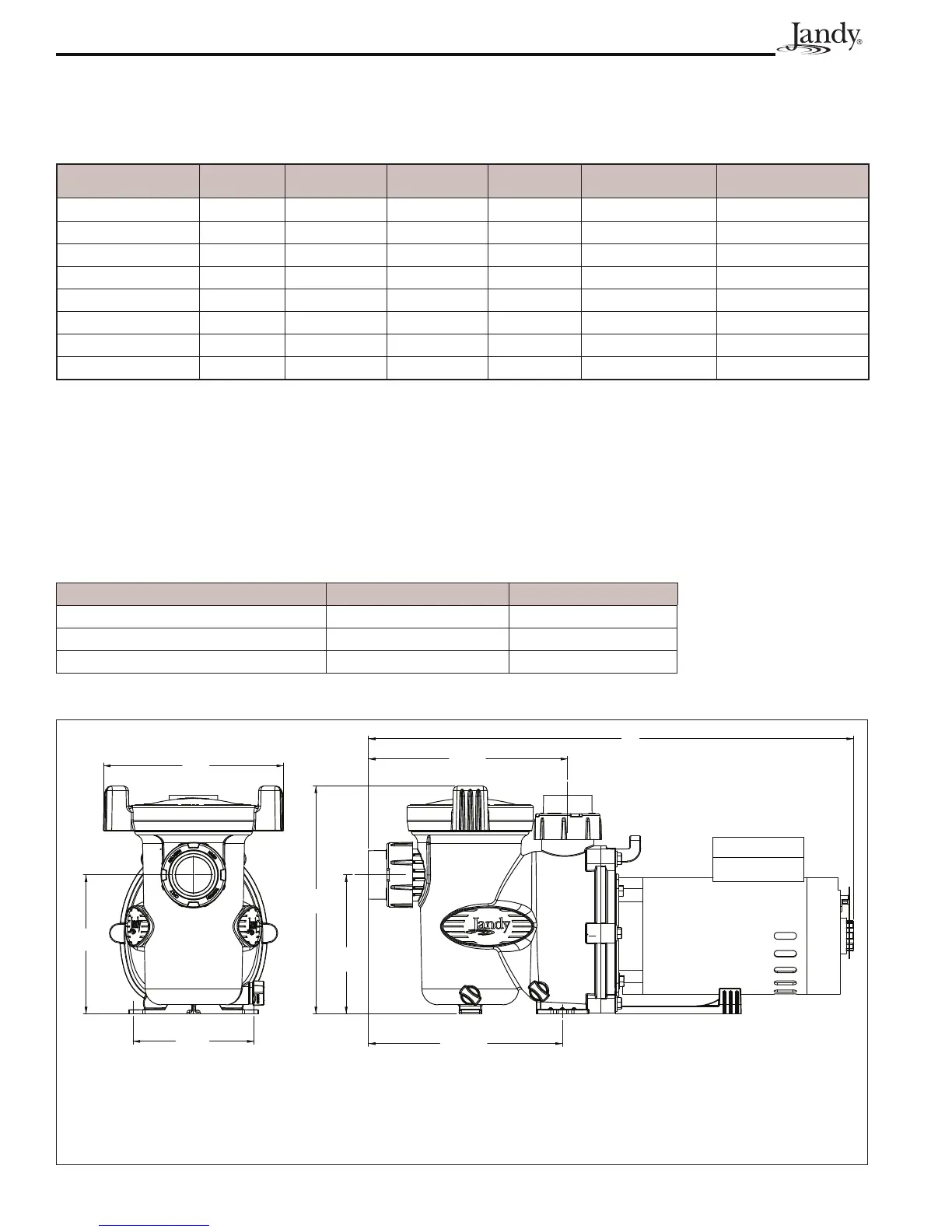

Page 22
FloPro Series Pumps Installation and Operation Manual
7.4 Physical and Operational Specifications
7.4.1 Specifications
Model No. HP Voltage Amps Pipe Size Carton Weight Overall Length 'A'
FHPM .75 0.75 230/115 5.4/10.8 1½-2" 40.6 25 3/16"
FHPM 1.0 1.00 230/115 7.1/14.2 2-2½" 41.2 25 3/16"
FHPM 1.5 1.50 230/115 8.0/16 2-2½" 42.6 25 ½"
FHPM 2.0 2.00 230/115 11.2/22.4 2-2½" 54.6 27 3/16"
FHPM 2.5 2.50 230 11.5 2½-3" 48.6 26 3/16"
FHPM 1.0-2-SPD 1.00 230 7.1/2.3 2½-3" 46.5 26 5/16"
FHPM 1.5-2SPD 1.50 230 8.0/3.0 2½-3" 48.0 26 9/16"
FHPM 2.0-2SPD 2.00 230 11.2/3.5 2½-3" 52.9 27 11/16"
7.4.2 Dimensions
Table 5 shows the height of the FHP pump in the three (3) mounting configurations listed below. Figures 2, 3 and
6, on page 9, show drawings of these three (3) configurations.
1) Without the FHP base
2) With the FHP base
3) With the FHP base and spacers
The width of the FHP base (with or without spacers) is 8⅞".
Table 5. FHP Mounting Configurations
FHP Mounting Configurations Suction Side Height Pump Height
FHP Pump without Base 7 ¾" 12¾"
FHP Pump with Base 8⅞"13⅞"
FHP Pump with Base and Spacers 9⅛"14⅛"
Figure 16 shows the dimensions (height, width, and length) of the FHP pump without the FHP base and spacers.
6 ¾"
7 ¾"
10"
10 ⅞"
7 ¾"
12 ¾"
11 ⅛"
'A'
NOTE See Table 3, column 7 for the value of 'A'.
Bolt Holes,
Center to Center
Front Edge of Union,
to Center of Bolt Holes
NOTE When installing the pump, leave a minimum of two feet (2 ft) of clearance
above the pump for removal of the strainer basket.
Figure 16. FHP Pump Dimensions (without Base or Spacers)
Table 4. FHPM Pump Specifications
