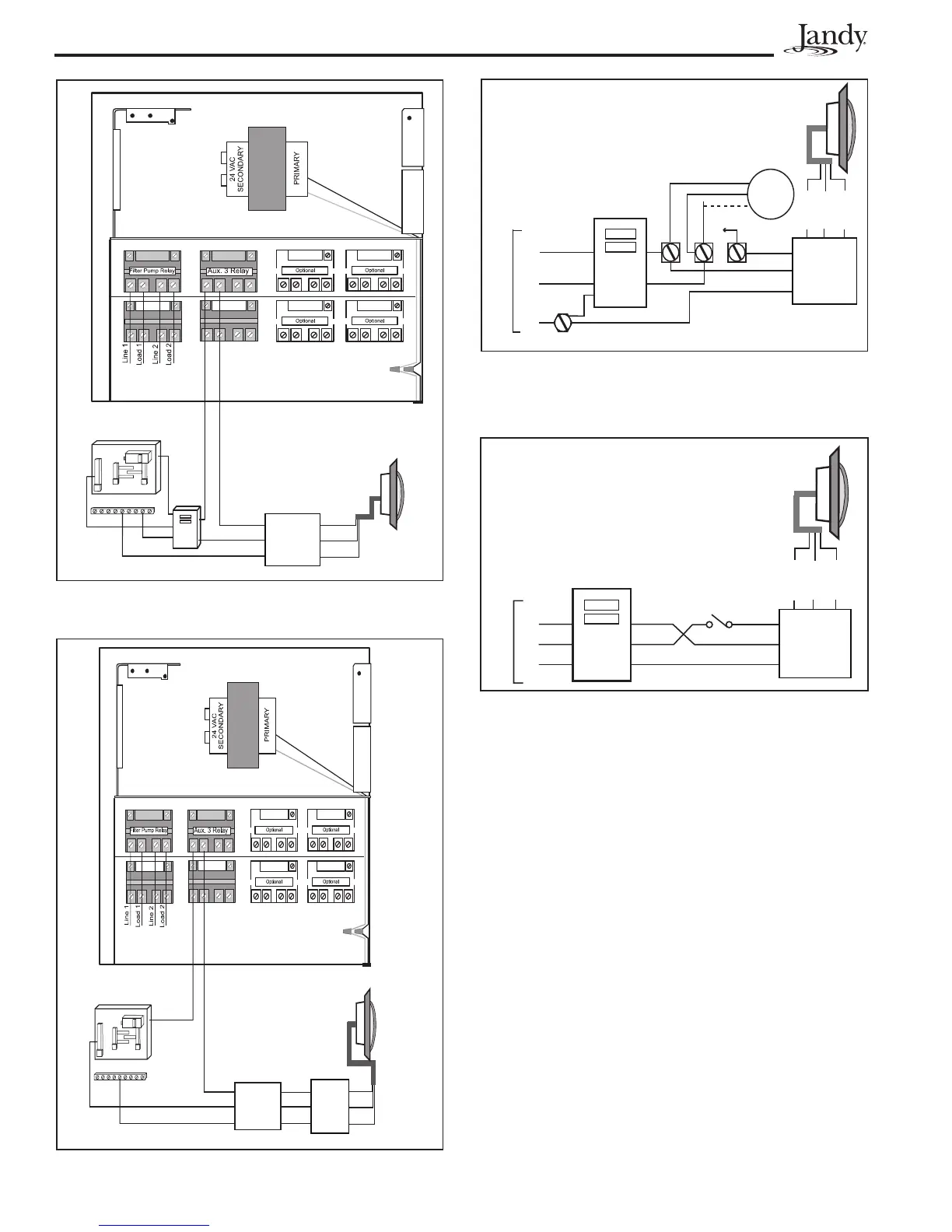

Figure 2. 120-Volt Jandy WaterColors Light Wiring
Diagram
GFCI
Black
White
Green
Ground
Ground
Neutral
120 VAC
Power Supply
Black
White
Green
JUNCTION
BOX
120V
LED
Light
Figure 3. 12-Volt Jandy WaterColors Light Wiring
Diagram
Black
White
Green
Ground
Neutral
120 VAC
Power Supply
Black
White
Green
JUNCTION
BOX
12V
LED
Light
120V/12V
Transformer
Black
White
Green
Figure 4. Wiring the Jandy WaterColors Light to a
Time Clock
Clock
Motor
Ground
Ground
Neutral
Line
A
1
2
GFCI
Black
White
Green
Black White Green
JUNCTION
BOX
120V
LED
Light
120 V
SUPPLY
Figure 5. Wiring the Jandy WaterColors Light to a
Switch
Ground
Ground
Neutral
Line
120 V
Supply
GFCI
Black
White
Green
JUNCTION
BOX
Black
White
SWITCH
Black White Green
120V
LED
Light
