2 Speed Boat Trailer Winch Owner’s Manual
1
Winches are not intended (1) for the movement of people and (2) as a load securing device for boats on trailers
(T) +61 (0)8 8243 9100 (F) +61 (0)8 8243 9185 Toll Free Sales: 1 300 135 935
Email: sales@advansa.com.au Web: www.advansa.com.au

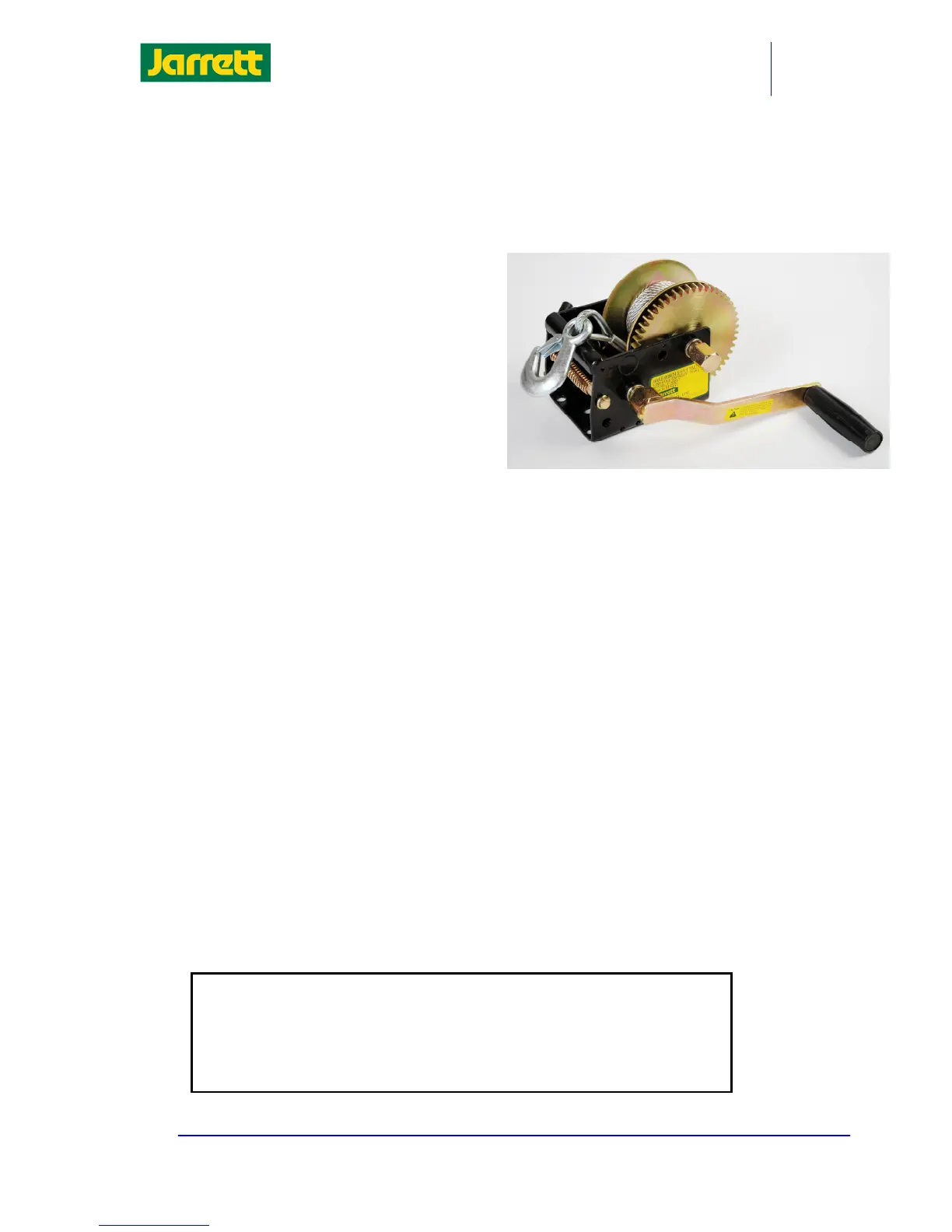

Boat Trailer Winch
2 speed 5:1 / 1:1 ratio model (700kg)
Model: No Cover Cover
Webbing F10206 F10206WC
Fibre Rope F10207
Winch only F10218
Cable (Ø5mm) F10217
Gear Ratio 5:1 / 1:1
Application Pulling
Rated Capacity (using Ø5mm Cable) 700kg (6860N)
Rated Capacity (using Ø6mm Fibre Rope 700kg (6860N)
Rated Capacity (using Webbing) 700kg (6860N)
Mass (Winch only) 4.1kg F10217
Type of Ratchet Lever Action
Drum Diameter 50mm
Flange Diameter 127mm
Drum Width 52mm
Maximum Cable capacity 15m x Ø5mm
Maximum Fibre Rope capacity 12m x Ø6mm
Maximum Webbing capacity 9m
Max. Effort on handle at Rated Load 25kg
Breaking Strain – Cable (Ø5mm) 1855kg
Breaking Strain – Fibre Rope (Ø6mm) 2050kg
Breaking Strain – Webbing 2070kg
Cable (Galv) / Webbing as supplied 6m x Ø5mm / 6m
Fastening Device Snap Hook
Note: These winches are not to be used for lifting
Features include:
Heavy duty 4mm winch body, Steel bushes, Machined gears, Spare parts available, Electroplated zinc cobalt, Powder coated finish,
Detachable handle
These winches are recommended for boat size up to 6 metres, aluminium or fibreglass hull boat, where trailer design
is unknown or has no keel rollers or side wobbles.
For fast slack cable retrieval, use the 1:1 ratio to retrieve slack cable, when the cable becomes under a load too heavy to operate then
use the 5:1 to complete the retrieval of the boat.
The winch is equipped with removable handle for change of ratio option.
Please record the following:
Date Purchased: _______________ Where Purchased: ____________________________
Model No: ____________________ Serial No: ______________________
This information (and receipt) is required should a warranty claim be necessary.
