INSTALLATION
This switch may be used in new installations or to replace
an existing wall switch when converting a 3 or 4 way circuit
to Z-Wave. It can not be used by itself for 2-way control
(one switch & one load).
Please note: The Auxiliary switch(s) must be wired to
the same Neutral as the Z-Wave enabled switch and the
lighting device. It must not be wired to any other Neutral. If
multiple Neutrals are tied together in one box, separate the
neutrals to preserve the integrity of the circuit.

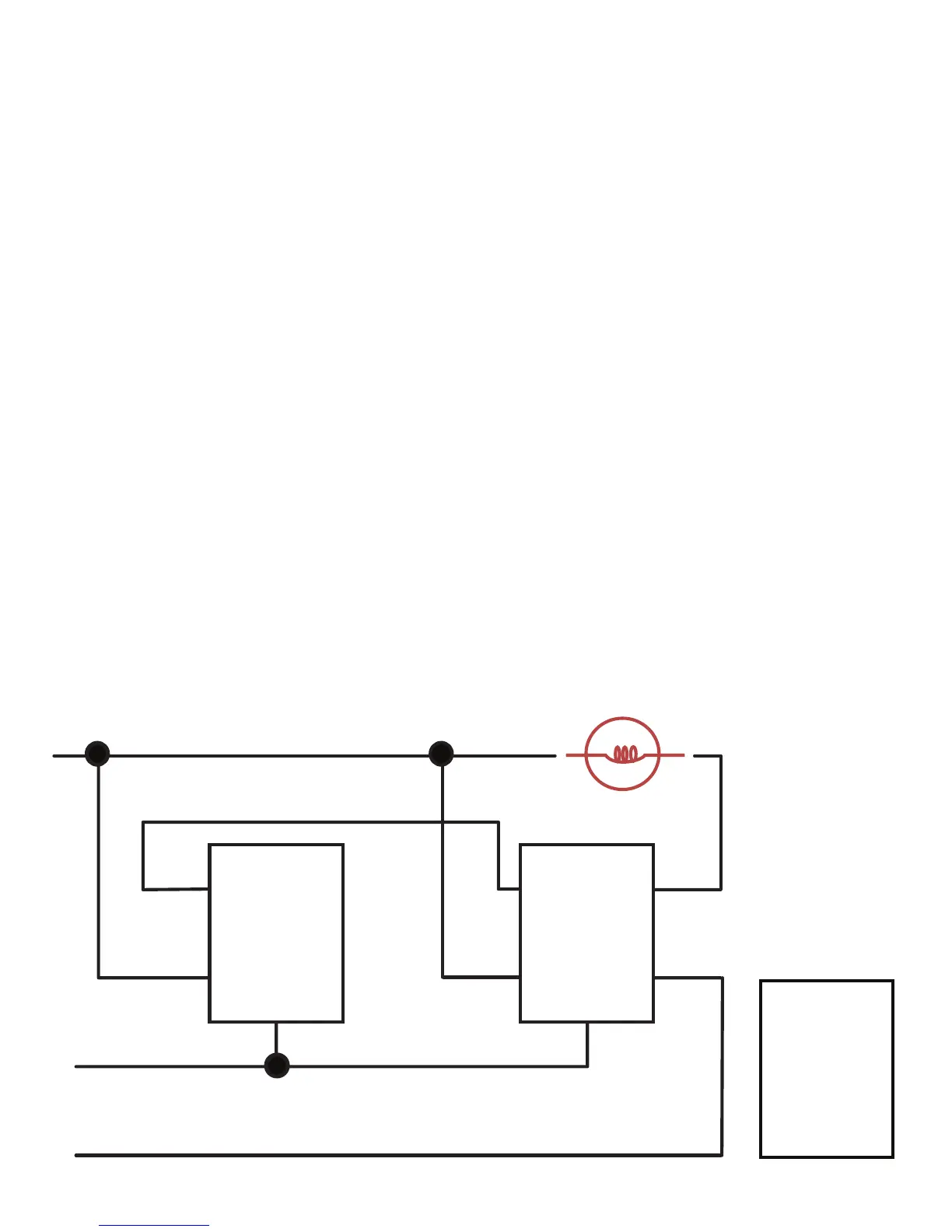

3-Way Wiring Schematic using one 45710 and one
45709, 45712 or 45715.
White (Neutral)
Z-Wave
Z-Wave
Black (Line / Hot)
Black
(Load)
Traveler Colored (Not Green)
Green (Ground)
*The
45715
does not have
a connection
to neutral
auxiliary primary
To Next Page
