DTC P0762 SHIFT SOLENOID VALVE C STUCK ON
Revision: November 2006 2006 Altima
TCM terminal and data are reference value. Measured between each terminal and ground.
Diagnostic Procedure
ECS009GS
1. CHECK SHIFT SOLENOID VALVE C SIGNAL
With CONSULT-II
1. Start engine.
2. Select “A/T” with “DATA MONITOR” mode in CONSULT-II.
3. Drive vehicle and read out the value of “SFT SOL C OUT” and
“SFT SOL C MON”.
Without CONSULT-II
1. Drive vehicle.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 7.
NG >> GO TO 2.
Terminal
Wire
color
Item Condition Data (Approx.)
37 R/B
Shift solenoid
valve C
When shift solenoid valve C operates.
(When driving in 1st, 2nd, 3rd or reverse gear.)
Battery voltage
When shift solenoid valve C does not operate. 0V
Monitor item Condition Indication
● SFT SOL C OUT
● SFT SOL C MON
When shift solenoid valve C operates.
(When driving in 1st, 2nd, 3rd or reverse gear.)
ON
When shift solenoid valve C does not operate. OFF

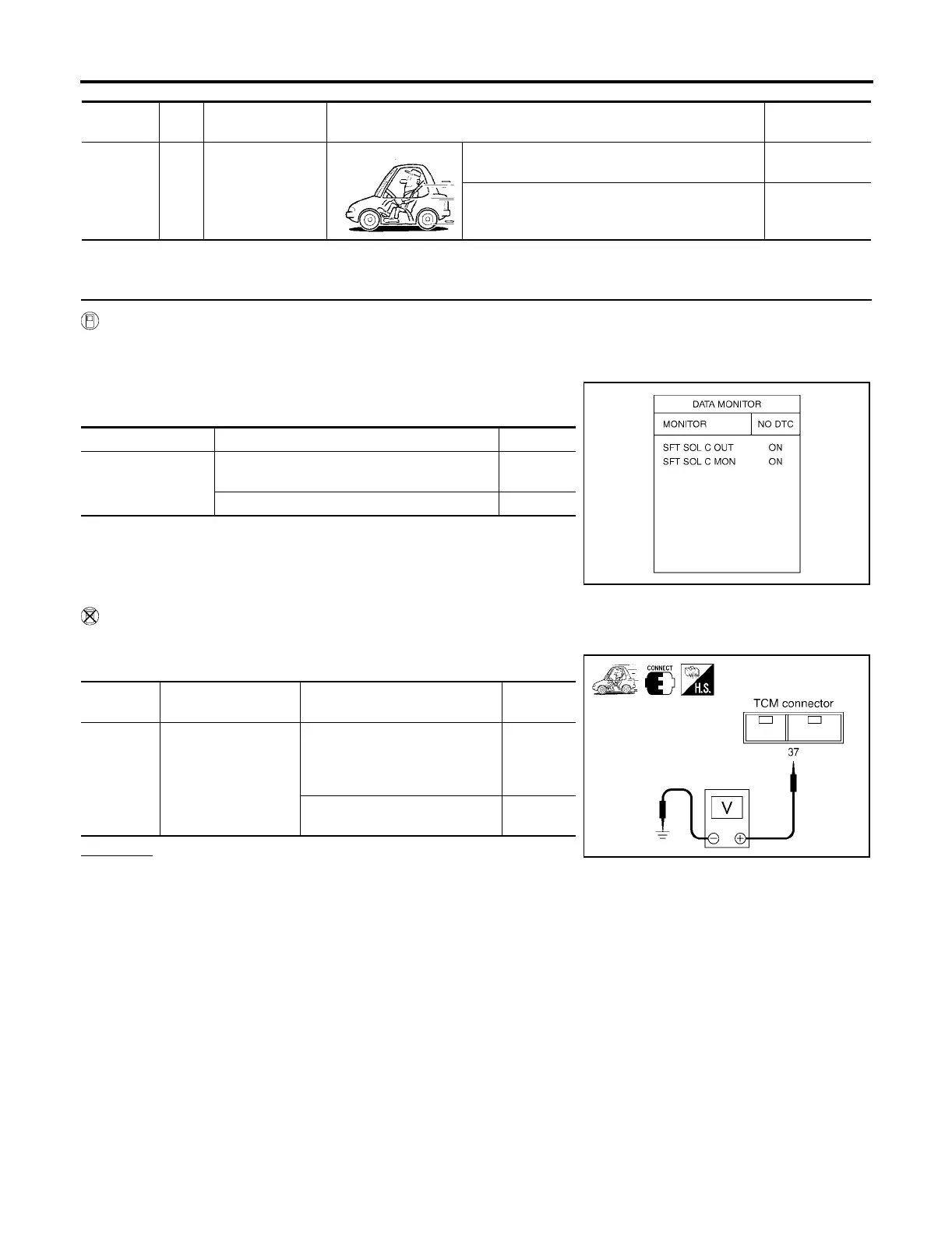

SCIA2883E
Connector Terminal Condition
Voltage
(Approx.)
F57 37 - Ground
When shift solenoid valve C
operates.
(When driving in 1st, 2nd, 3rd or
reverse gear.)
Battery
voltage
When shift solenoid valve C
does not operate.
0V
SCIA2884E
To Next Page
