4. Clutch Dismantling
After removing two M 5 x 30 screws, lift off
the left-
hand clutch cover.

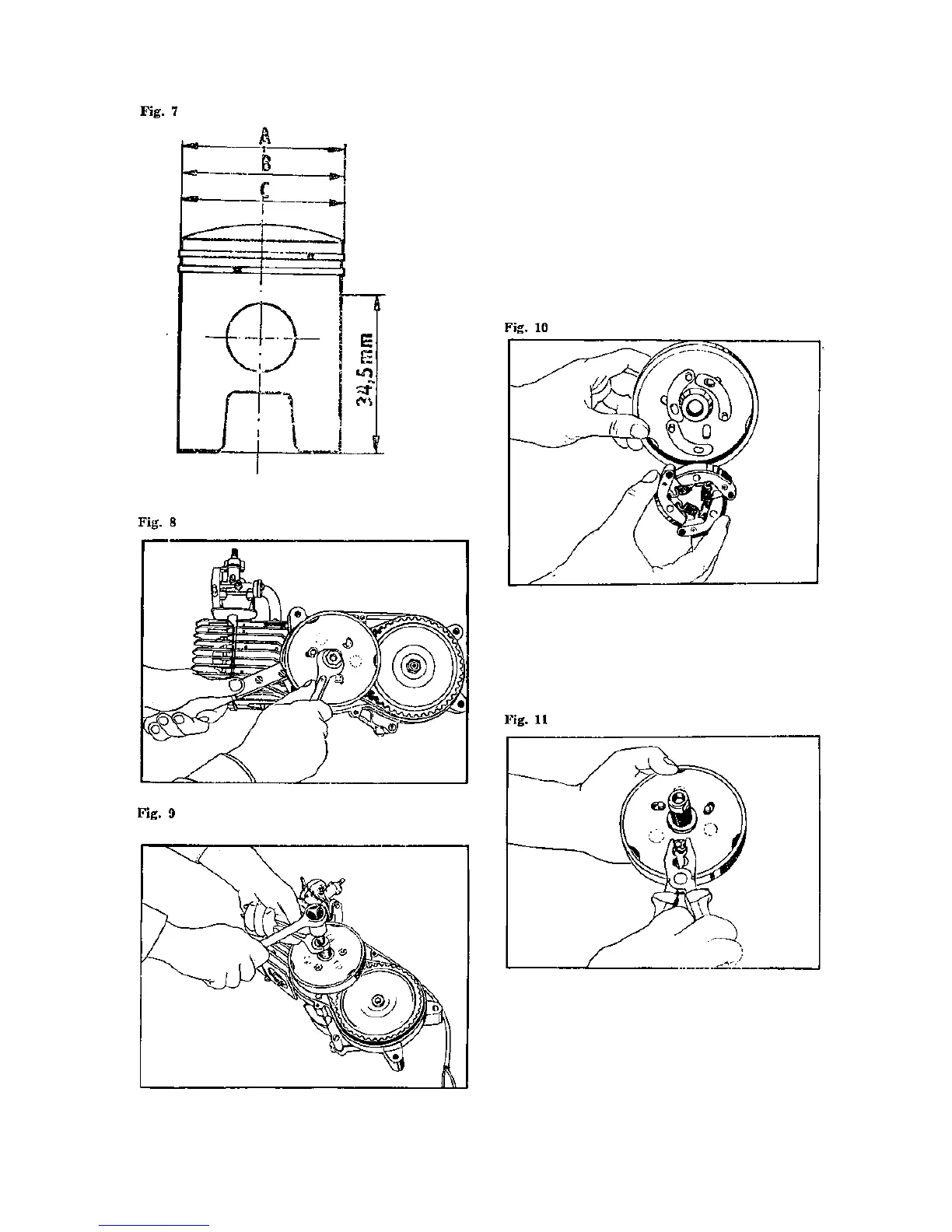

Using the clutch drum retaining jig No. 928-1000-1.5
retain the starting clutch drum and loosen
the nut with
the spanner No. 17 (Fig. 8). Pull off
the clutch drum
using the drag No. 4T 210-2200-01
(Fig. 9). With a
screwdriver remove three circlips
from the recesses to
loosen the clutch starting shoes (Fig. 10)
For re-assembly use the washer No. 4T 210-2100 and clutch
drum drag No. 4T 210-2200-01 and secure the clutch with the
circlips (Fig. 11).
After having removed the drum with starting shoes,
rotate and gently pull the starting drum
with the sma11
pulley to remove it together with the indented belt.
Work carefully so as not to damage the needle bearings
and washers.
