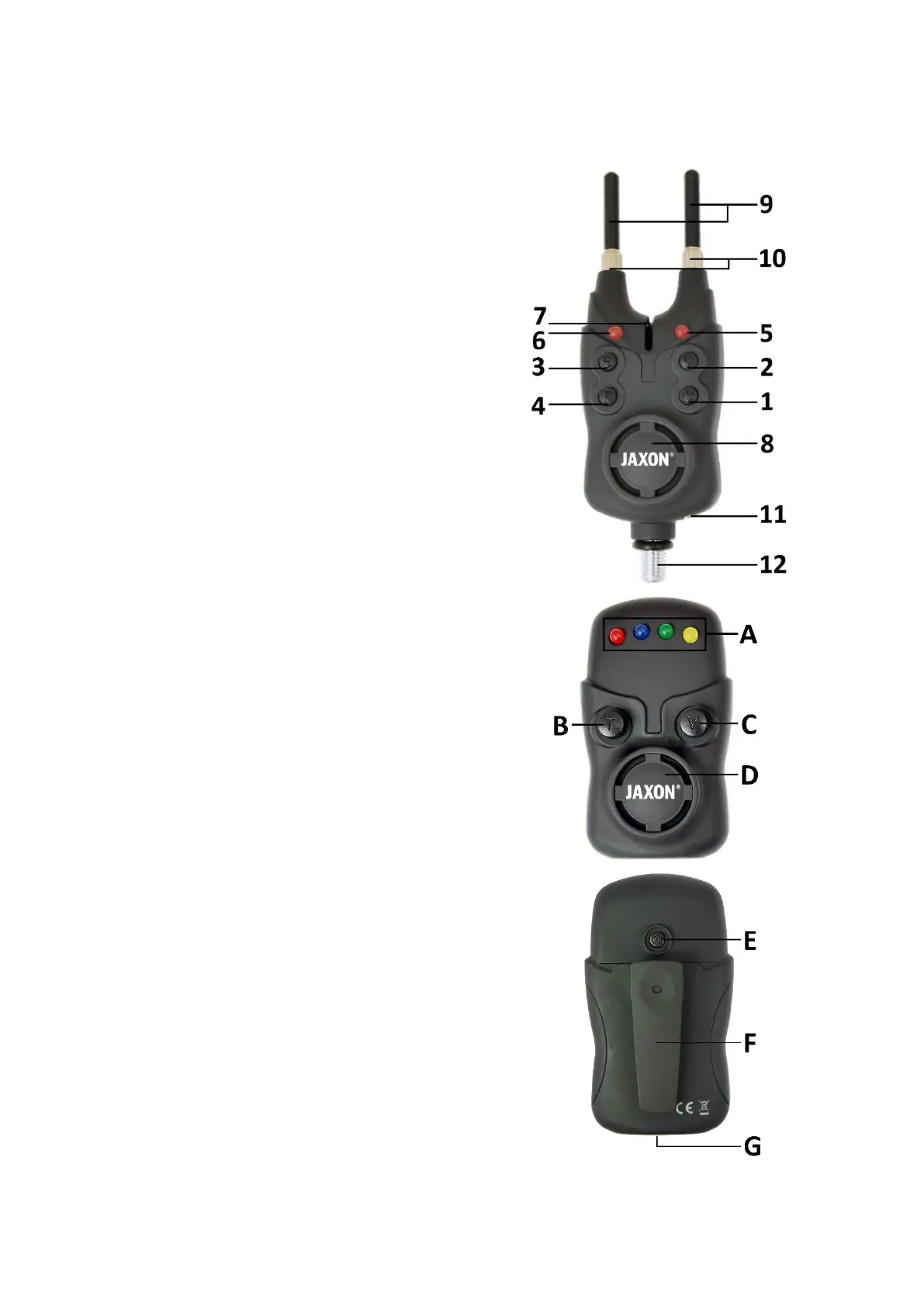

BITE ALARM AND RECEIVER KEY FUNCTIONS

1 - ON/OFF

2 - volume control

3 - sensitivity control

4 - tone control

5 - LED bite indicator

6 - LED night mode

7 - roller-bite indicator

8 - speaker

9 - snag bars

10 - snag bar mounting screws

11 - illuminated indicator plug

12 - mounting screw

A - LED

B - tone control

C - vol control/vibes mode

D - speaker

E - setup button

F - belt clip

G - opening batter cover here
