103721 Rev. E
11
ENGLISH
ACCESSORIES
SPINE ALIGN POSITIONING
COMPONENTS
Spine Align Positioning Components are designed to provide inti-
mately shaped support within an “off-the-shelf” back. (Depending
o
n your market, Spine Align components may be included with your
back.) To install Spine Align please read the following directions.

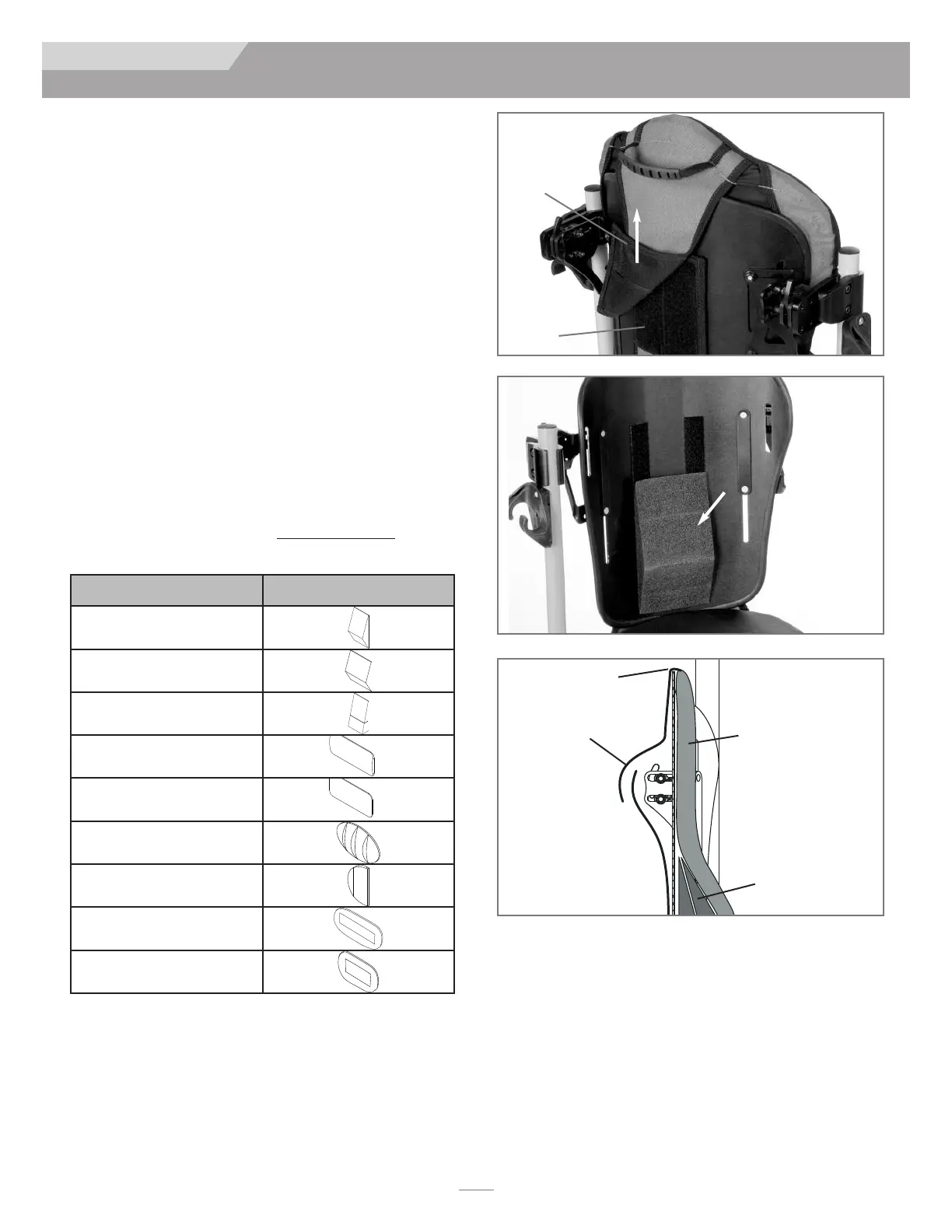

1. Spine Align Positioning Component Installation
a. Have the user remove pressure from the J3 Back by leaning
or sliding partially forward if possible.
b. Release Velcro strip on the top cover flap (Fig. 24) and lift
t
he cover forward to reveal the inside of the J3 Back.
c. Place the positioning component(s) on the Velcro inside of
the shell (Fig. 25) and reattach the top cover flap. Pull down
making certain that the top seam is aligned with the top of
the shell. If seam does not line up, the bottom of the cover
may need to be loosened (Fig. 26).
d. Have the user test the current Spine Align setup for comfort
and support and repeat steps a-c until adjustment is complete.
e. Multiple configurations and combinations of Spine Align com-
ponents can be used. If additional Spine Align shapes or sizes
are required, please contact your dealer or Sunrise Medical
at 800-333-4000.
NOTE– If you require further information on the J3 Spine Align system,
please review our animation at www.sunrisemedical.com.
Installation of the J3 back is complete.
J3 ACCESSORIES
If you have ordered J3 accessories such as laterals, headrests or
harnesses please consult the installation instructions related to
those items.
Positioning Components
Large Lumbar
Small Lumbar
Wedge
Curved Shim
Flat Shim
Posterior/Lateral Pelvic
Lateral Shim
Large Bean Bag
Small Bean Bag
Figure 24
Figure 25
Figure 26
Velcro
Top cover
f
lap
Top cover flap
Top seam
Cover
Spine Align
components
