and firmly. Remote control is possible within about 5m (approx. 16FT). However, since
the remote control range is less when the unit is used at an angle, use directly in front
of the remote sensor, as far as possible.
• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting) and
make sure that there are no obstacles between the remote sensor and the remote
control unit.

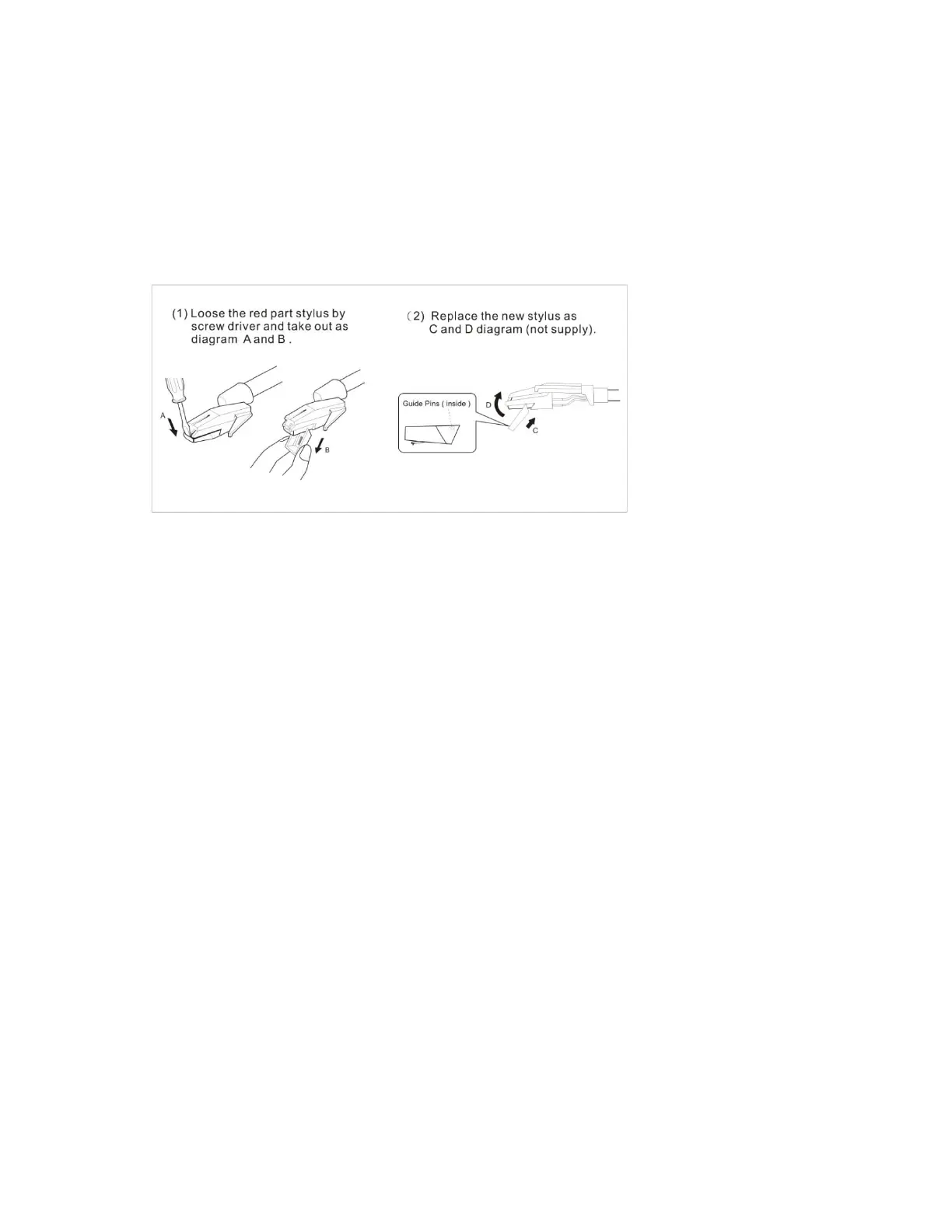

THE STYLUS REPLACEMENT
THE ABOVE DIAGRAM IS SHOWN HOW TO REPLACE A STYLUS AND FOR REFERENCE ONLY.
NO EXTRA STYLUS IS SUPPLIED WITH THE UNIT.
SPECIFICATIONS
Power Supply
AC: 240V ~ 50Hz
Power consumption: 18 W
Radio Frequency Coverage
FM: 87.5 - 108 MHz
AM: 525 – 1620 KHz
